Luggage Rack/q235/for Sprinter RV Conversion: Key Facts and Tips

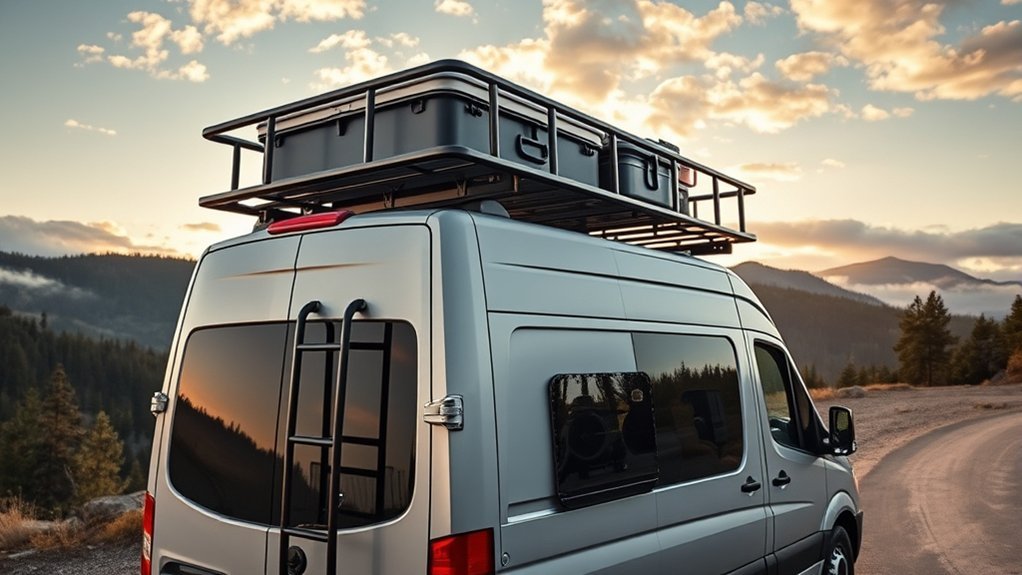

A Sprinter RV conversion luggage rack gives you extra storage space, but choosing the wrong system can cause roof damage, blocked ventilation, or unsafe loading. Before buying, you need to match the rack to your van’s body length, roof configuration, mounting rails, and planned accessories. Material and advertised carrying capacity matter, but the vehicle’s actual roof-load limit is just as important.

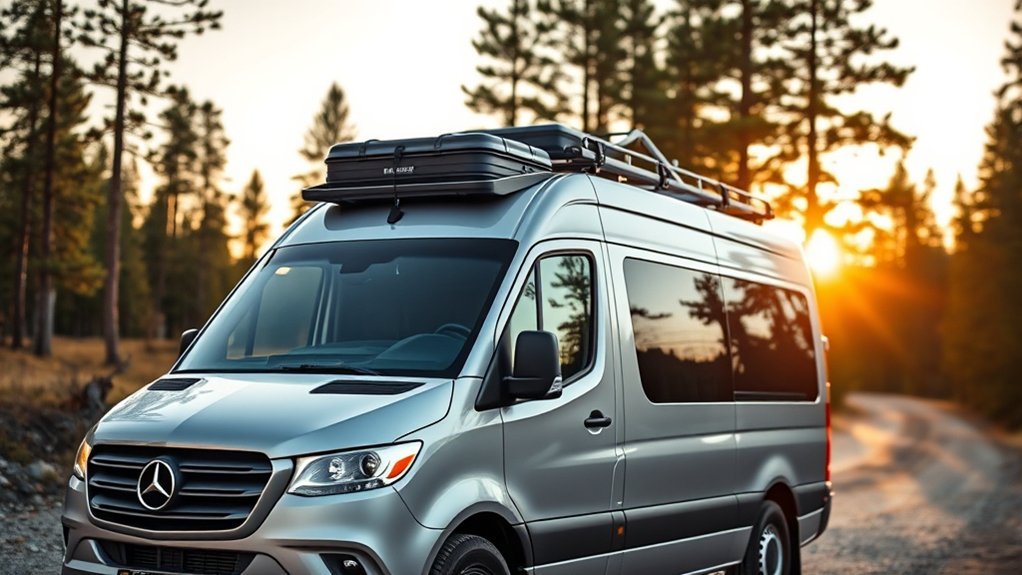

How to Choose a Sprinter Luggage Rack

A suitable Sprinter luggage rack must fit your vehicle, support the intended equipment, and provide secure mounting points. Start with compatibility and load limits before comparing materials, appearance, or accessory options.

Use these five criteria to narrow your choices:

• Vehicle compatibility: Confirm the model year, wheelbase, roof height, body style, and factory roof-rail configuration.
• Load capacity: Compare the rack’s rating with the van’s permissible roof load and the mounting hardware’s rating.
• Construction: Consider aluminum, Q235 steel, or stainless steel according to weight, corrosion exposure, and maintenance needs.
• Modularity: Look for adjustable crossbars, T-slot channels, and compatible brackets for awnings, solar panels, and other equipment.
• Cargo security: Choose accessible, rated attachment points for straps and equipment-specific mounts.

A dependable rack is one that fits the vehicle, supports the complete intended load, and keeps every item secure during travel.

Think about future additions before choosing the layout. A rack that fits today’s cargo box may need a different crossbar arrangement when you add solar panels or an air-conditioning unit.

Low-profile designs can help limit unnecessary height and wind exposure. However, they still need enough clearance for moving fan lids, brackets, wiring, and service access.

Pick the Right Sprinter Rack Size

The correct rack size depends on the Sprinter’s body length and usable roof area, not just the vehicle’s advertised wheelbase. Measure the roof and mounting rails before ordering, especially if the van already has conversion equipment installed.

Record the rack’s overall length, width, installed height, and usable mounting area. Also account for roof curvature, equipment overhang, and the space required to reach accessories for maintenance.

Match Roof Length

Sprinter rack manufacturers commonly offer separate configurations for the 144-inch wheelbase, 170-inch wheelbase, and 170-inch extended body. These measurements identify vehicle configurations; they are not the actual length of the roof rack.

For example, the Flatline Van Co. Low Pro rack for the 144-inch high-roof Sprinter uses six adjustable crossbars and has a listed rack weight of 51 pounds. Its fitment specifications identify the compatible Sprinter configuration.

Before purchasing:

• Confirm whether your van is a 144, 170, or 170 extended configuration.
• Match the rack to the correct roof height and body style.
• Measure the distance between available mounting locations.
• Check whether the rack requires factory roof rails or supports an approved aftermarket system.
• Verify clearance around existing vents, antennas, air-conditioning units, and roof openings.

A shorter rack can work when you need only a small cargo area. However, its allowable load may be lower because fewer supports distribute weight across the roof.

Clear Fans And Solar

Fans and solar panels should be included in the roof layout before you select the rack. Their installed dimensions often determine where crossbars can go.

Measure the fan in both closed and fully open positions. Include its lid, surrounding flange, and any rearward overhang.

Next, mark the intended solar-panel footprint, mounting brackets, cable entry, and maintenance access. Leave enough space to remove or service components without dismantling the entire rack.

A modular system makes adjustments easier. The Aluminess Recon Modular Roof Rack offers removable crossbars and separate sizes for different Sprinter body configurations.

Aluminum construction also helps reduce the permanent weight added to the roof, leaving more of the permitted load available for equipment.

Balance Width And Weight

Rack width should provide enough room for your equipment without creating unnecessary overhang or interfering with vehicle operation. Do not assume that extending a rack beyond the body is acceptable simply because the mirrors are wider.

Consider the rack’s external width, usable internal width, side-rail height, and accessory mounting positions.

• Keep the installed assembly within applicable vehicle-dimension limits.
• Check clearance around doors, awnings, ladders, and nearby accessories.
• Account for the rack’s own weight before calculating available cargo capacity.
• Position heavier equipment as low and close to the vehicle’s centerline as practical.
• Use properly spaced supports to reduce concentrated loads.

Remember that roof equipment raises the vehicle’s center of gravity. A larger rack does not automatically provide more safe carrying capacity.

Choose OEM Sprinter Mounting Points

Factory roof mounting locations and compatible roof rails provide the intended attachment route for a Sprinter luggage rack. Using them avoids unnecessary drilling and helps transfer loads through the vehicle’s designed mounting structure.

Mercedes-Benz recommends using the appropriate roof rails and mounting provisions in its Sprinter Body and Equipment Guidelines. These guidelines also address technical limits for vehicle modifications.

Check whether your van has factory roof rails before choosing a rack. A system designed for those rails may not fit a van without them unless an approved retrofit kit is installed.

Use the installation hardware specified by the rack manufacturer. This includes the correct sliding blocks, brackets, washers, fasteners, and attachment positions.

Incorrect drilling or poorly installed hardware can damage roof panels and create water leaks. It may also concentrate loads in areas not intended to support them.

Once installed, inspect the attachment points for movement, corrosion, damaged seals, and water intrusion. A properly fitted rack should remain stable without deforming the mounting rails or roof.

Match the Rack to Fans and Solar

A Sprinter roof rack must work around existing ventilation and electrical equipment. The most practical layout preserves full fan movement, minimizes solar shading, and keeps equipment accessible for service.

Crossbar spacing, mounting channels, and side-rail height determine how easily everything fits together.

Fan Clearance Planning

Measure the complete operating envelope of each roof fan before finalizing crossbar positions. A MaxxAir-style unit needs clearance around its lid, housing, and ventilation openings.

Follow the manufacturer’s installation orientation. According to MaxxAir’s technical guidance, the MAXXFAN Deluxe must be installed with its rain-shield section facing the rear of the RV.

Use this clearance checklist:

• Measure the fan’s closed height and fully opened height.
• Check its overall housing width and rearward projection.
• Position crossbars outside the lid’s opening path.
• Leave access for cleaning the fan and inspecting its roof seal.
• Check that cargo cannot shift into the fan during braking or rough travel.

A custom rack should also remain clear of the fan under its permitted cargo load. Structural deflection must not cause a crossbar or stored item to contact the lid.

After installation, operate the fan through its full opening range and inspect the surrounding clearance before loading the rack.

Solar Panel Compatibility

Solar panels need mounting space, secure brackets, and adequate clearance from nearby roof equipment. Plan their position alongside the rack rather than trying to fit them into whatever space remains.

Panels such as the 165W NewPowa units mentioned in the original layout should be positioned using their actual dimensions and mounting-hole locations. Confirm those specifications for the exact product version.

Keep panels clear of avoidable shadows from fans, roof rails, air-conditioning units, and other equipment. The U.S. Department of Energy’s photovoltaic design guidance identifies partial shading as a source of reduced solar energy production.

T-slot systems simplify mounting adjustments. The Yakima LockNLoad platform has integrated T-slots in its slats and frame for compatible accessories.

However, a universal platform does not automatically fit the Sprinter’s factory rails. The complete platform, mounting kit, and vehicle combination must be compatible.

Secure solar-panel brackets using the hardware and tightening specifications approved by the panel and rack manufacturers. Route cables away from sharp edges and moving fan components.

Include the panels, brackets, wiring supports, and other rack-mounted equipment in your total roof-load calculation.

Check Sprinter Rack Load Limits

The maximum load for a Sprinter RV conversion luggage rack is determined by the lowest applicable rating among the vehicle roof, rack, mounting system, and accessories. A rack advertised to carry more weight does not increase the vehicle’s approved roof capacity.

Mercedes-Benz’s published Sprinter roof-load specifications provide useful examples. The manufacturer’s 2013 operator’s manual gives the following limits for vehicles covered by that edition:

• Standard roof: 660 pounds (300 kg), using at least six pairs of supports.
• High roof: 330 pounds (150 kg), using at least three pairs of supports.
• Individual support pairs: Maximum 110 pounds (50 kg) per pair.

These values apply to an evenly distributed load across the roof. Mercedes-Benz also instructs owners to reduce the load proportionately when using shorter roof carriers. See the Mercedes-Benz operator’s manual, roof-carrier specifications.

These figures are documented examples, not a universal approval for every Sprinter model year or conversion. Your vehicle’s applicable documentation and the complete rack system’s rating determine the permitted load.

Calculate Your Available Cargo Capacity

Start with the lowest permitted system load. Then subtract the weight of everything permanently or temporarily carried by that system.

Include:

• The complete luggage rack and mounting hardware.
• Crossbars, decking, and cargo platforms.
• Solar panels and their mounting brackets.
• Cargo boxes, recovery equipment, tools, and other stored items.
• Additional rack-supported accessories and their attachment hardware.

For example, a high-roof Sprinter with a confirmed 330-pound roof limit and the 51-pound Flatline rack discussed earlier would have 279 pounds remaining before subtracting any other roof-mounted equipment or cargo.

This example assumes that the vehicle, rack, and mounting system permit the arrangement. A lower component rating would reduce the available capacity.

Also respect the vehicle’s gross vehicle weight rating and axle ratings. A roof load that meets the roof limit can still contribute to an overloaded vehicle.

The distinction between ratings is explained in Yakima’s roof-load guidance, which also describes dynamic, static, and off-road loading.

Keep heavy equipment centered and distribute the remaining load across the intended support points. Avoid concentrating all the cargo at one end of the rack.

Compare Q235 Steel vs. Aluminum Racks

Q235 steel and aluminum offer different advantages for a Sprinter luggage rack. Q235 is a structural carbon-steel grade commonly used in fabricated components, while aluminum offers a lighter alternative with good natural corrosion resistance.

Neither material guarantees a higher carrying capacity on its own. The rack’s engineering, section dimensions, joints, mounting hardware, and tested rating determine its actual performance.

When Q235 Steel Makes Sense

Q235 steel can suit a custom rack when fabrication cost, welding access, and repairability are priorities. It is practical for builders who have access to suitable metalworking equipment and can produce a properly engineered mounting system.

Its main drawbacks are additional mass and the need for corrosion protection. Pay particular attention to welds, exposed edges, scratches, and areas where moisture can collect.

Do not assume a heavier steel rack is automatically stronger or safer than an aluminum design.

When Aluminum Makes Sense

Aluminum is useful when reducing permanent roof weight is a priority. It also offers good corrosion resistance, making it attractive for campers used in wet or coastal conditions.

Modular aluminum extrusion systems provide flexible mounting channels and adjustable crossbars. They can simplify changes to solar layouts, cargo mounts, and roof accessories.

However, aluminum still requires properly designed joints, brackets, and fasteners. Its rated capacity must be verified just like that of a steel rack.

Stainless steel is another option, particularly for hardware and corrosion-resistant components. Its cost and weight should be considered when specifying a complete rack.

Choose the material based on the installed system’s weight, engineering, maintenance requirements, fabrication capability, and intended use.

Secure the Rack and Your Cargo

Correct installation is essential for safe roof storage. Even a rack with adequate rated capacity can become dangerous if its mounting hardware or cargo restraints are unsuitable.

Use the vehicle and rack manufacturers’ installation instructions rather than a universal tightening value. Different fasteners and mounting systems can require different procedures.

Installation and Loading Steps

1. Inspect the mounting rails. Check for damage, corrosion, loose components, and debris that could prevent the hardware from seating correctly.
2. Position the rack. Align its mounting points and supports according to the approved installation layout.
3. Install the specified hardware. Use the correct brackets, sliding blocks, washers, and fasteners.
4. Tighten the fasteners. Follow the rack manufacturer’s tightening sequence and torque specifications.
5. Check equipment clearance. Confirm that fans, solar panels, ladders, doors, and awnings operate without interference.
6. Secure the cargo. Use properly rated straps and attachment points suited to each item’s shape and weight.
7. Inspect the completed installation. Check for movement, loose hardware, and any contact between equipment before driving.

Secure each item independently where practical, distribute weight across the intended supports, and inspect the complete rack before travel.

Ratchet straps and other tie-downs must suit the cargo and attachment points. Replace restraints that show cuts, damaged stitching, corrosion, or defective locking mechanisms.

Use weather-resistant rack finishes and appropriate cargo covers to protect equipment from sunlight and moisture. Covers must also be secured so they cannot loosen in the wind.

Recheck rack fasteners after the initial installation period and at the intervals specified by the manufacturer. Inspect straps and cargo security before each trip and after demanding road conditions.

Also watch for unusual wind noise, movement, water leaks, or changes in handling. Stop and inspect the installation if any of these symptoms appear.

Frequently Asked Questions

What Is the Best Roof Rack for a Mercedes Sprinter?

The right roof rack depends on your Sprinter’s configuration, intended load, and rooftop equipment. Aluminess, Flatline Van Co., and Roambuilt offer Sprinter-oriented systems, while Yakima LockNLoad provides modular platform options. Compare complete-system compatibility, installed weight, manufacturer ratings, and available mounting accessories rather than choosing by advertised capacity alone.

What Are the Common Problems With Sprinter Van Conversions?

Common conversion problems include budget overruns, installation delays, poor interior layouts, unsuitable insulation, and undersized electrical systems. Roof-related problems include leaks, excess weight, blocked fans, and incompatible mounting hardware. Planning the complete layout and calculating vehicle weight before installation can help prevent these issues.

Which Mercedes Sprinter Van Is Best for Conversion?

The 144-inch high-roof Sprinter offers a useful balance of maneuverability, standing room, and camper functionality. The 170-inch and extended configurations provide more space for larger interior layouts and equipment. Your choice should reflect passenger needs, storage requirements, parking conditions, conversion costs, and the weight of the finished build.

What Are the Key Features of a Sprinter Van Camper?

Useful features include an efficient interior layout, suitable insulation, a properly sized electrical system, ventilation, and secure storage. Modular supports, A-frame structures where appropriate, L-track mounting, and integrated wiring can improve flexibility. Exterior accessories should be planned alongside the interior to keep the completed vehicle within its weight limits.

How Much Weight Can a Sprinter High-Roof Rack Carry?

Mercedes-Benz has published a 330-pound (150 kg) high-roof load limit for Sprinter configurations covered by its documented specifications. The rack and all supported equipment count toward that limit. Your actual allowance depends on the applicable model-year documentation, support arrangement, rack rating, and mounting hardware.

Can You Install a Sprinter Roof Rack Without Drilling?

Yes, compatible roof racks can attach to existing factory roof rails without drilling additional mounting holes. The van must have the correct rails, and the rack must use an approved mounting arrangement. Vehicles without suitable rails may require a professionally installed retrofit system.

Conclusion

A suitable Sprinter luggage rack starts with correct vehicle fitment, approved mounting, and a verified load calculation. Q235 steel offers economical fabrication, while aluminum can reduce roof weight and corrosion concerns.

Measure your roof, map every accessory, and confirm the complete system’s load rating before ordering. A rack that fits properly and carries its load securely will serve your conversion more reliably than one selected by size or advertised capacity alone.
