10 Folding Welding Tables That Make the Most of Your Workshop Space

A folding welding table can give a small garage a real clamping surface without permanently giving up floor space. The best folding welding tables balance usable work area, stable legs, fixture access, and a folded shape you can actually store.

WORKESS WB065 Folding Welding Table is our best overall pick because it combines a 1,000 lb listed capacity with seven-level height adjustment and a folding steel design. For a smaller budget-friendly setup, the VEVOR 30×20 Foldable Welding Table adds wheels, five height positions, and three tilt angles.

We checked exact linked models against current Amazon listings and manufacturer specifications, then compared work surface, listed capacity, clamping features, adjustability, storage, and product status.

Folding Welding Tables Compared

Folding Welding Tables: Our Top Picks

Bottom line: A compact folding welding table with wheels, height adjustment, and three tilt positions. It is the best fit here for small shops that need flexibility without a permanent bench.

• Work surface: 30 x 20 in, compact for tight shops
• Load capacity: 400 lb, suited to routine portable-table work
• Height/setup: 5 levels, 26.2–35.6 in, adjusts for sitting or standing
• Fixturing: three 1.1 x 22 in slots, gives long clamp access
• Weight: 34.8 lb, easier to move than heavier benches

The VEVOR 30×20 Foldable Welding Table combines a small footprint with useful positioning options. The top can sit flat, tilt to 30°, or move to 90°, which helps when access matters more than a broad work surface.

Its long clamp slots, five height positions, two wheels, and folding frame make it practical for tack work, repairs, and small assemblies. The trade-off is simple: the 30 x 20-inch top gives up workspace compared with the 42- to 46-inch tables in this roundup.

Use Cases

Bottom line: A wider folding table with a high listed capacity and built-in tool organization. Choose it when you need more room than a compact 30 x 20-inch table but still need fold-away storage.

• Work surface: 42 x 21 in, more room for medium-size assemblies
• Load capacity: 1,000 lb, high listed capacity for a folding table
• Height/setup: folding, height-adjustable frame, supports different working positions
• Fixturing: 0.7 in holes, tool slots, two bar clamps, adds built-in holding options

The Goplus 42×21 Portable Welding Table gives you a 42 x 21-inch work area, a 1,000 lb listed capacity, and a folding height-adjustable frame. The current listing also identifies 0.7-inch holes, eight tool slots, a handle, and two bar clamps.

That layout suits garage fabrication where a 30-inch top feels cramped. You get more room for clamping and assembly, but the larger format takes more wall or floor space when stored than the smallest folding options.

Use Cases

Bottom line: The strongest all-around choice here for buyers who want a high-capacity folding table with broad height adjustment and a fixture-friendly top. It balances work space and storage better than the compact picks.

• Work surface: large folding steel top, gives more room than compact models
• Load capacity: 1,000 lb, high listed capacity for portable work
• Height/setup: 7-level height adjustment, offers a broad working-height range
• Fixturing: tabletop holes and slots, supports clamps and simple fixtures

The WORKESS WB065 Folding Welding Table is built around a 1,000 lb listed capacity, heavy-duty steel construction, and seven height settings. Its folding design makes it easier to reclaim garage space after a project.

The top includes holes and slots for clamps and fixtures, which is more useful for repeatable setups than a plain workbench surface. Its main limitation is the same one shared by portable tables: it is designed around storage and mobility rather than the mass and flatness of a permanent fixture table.

Use Cases

Bottom line: Strong Hand Tools lists the Nomad TS3020 as discontinued, so it is not a current recommendation. Its compact, tilting, wheeled design still explains why existing owners may use it for mobile or hobby work.

• Work surface: 30 x 20 in, compact for mobile or hobby work
• Load capacity: 350 lb, manufacturer-listed limit
• Height/setup: 26–32 in with tilt positions, adjusts height and work angle
• Fixturing: 1.1 in tabletop slots, supports clamping along the slots
• Weight: 44 lb, portable but not ultra-light

The Strong Hand Tools Nomad TS3020 has a 30 x 20-inch top, a 350 lb manufacturer-listed load capacity, and a 26–32-inch height range. The tabletop slots, retractable guide rails, wheels, and leveling foot are useful portable-table features.

The manufacturer now marks this model discontinued. That status is the deciding factor: the design remains relevant to current owners, but buyers comparing new folding welding tables should choose one of the verified current models in this guide.

Use Cases

Bottom line: A compact, wheeled folding table that puts mobility and angle adjustment ahead of maximum capacity. It suits garage repair work where you often roll the table out and store it again.

• Work surface: 30 x 20 in, compact enough for crowded garages
• Load capacity: 350 lb, fits light-to-medium portable-table work
• Height/setup: adjustable, tilting, fold-flat, adds position and storage flexibility
• Fixturing: slotted zinc-plated top, accepts clamps at multiple positions

The Olympia Tools 30×20 Adjustable Welding Table uses a 30 x 20-inch format with a 350 lb listed capacity. Its zinc-plated slotted top can tilt and fold flat, while wheels and a handle make it easier to reposition.

The smaller top is easier to manage in shared garages, but it gives you less room for broad assemblies. Pick it for portability and positioning rather than for the heaviest work in this comparison.

Use Cases

Bottom line: A useful middle ground between compact 30 x 20-inch tables and the highest-capacity models. It gives you a longer work surface, four height settings, and a clear 16 mm fixture-hole system.

• Work surface: 44 x 21 in, gives room for longer assemblies
• Load capacity: 500 lb, covers many garage fabrication tasks
• Height/setup: 4 levels, 29.5–36.5 in, supports different working heights
• Fixturing: 0.63 in holes and six tool slots, adds repeatable clamping points
• Weight: 41.9 lb, still manageable for portable use

The VEVOR 44×21 Foldable Welding Table has a 44 x 21-inch top, 500 lb listed capacity, and four height levels from 29.5 to 36.5 inches. Its 0.63-inch fixture holes are 16 mm, which matters if you are matching clamps and stops.

Six tool slots help keep frequently used items close, and the foldable legs make the longer table easier to store. It is a better fit than the 30-inch VEVOR when workspace matters more than minimum folded size.

Use Cases

Bottom line: A brand-name portable table aimed at buyers who care most about fixture access and a plated 12-gauge top. Its 200+ mounting holes and slots give it the most explicitly documented fixturing layout here.

• Work surface: 44 x 21 in, 12-gauge plated top, gives a long, durable work area
• Load capacity: 500 lb, manufacturer-listed capacity
• Height/setup: 26.5–37 in, double-locking legs, adds a wide height range
• Fixturing: 200+ mounting holes and slots, offers many clamp locations

The Lincoln Electric K5334-1 Portable Welding Table uses a 44 x 21-inch work surface. Lincoln lists a 12-gauge plated top, a 500 lb capacity, and height adjustment from 26.5 to 37 inches.

The big differentiator is fixturing: Lincoln specifies more than 200 mounting holes and slots for tools and optional clamps. Double-locking legs support portable setup and storage, though buyers focused only on maximum listed load can find 1,000 lb options elsewhere in this roundup.

Use Cases

Bottom line: The most feature-rich portable pick in the group. DEWALT combines a 1,000 lb evenly distributed capacity with double-locking legs, a grounding stud, and a base that works on a bench or as a stand-alone table.

• Work surface: 18 x 46 in, long and narrow for compact setups
• Load capacity: 1,000 lb evenly distributed, high manufacturer-listed capacity
• Height/setup: 8 in folded riser to 36 in stand-alone, works on a bench or on its legs
• Fixturing: 3/4 in holes and slots, supports common clamping positions

The DEWALT DXMF4618WT Adjustable Welding Table has an 18 x 46-inch steel top with 3/4-inch holes and slots. DEWALT rates it for 1,000 lb evenly distributed and uses two locking systems on the folding legs.

A grounding stud, cord minder, tool-holding ring, and convertible base make setup easier for welding work. The catch is shape: its long 18-inch width is narrower than 21-inch tables, so broad assemblies may fit better on WORKESS, Goplus, or VEVOR 44×21.

Use Cases

Bottom line: A straightforward steel folding table for buyers who want a simple work surface from an established welding brand. Hobart emphasizes welded legs and base construction, portability, and easy storage.

• Work surface: 35 x 19.5 in, practical size for repairs and shop projects
• Height/setup: portable folding design with welded legs/base, keeps the structure simple
• Weight: 47.5 lb, substantial but still portable

The Hobart 770786 Portable Folding Welding Table measures 35 x 19.5 inches. Hobart describes a heavy-duty steel design with welded legs and a welded base, plus a 47.5 lb net weight.

This is the least feature-heavy approach in the roundup. It makes sense if you prefer a conventional folding work surface and do not need the dense fixture-hole patterns, tilt mechanisms, or accessory features found on some competitors.

Use Cases

Bottom line: A foldable steel workbench with a wider 23.8-inch top and a 1,000 lb listed capacity. It suits buyers who want a compact heavy-load layout with fixture holes rather than height or tilt adjustment.

• Work surface: 33.4 x 23.8 in, wider than many narrow portable tops
• Load capacity: 1,000 lb, high listed capacity
• Height/setup: folding steel workbench, stores flatter than a fixed bench
• Fixturing: fixture holes, supports clamp-and-jig setups

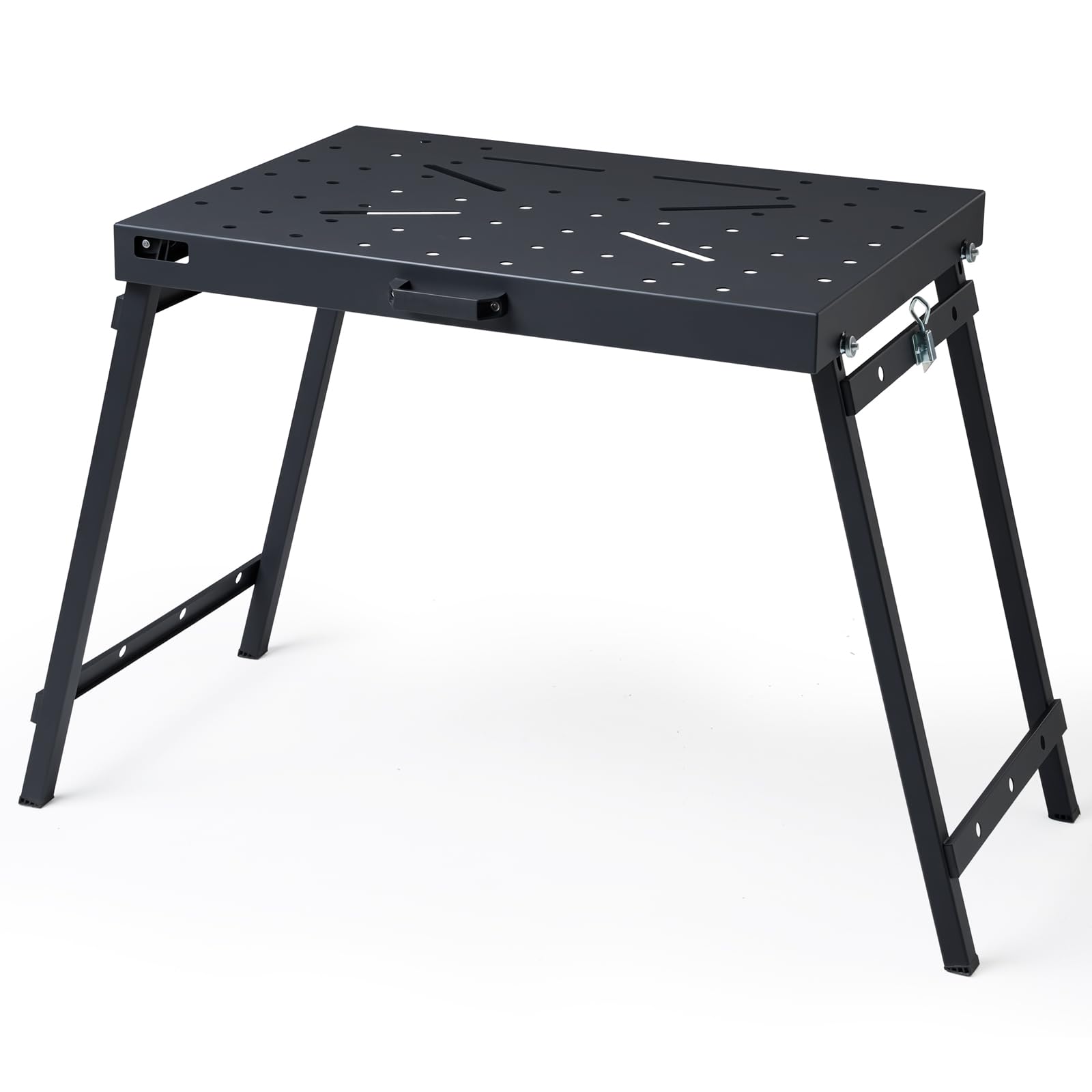

The OLBRUS Foldable Welding Table is listed with a 33.4 x 23.8-inch work surface, 1,000 lb capacity, steel construction, and fixture holes. That width gives it more front-to-back room than the 18- to 21-inch-wide options.

Its appeal is the simple fold-flat workbench format. It is better suited to users who want capacity and surface area than to those who need a tilting top, rolling casters, or a wide range of height settings.

Use Cases

WORKESS WB065 vs VEVOR 30×20: Is the Upgrade Worth It?

The WORKESS WB065 is the better fit when capacity and broad height adjustment matter most. The VEVOR 30×20 gives up work area and capacity in exchange for a smaller footprint, wheels, and three tilt positions.

• Load capacity: WORKESS lists 1,000 lb, while the VEVOR 30×20 lists 400 lb.
• Adjustment: WORKESS uses seven height levels; VEVOR uses five height levels plus 0°, 30°, and 90° tilt positions.
• Storage and mobility: VEVOR is built around a compact 30 x 20-inch top with wheels; WORKESS favors a larger folding work surface.

Which Folding Welding Table Should You Buy?

• Best all-around garage setup: get the WORKESS WB065 Folding Welding Table.
• Small space and best value: get the VEVOR 30×20 Foldable Welding Table.
• Feature-rich premium setup: get the DEWALT DXMF4618WT Adjustable Welding Table.
• Fixture-heavy work: get the Lincoln Electric K5334-1 Portable Welding Table.
• Longer mid-size work surface: get the VEVOR 44×21 Foldable Welding Table.

How We Chose

• Exact-model verification: we matched each affiliate link to the model or variant it currently identifies.
• Workholding: we prioritized usable holes, slots, clamp access, and clearly documented fixture systems.
• Portability: we compared folding design, wheels, handles, height adjustment, and how much floor space each table can give back.
• Capacity and construction: we used manufacturer or current listing specifications rather than assuming that a heavier-looking table carries more.
• Source checks: we reviewed manufacturer specifications, current Amazon listings, and safety or recall records. We did not add owner-feedback boxes where cross-source trends were not strong enough.

Safe Setup and Use

Set a folding welding table on a flat, stable surface and engage every leg lock, pin, knob, or caster brake before starting. Keep the work area clear of combustible material, route leads where they will not create a trip hazard, and stay within the table maker’s listed capacity.

For electric welding, use a clean, reliable work-clamp connection. A dedicated grounding stud can simplify setup, but a coated tabletop may need a suitable conductive contact point. Recheck fasteners and locking parts after transport or folding, especially before a heavier assembly goes on the table.

How to Choose a Folding Welding Table

Work Surface and Storage Footprint

A 30 x 20-inch table is easier to fit into a crowded garage, while a 42- to 46-inch-long top gives you more room for clamps and longer parts. Measure both your usual workpieces and the place where the folded table will live. For tight spaces, the VEVOR 30×20 Foldable Welding Table is the compact pick.

Listed Load Capacity

Load capacity should cover the workpiece plus fixtures, clamps, and tools. A 1,000 lb rating can be useful for heavier assemblies, but it does not turn a folding table into a precision fabrication plate. If higher listed capacity is a priority, compare the WORKESS WB065, Goplus 42×21, and DEWALT DXMF4618WT.

Fixture Holes, Slots, and Clamp Compatibility

Hole diameter and slot layout matter more than a large hole count if your clamps do not fit. The Lincoln table documents more than 200 mounting holes and slots, the DEWALT uses 3/4-inch holes and slots, and the VEVOR 44×21 uses 16 mm fixture holes. If fixturing drives your decision, the Lincoln Electric K5334-1 is the clearest fit.

Height and Tilt Adjustment

Height adjustment helps when several people share the table or when you alternate between seated and standing work. Tilt is different: it changes access to the joint itself. The VEVOR 30×20 is the strongest choice here when you want both height settings and multiple tabletop angles.

Portability, Wheels, and Leg Locks

Wheels make short moves around a garage easier, while a carry handle helps when the table leaves the shop. For heavier setups, pay close attention to the locking system. The DEWALT DXMF4618WT uses double-locking legs; the Olympia and compact VEVOR emphasize wheels and fold-flat storage.

Grounding and Tabletop Finish

A welding table must provide a dependable electrical path for the work clamp. Painted or plated surfaces can change where you get clean contact, so follow the table and welder instructions. The DEWALT DXMF4618WT stands out because the manufacturer documents a dedicated grounding stud.

Mistakes to Avoid When Buying Folding Welding Tables

• Buying by capacity alone: also check tabletop size, stability, and how your load will be distributed.
• Ignoring fixture compatibility: match hole diameter and slot layout to the clamps you plan to use.
• Forgetting folded storage: measure the wall, corner, or vehicle space before choosing a larger table.
• Assuming every coating grounds easily: plan a clean work-clamp point or use a documented grounding stud.
• Expecting fixture-table precision: choose a fixed heavy table when flatness and repeatable production setups are the main goal.

FAQs

What should you look for in a folding welding table for a small workshop?

Start with the work surface, folded footprint, load capacity, and clamping layout. A compact table is easier to store, while a longer top helps with larger assemblies. Check whether the holes or slots match your clamps, then compare height adjustment, tilt, wheels, leg locks, and grounding access. Portable tables are best when storage matters as much as workspace.

How much load capacity do you need in a folding welding table?

Choose a table whose listed capacity comfortably covers the workpiece, clamps, fixtures, and tools you place on it. Capacity is only one part of the decision because portable-table stability and top stiffness also matter. Do not treat a high load rating as proof that the tabletop is a precision fixture plate or that concentrated loads are acceptable.

Can a folding welding table replace a fixed fixture table?

Usually not for heavy forming, repeated high-heat production, or precision fixturing. Folding welding tables trade mass and permanent rigidity for portability and storage. They work well for repairs, tack-up, small fabrication, and temporary assembly stations. If flatness and repeatability are critical, a thicker fixed fixture table is the safer choice for that kind of work.

Are folding welding tables suitable for MIG, TIG, and stick welding?

Yes, a steel folding table can support common welding processes when it is stable, used within its listed limits, and grounded correctly. Lock the legs, level the table, keep combustibles away, and use a clean conductive grounding point. Painted or coated surfaces may require special attention so the work clamp makes reliable electrical contact.

What fixture-hole size should you choose?

Choose the hole size that matches the clamps, stops, and fixture accessories you already own or plan to buy. This roundup includes different systems, including 16 mm, 3/4-inch, 0.7-inch, and slotted tops. A higher hole count is not automatically better if your accessories do not fit, so check compatibility before you commit.

Is adjustable height or a tilting top more useful?

Adjustable height matters most if you switch between sitting, standing, or different users. A tilting top is more useful when you need better access to angled joints or awkward parts. The VEVOR 30×20 combines both ideas with five height levels and three tilt positions, while other tables focus more on capacity, fixturing, or simple folding storage.

How should you ground a welding table with a painted or plated surface?

Attach the work clamp where it can make clean, reliable electrical contact according to your welder and table instructions. Coatings can interfere with conductivity, so do not assume any painted or plated area is a good ground point. A table with a dedicated grounding stud, such as the DEWALT DXMF4618WT, simplifies that part of setup.

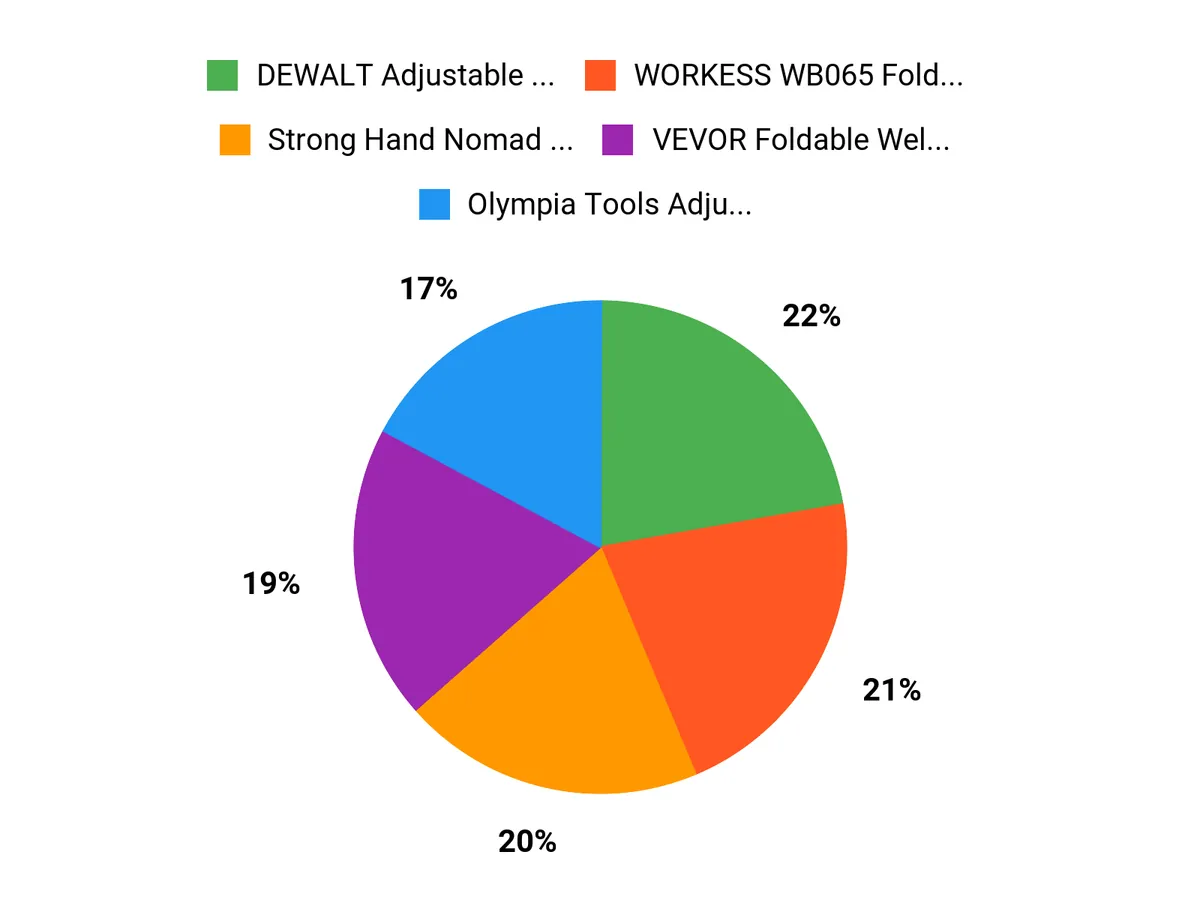

Buyers Top Picks

The current verified picks cover three main needs: compact storage, higher listed capacity, and more deliberate fixturing. Use the comparison table above to match the work surface and clamp system to the jobs you do most often.

Final Verdict

For most small-shop buyers, the best folding welding table is the one that gives enough work area and fixture access without becoming another permanent obstacle in the garage. WORKESS offers the strongest overall balance in this group.

Choose the VEVOR 30×20 Foldable Welding Table for the best value, or step up to the DEWALT DXMF4618WT Adjustable Welding Table for the premium feature set.
