Choosing the best spark plug wires for a Ford 302 starts with fitment, not wire thickness. The wrong distributor terminal, boot angle, or length can create installation problems even when the wire set itself is well made.
Our current top pick is the JDMSPEED New Red 10.5mm Racing Spark Plug Wires Set because its Ford 5.0L, 5.8L, and SBF 302 fitment plus Kevlar core and RFI suppression are clearly documented. For a lower-cost verified option, compare the JDMSPEED 10.2mm Spark Plug Wire Set.
We checked model identity, Ford fitment, ignition style, wire construction, current retail listings, and recall records before rebuilding these picks.
Ford 302 Spark Plug Wires Compared
| Product | Best for | Wire diameter | Ignition / fit |
|---|---|---|---|
| Legacy non-HEI Ford 260/289/302 fitment | 8 mm | Non-HEI; 135-degree plug boots | |
|
Budget
|
Best overall for compatible Ford small-block builds | 10.5 mm | Ford 5.0L/5.8L and SBF 302 applications |
|
Mid-range
|
HEI Ford 260/289/302 setups | 8 mm | HEI; 135-degree plug boots |
| Mustang and F-150 fitment checks | 10.5 mm | Verify year, engine, distributor, and terminals | |
|
Budget
|
Best value for compatible F-150 and Mustang builds | 10.2 mm | Ford 5.0L/5.8L and SBF 302 applications |
[Amazon Products Picked for You]
Features & Benefits - Extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. Conductor style: spiral core，distributor boot material: silicone, heavy duty 8.0mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals.
Country of Origin : China
AFTER MARKET HIGH PREMIUM QUALITY
Ford 302 Spark Plug Wires: Our Top Picks
[Amazon Products Picked for You]
Features & Benefits - Extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. Conductor style: spiral core, distributor boot material: silicone, heavy duty 8.0mm diameter silicone jacket to protect the Kevlar spiral wound core from heat,moisture and chemicals.
Features & Benefits - Extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. Conductor style: spiral core，distributor boot material: silicone, heavy duty 8.0mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals.
1. Moroso 52071 Ultra Series Red Spark Plug Wires
The Moroso 52071 Ultra Series Red Spark Plug Wires match Ford small-block 260, 289, and 302 applications that use non-HEI distributor terminals. Moroso specifies 135-degree plug boots, 8mm wire, and 350 ohms of resistance per foot.
The construction includes a stainless-nickel-alloy conductor around a conductive fiberglass core, a two-layer EPDM outer jacket, and silicone plug boots. Those details make this set easy to identify against look-alike Ford wire sets with different distributor ends.
This model stays in the article for fitment reference, but it is not included in the current recommended picks. If you already have this set or locate one elsewhere, verify that your distributor uses the non-HEI terminal style before installation.
- Custom fit for Ford 260, 289, and 302 small-block applications.
- 135-degree plug boots help with specific routing layouts.
- 8mm construction and 350-ohm-per-foot resistance are manufacturer documented.
- Non-HEI terminals will not suit an HEI distributor cap.
- Fixed 135-degree boots may not clear every header layout.
- The model is no longer one of our current recommended buys.
2. JDMSPEED New Red 10.5mm Racing Spark Plug Wires Set
Bottom line: The JDMSPEED New Red 10.5mm Racing Spark Plug Wires Set is the strongest verified all-around pick here for compatible Ford 5.0L, 5.8L, and SBF 302 applications. It pairs a thick silicone jacket with a Kevlar core and RFI suppression.
- Wire diameter: 10.5 mm, thicker than the 8mm Moroso sets.
- Ignition fit: Male-to-male terminals, confirm your distributor cap style.
- Applications: Ford 5.0L, 5.8L, SBF 302, including listed Mustang/F-150 uses.
- Construction: Kevlar core with high-temperature silicone boots and sleeve.
The main reason this set leads the verified picks is its combination of clearly documented construction and broad small-block Ford use. RFI suppression is useful when you want an ignition wire designed to limit electrical interference around the engine bay.
The 10.5mm diameter is also the biggest practical fitment question. A thicker wire may need different separators or more room than a stock loom provides. Measure your existing separators and check how the wires will pass around headers before ordering.
Fitment still matters more than the word “racing” in the product name. Match your distributor and coil terminals first, then confirm the listed vehicle and engine application.
- 10.5mm silicone wire construction.
- Kevlar core is documented for this exact model.
- RFI suppression is built into the wire design.
- Listed for Ford 5.0L, 5.8L, and SBF 302 applications.
- 10.5mm wires may not fit factory separators.
- Broad Ford fitment still requires terminal and routing checks.
- The thick red appearance is not factory-looking.

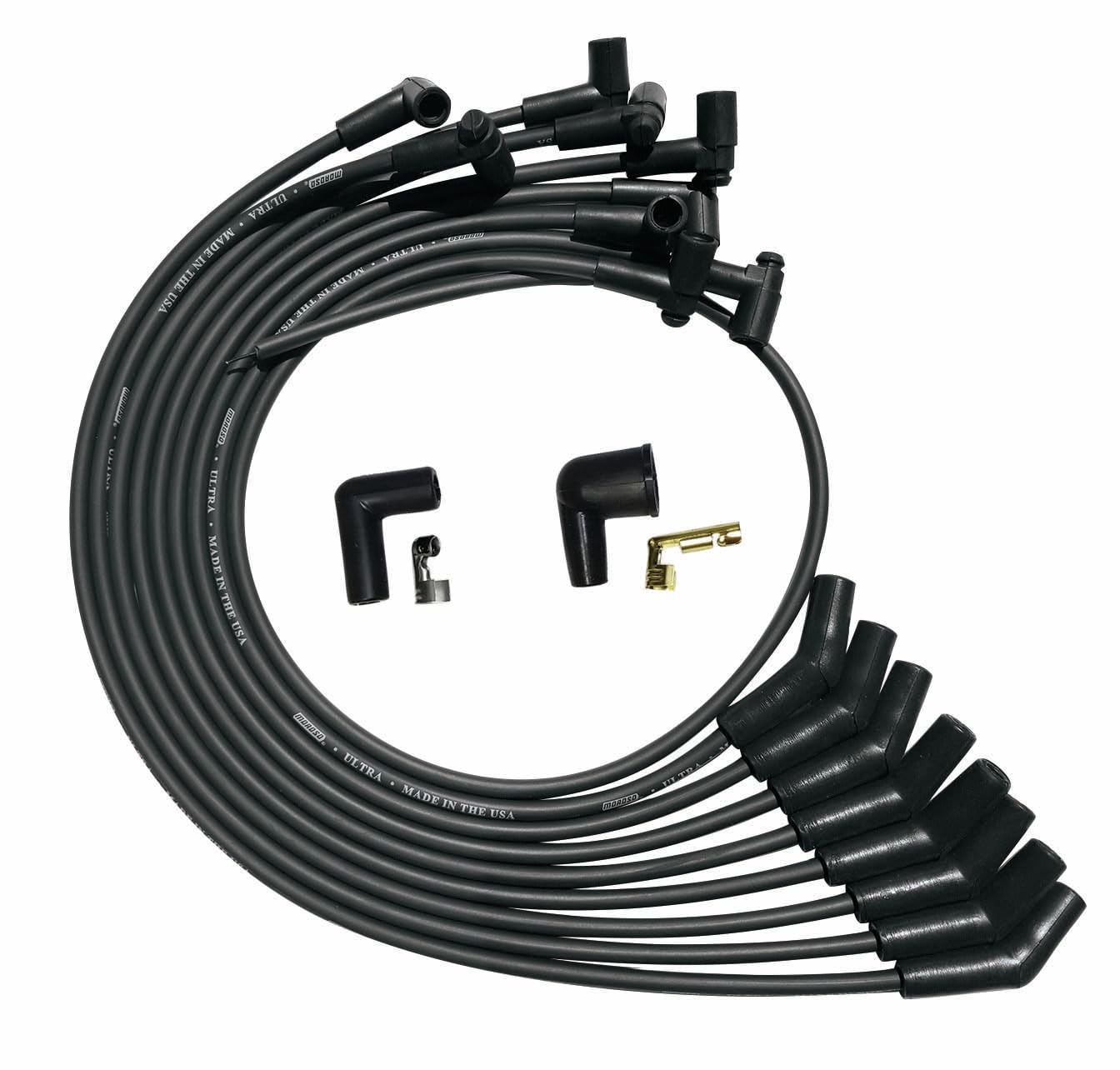

3. Moroso 51070 Ultra Series Black Spark Plug Wires
Bottom line: The Moroso 51070 Ultra Series Black Spark Plug Wires are the clearest verified choice here for Ford 260, 289, and 302 builds using an HEI-style distributor. The set uses 8mm wire, 135-degree plug boots, and a black unsleeved finish.
- Wire diameter: 8 mm, easier to fit in many traditional separators.
- Ignition fit: HEI distributor terminals, not the non-HEI 52071 style.
- Applications: Ford small-block 260, 289, and 302.
- Construction: 350 ohms per foot with EPDM jacket and silicone boots.
Moroso documents the conductor as stainless nickel alloy wire wound around a conductive, latex-coated fiberglass core. The outer jacket uses two high-heat EPDM layers with reinforcing tape between them, while silicone boots protect the plug ends.
The fixed 135-degree plug boots can help on engine bays that suit that angle, but they are not automatically right for every header. If your headers or plug access are unusual, compare the boot path with your current wires before you buy.
This set is more application-specific than the broad-fit JDMSPEED choices. That is useful when your Ford small-block already has an HEI distributor and you want a wire set built around that terminal style.
- Specific Ford 260, 289, and 302 HEI fitment.
- 135-degree plug boots are clearly specified.
- 8mm wire with documented 350-ohm-per-foot resistance.
- EPDM jacket and silicone boots are manufacturer documented.
- HEI terminals are wrong for non-HEI distributor caps.
- Fixed 135-degree boots may not suit every header layout.
- Black 8mm wires do not give the thick custom look of 10.5mm sets.

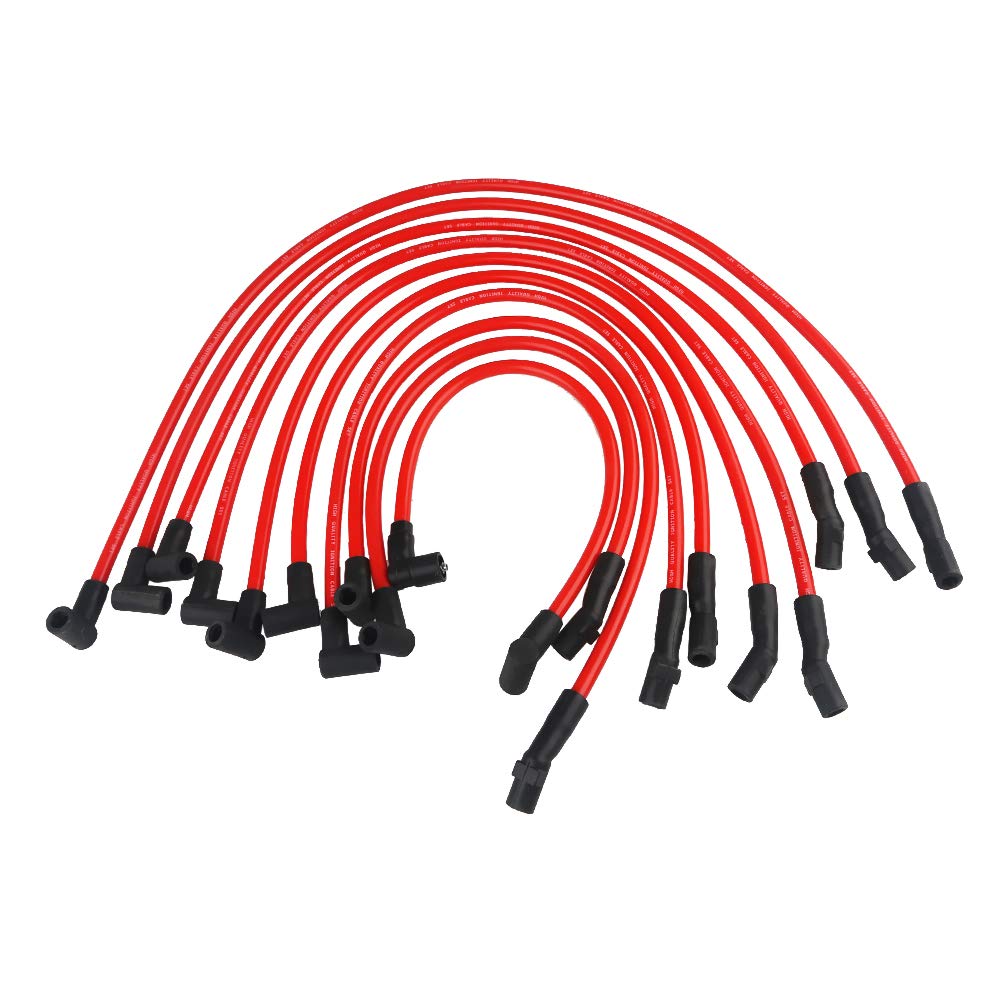

4. JDMON 10.5mm Spark Plug Wires
Bottom line: The JDMON 10.5mm Spark Plug Wires remain a broad-fit option for Ford 302, 5.0L, and 5.8L-style applications, including classic Mustang and older F-150 projects. Buy only after checking your exact year, engine, distributor, and terminal style.
- Wire diameter: 10.5 mm, a thick performance-style size.
- Ignition fit: Verify distributor and coil terminal style before ordering.
- Applications: Ford 302, 5.0L, and 5.8L-style projects in the source listing.
- Construction: Thick insulated wire design; exact linked-ASIN details need confirmation.
The original fitment copy points toward classic Mustang and F-150 use. That makes this set worth checking when you want a thick red replacement wire, but it is not a product to buy from engine displacement alone.
The 10.5mm diameter can also create a practical installation issue. Stock looms and separators designed around thinner wire may not have enough room, so check the existing wire holders before ordering.
We could not independently confirm the exact linked ASIN against a current authoritative product page, so the original fitment claims are left as-is rather than strengthened.
- 10.5mm wire diameter gives a thick custom look.
- Source fitment includes Ford 302, 5.0L, and 5.8L applications.
- Source fitment points to older Mustang and F-150 projects.
- Exact linked-ASIN specifications could not be independently verified.
- 10.5mm wires may not fit stock separators.
- Broad fitment requires more checking before purchase.
5. JDMSPEED 10.2mm Spark Plug Wire Set
Bottom line: The JDMSPEED 10.2mm Spark Plug Wire Set is the value pick for buyers who want a verified Ford F-150, Mustang, 5.0L, 5.8L, or SBF 302 replacement set with a slightly slimmer diameter than the 10.5mm JDMSPEED option.
- Wire diameter: 10.2 mm, slightly slimmer than the 10.5mm pick.
- Ignition fit: Verify distributor and coil terminals for your exact build.
- Applications: Listed Ford F-150, Mustang, 5.0L, 5.8L, and SBF 302 uses.
- Construction: Heat-resistant silicone sheath with RFI suppression.
Current retailer data for the exact linked ASIN lists a 10-wire set and heat-resistant silicone construction. RFI suppression is also listed, which is useful when you want replacement wires designed to reduce ignition-related electrical noise.
The slightly smaller diameter may be easier to route through some separators than a 10.5mm set, but it is still thicker than many factory-style wires. Measure the loom openings instead of assuming any performance-style diameter will fit.
As with every broad-fit Ford wire set, the engine size is only part of the match. Confirm the distributor cap, coil connection, and routing length before removing the old wires.
- 10.2mm diameter is slightly slimmer than the 10.5mm option.
- Exact linked ASIN is documented for Ford F-150 and Mustang applications.
- Heat-resistant silicone construction is listed.
- RFI suppression is listed for the set.
- Still thicker than many factory-style wire looms.
- Terminal style must be checked for the exact distributor and coil.
- Broad year ranges make vehicle-level fitment confirmation important.
JDMSPEED 10.5mm vs JDMSPEED 10.2mm: Is the Upgrade Worth It?
The main trade-off is wire diameter and documented construction. The 10.5mm set is the stronger all-around pick for buyers who want its Kevlar core, while the 10.2mm set costs less in the current market checks and may be a little easier to route.
- Diameter: 10.5mm is thicker; 10.2mm gives slightly more loom clearance.
- Core: The 10.5mm set specifically lists a Kevlar core.
- RFI control: Both verified sets list RFI suppression.
- Fitment: Both still require distributor, coil, year, and routing checks.
[Amazon Products Picked for You]
COMPATIBILITY: The 10.2mm spark plug wire set replacement for Ford F-150 1979-1995, Mustang 1964-1973 and 1979-1995; Replacement for Ford 5.0L 5.8L, SBF 302 Windsor
Brand New Racing BLUE 9mm Spark Plug/Ignition Wire Set Replacement for Ford Mustang 1964-1973 1979-1995; Ford F-150 1979-1995. Replacement for Ford 5.0L 5.8L, SBF 302 Windsor
Fitment: Replacement for Ford Mustang 1964-1973 1979-1995; Replacement for Ford F-150 1979-1995; Replacement for Ford 5.0L 5.8L, SBF 302 Windsor
Which Spark Plug Wires for a Ford 302 Should You Buy?
- Best all-around verified replacement: get the JDMSPEED New Red 10.5mm Racing Spark Plug Wires Set.
- Best value: get the JDMSPEED 10.2mm Spark Plug Wire Set.
- HEI distributor: get the Moroso 51070 Ultra Series Black Spark Plug Wires when its terminal style matches your distributor.
- Factory separators are tight: compare the 8mm Moroso 51070 with the thicker JDMSPEED sets before buying.
- Points ignition or an unusual conversion: identify your distributor terminals first instead of buying by engine size alone.
How We Chose
- Fitment first: We checked whether each set matched Ford 302 or closely related small-block Ford applications.
- Ignition compatibility: HEI versus non-HEI terminal style, boot angle, and coil connection carried more weight than wire color or marketing language.
- Verified construction: We used manufacturer specifications first, then current major-retailer data when the manufacturer did not provide a usable listing.
- Owner feedback: We looked for repeat trends across independent non-Amazon sources; no trend met the two-source threshold, so no owner-feedback box was added.
- Safety: We checked official recall resources for the named models and found no model-specific active recall to add to this roundup.
Buying Guide for Ford 302 Spark Plug Wires
Distributor Type Comes First
HEI and non-HEI distributor caps can use different terminal styles. A wire set can match a Ford 302 engine and still be wrong at the distributor end. The Moroso 51070 Ultra Series Black Spark Plug Wires are specifically listed for HEI setups, so use that kind of model-specific wording as your guide.
Boot Angle and Header Clearance
Plug boot angle controls how the wire leaves the spark plug. That matters around headers, tight accessory brackets, and crowded engine bays. Moroso specifies 135-degree plug boots on the 51070. If your current wires use a different angle to clear hot exhaust parts, compare the routing before changing styles.
Wire Diameter and Loom Clearance
Thicker wire is not automatically better. The JDMSPEED sets in this guide use 10.5mm and 10.2mm diameters, while the verified Moroso 51070 uses 8mm wire. A thicker set may not fit factory separators. Measure the loom openings and keep the wires secured away from exhaust heat and moving parts.
Wire Length and Routing
Each wire should reach its plug without being stretched, but extra length should not hang against headers, belts, or pulleys. Follow the safest existing routing when possible. If you have aftermarket headers or a custom distributor location, compare individual wire lengths before treating any pre-made set as a direct fit.
Core Construction and RFI Suppression
RFI suppression helps control electrical noise from the ignition system. The verified JDMSPEED 10.5mm and 10.2mm sets both list RFI suppression. The 10.5mm set also lists a Kevlar core, while Moroso documents a wound stainless-nickel-alloy conductor around a conductive fiberglass core for the 51070.
Firing Order Is an Engine Setup Question
Do not assume a new distributor or wire set changes the engine’s required firing order. Ford 302 applications can differ by engine family, model year, camshaft, and build history. Use the service information for your exact engine, and replace one wire at a time if the existing routing is known to be correct.
Mistakes to Avoid When Buying Spark Plug Wires
- Buying by engine size only: confirm distributor and coil terminal styles too.
- Assuming thicker means better: measure separators and routing space first.
- Ignoring headers: confirm boot angle and heat clearance before ordering.
- Removing every wire at once: replace one wire at a time to avoid routing mistakes.
- Trusting a broad fitment title: verify the exact year, engine, and ignition setup.
FAQs
How Do I Choose the Right Spark Plug Wires for My Ford 302 Engine?
Start with the distributor and coil terminal styles, then check plug boot angle, wire length, and diameter. A set can fit a Ford 302 in general but still be wrong for your cap or headers. If your engine has an HEI conversion, choose a set that clearly matches HEI terminals and verify the routing before ordering.
What Is the Difference Between HEI and Non-HEI Spark Plug Wire Sets?
HEI and non-HEI wire sets can use different distributor-cap terminals. That difference matters even when both sets fit the same Ford 302 engine family. The Moroso 51070 is specifically listed for HEI use, while the Moroso 52071 was built for non-HEI terminals. Match the cap style before comparing other features.
Will High-Performance Spark Plug Wires Add Horsepower?
New spark plug wires should not be treated as a guaranteed horsepower upgrade. Their main job is reliable spark delivery. Replacing cracked, arcing, heat-damaged, or poorly matched wires can restore ignition consistency, but healthy wires that already suit the engine may not produce a measurable power increase simply because the replacement is thicker.
Are Thicker 10.5mm Spark Plug Wires Always Better?
No. A 10.5mm wire can provide a thick insulation package and a custom look, but it may not fit stock separators or tight routing paths. The correct terminal style, adequate heat clearance, and proper length matter more than diameter alone. Check your looms and header clearance before choosing the thickest set available.
Does an HEI Distributor Change the Ford 302 Firing Order?
No. Changing to an HEI-style distributor does not by itself determine the engine’s firing order. The correct order depends on the specific engine and build, including camshaft and application details. Confirm the service information for your exact setup, mark the distributor positions, and move one plug wire at a time when possible.
What Installation Tips Matter Most on a Ford 302?
Replace one wire at a time, route each wire away from headers and moving parts, and make sure both boots seat fully. Do not pull on the wire itself when removing a boot. A small amount of dielectric grease inside the boot can help with moisture sealing and later removal without changing the electrical connection.
Final Verdict
The best spark plug wires for a Ford 302 depend on distributor style, terminal fit, and engine-bay routing. For the broadest verified match in this roundup, the JDMSPEED 10.5mm set gives you documented Ford small-block fitment, a Kevlar core, RFI suppression, and high-temperature silicone construction.
For a lower-cost verified option, compare the JDMSPEED 10.2mm Spark Plug Wire Set. For a verified HEI-specific Ford 260/289/302 set, compare the Moroso 51070 Ultra Series Black Spark Plug Wires.
| Product | Image | Best For | Wire Diameter | Manufacturer | Amazon |
|---|---|---|---|---|---|
| Moroso 52071 Ultra Series Red Spark Plug Wires |
 |
Legacy non-HEI Ford 260/289/302 fitment | 8 mm | Moroso | Check Price on Amazon |
| JDMSPEED New Red 10.5mm Racing Spark Plug Wires Set |
 |
Verified overall pick for compatible Ford small-block builds | 10.5 mm | JDMSPEED | Check Price on Amazon |
| Moroso 51070 Ultra Series Black Spark Plug Wires |
 |
Verified HEI Ford 260/289/302 fitment | 8 mm | Moroso | Check Price on Amazon |
| JDMON 10.5mm Spark Plug Wires |
 |
Mustang and F-150 fitment checks | 10.5 mm | JDMON | Check Price on Amazon |
| JDMSPEED 10.2mm Spark Plug Wire Set |
 |
Verified value pick for compatible F-150 and Mustang builds | 10.2 mm | JDMSPEED | Check Price on Amazon |
