A budget plasma cutter can look great on paper, but the real question is simple: can it cut cleanly, set up easily, and handle the type of metal work you actually do? The ARCCAPTAIN 55A Plasma Cutter is aimed at DIY users, hobby welders, small shops, and professionals who want a portable backup machine without jumping into a high-priced industrial unit. It brings dual-voltage power, a non-touch pilot arc, and a 55A output into a compact 19.8 lb body. The tradeoff is that it still needs the right air compressor, a strong power circuit, and realistic expectations, especially if you plan to run it on 120V.
Quick Verdict
Rating: 4.5/5 Stars
Best For: DIY metal cutting, garage fabrication, farm repairs, small shop work, and portable backup use.
Bottom Line: The ARCCAPTAIN 55A Plasma Cutter is a strong value if you want pilot arc cutting, dual voltage, and good portability in one machine. It is less ideal if you only have a light 120V circuit or need to cut thick metal every day.
Overview and Key Specifications

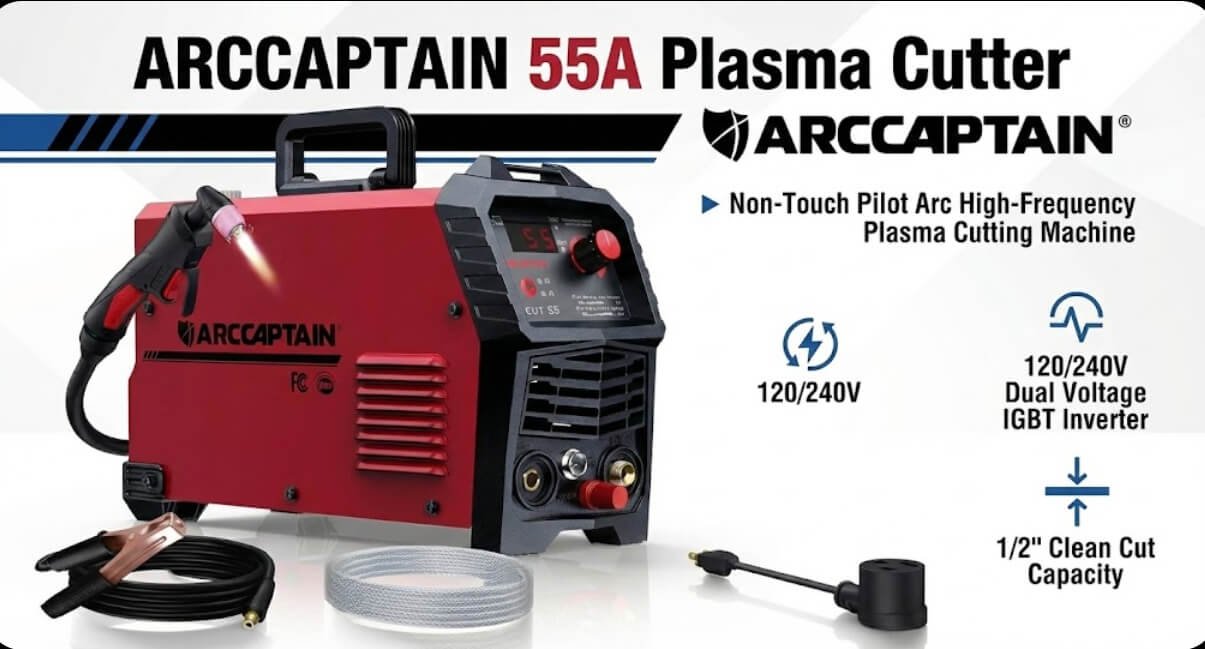

The ARCCAPTAIN 55A Plasma Cutter is a non-touch pilot arc, high-frequency plasma cutting machine designed for both beginners and experienced users. It is built for cutting conductive metal such as steel, stainless steel, aluminum, copper, and similar shop materials when used with the right setup. The machine supports 120V and 240V input, so you can use it in more than one work environment, but its strongest cutting performance comes from 240V power.
| Specification | Detail |
|---|---|
| Brand | ARCCAPTAIN |
| Product Type | Pilot arc plasma cutter |
| Amperage | 55A |
| Voltage Options | 120V/240V dual voltage |
| Arc Start | Non-touch pilot arc with high-frequency technology |
| Clean Cut Thickness | 1/2 inch at 240V, 3/8 inch at 120V |
| Maximum Cut Thickness | 3/4 inch at 240V, 1/2 inch at 120V |
| Weight | 19.8 lbs |
| Duty Cycle | 60% |
| Included Accessories | 10-foot air hose, 10-foot cutting torch, 10-foot earth clamp, air regulator, and filter |
| Air Requirement | Minimum 6-gallon, 150 PSI air compressor with 5.3 CFM output |
| Warranty | 1 year |
| Best Use | DIY projects, small shop fabrication, vehicle restoration, farm repairs, and portable metal cutting jobs |
Key Specs:
- Amperage: 55A
- Voltage Options: 120V/240V dual voltage
- Arc Start: Non-touch pilot arc with high-frequency technology
- Clean Cut Thickness: 1/2″ at 240V, 3/8″ at 120V
- Maximum Cut Thickness: 3/4″ at 240V, 1/2″ at 120V
- Weight: 19.8 lbs (highly portable)
- Warranty: 1 year
- Duty Cycle: 60%
What Is the ARCCAPTAIN 55A Plasma Cutter?
The ARCCAPTAIN 55A is a compact plasma cutting machine that uses compressed air and electrical power to cut metal. Its main appeal is that it brings several practical shop features into one affordable unit, including pilot arc starting, dual-voltage input, and a portable body that is easier to move than many heavier shop cutters.
This model is not just for experienced fabricators. The control layout, pre-set default parameters, and 2T/4T cutting modes make it easier for a newer user to get started, as long as the user follows the manual, uses proper safety gear, and connects the machine to the correct air and power source. For buyers moving up from grinders, cut-off wheels, or slower manual cutting methods, the biggest benefit is speed and cleaner control on metal projects.
Before You Buy: This plasma cutter does not include the required air compressor. Plan for at least a 6-gallon compressor rated at 150 PSI with 5.3 CFM output, and remember that 240V power gives noticeably stronger performance than 120V.
Who Should Buy It?
Best For
- DIY users who want cleaner metal cuts than a grinder can provide.
- Garage fabricators and small shops that need a portable 55A machine.
- Farm, auto, and repair users who often cut painted, rusty, or outdoor metal.
Skip If
- You only have a weak 120V circuit and cannot upgrade to 240V for thicker cuts.
- You need to cut metal thicker than 3/4 inch on a regular basis.
- You do not already own, or plan to buy, a suitable air compressor.
What Makes It Stand Out
The ARCCAPTAIN 55A stands out because it combines pilot arc cutting, dual-voltage flexibility, portability, and beginner-friendly controls. That combination matters because many low-cost plasma cutters force you to give up one of those features. This model is especially appealing if your work moves between a home garage, a small shop, and occasional job-site cutting.
Non-Touch Pilot Arc Technology
One of the standout features is the non-touch pilot arc ignition system. Unlike contact-start methods, this setup allows you to start cutting without pressing the torch tip directly onto the metal surface. That can help reduce electrode wear, lower the chance of dragging the tip across rough material, and make the cutter easier to use on uneven metal.
This feature also helps when you are working on rusty, painted, or weathered surfaces. You still get the best results with a clean grounding point and properly prepared metal, but pilot arc technology gives you more room to work with imperfect surfaces than a basic contact-start cutter. The article-supported claim that it can extend consumable life by up to 2x compared with standard PT31 torches is one of the reasons this model is attractive for budget-focused users.
Lightweight and Portable
At 19.8 lbs, this plasma cutter is easy to move around a shop or carry between work areas. That weight matters if you do mobile repair work, store your tools on shelves, or need to carry the machine to a driveway, trailer, farm building, or vehicle project. The included shoulder strap also helps when you need both power and mobility.
One reviewer used it during FJ Cruiser restoration work and praised the mix of power and portability. That is the type of job where a heavy industrial cutter may be more machine than you need, but a weak entry-level cutter can feel too limited.
Dual Voltage Versatility
The 120V/240V design gives you more flexibility than a single-voltage machine. On 120V, the cutter can still handle lighter work and smaller shop jobs. On 240V, it has more cutting power, cuts faster, and reaches its better clean-cut and maximum-cut figures.
This is one of the most important buying points to understand. If you plan to cut mostly thin material, 120V may be useful. If you expect to cut thicker plate or want cleaner results with less strain on the machine, 240V is the better setup.
Beginner-Friendly Features
The ARCCAPTAIN comes with pre-set default parameters, including air pressure at 60 PSI and post-flow time at 5 seconds. You select the voltage, set the current with the knob, connect the air supply, clamp the ground properly, and begin cutting after setup is complete.
The 2T/4T automatic cutting function is especially useful. In 2T mode, you hold the trigger for shorter, controlled cuts. In 4T mode, you can run longer continuous cuts with less hand fatigue, which helps when you are cutting sheet metal, longer brackets, panels, or repeated shapes.
Pro Tip: For cleaner cuts, match your amperage to the metal thickness, keep a solid ground connection, and use 240V when the project involves thicker steel or longer cuts.
Design and Build Quality
The main design advantage is the balance between output and size. A 55A cutter in a 19.8 lb body is practical for users who do not want a fixed shop-only machine. The compact format also makes storage easier in a garage, trailer, or small workshop.
The package includes the basic items needed to connect the cutter, including the torch, earth clamp, air hose, regulator, and filter. The included air hose is useful for getting started, although some users noted that the hose quality could be better. That is not unusual at this price level, but it is worth knowing before you buy.
Real-World Performance
According to customer reviews on Amazon, this plasma cutter delivers solid performance across various applications. One user reported cutting 1/4-inch plate steel effortlessly at 35 amps using 110V power, while another successfully used it for metal restoration work on a classic vehicle.
For Garage Fabrication
For brackets, panels, small plates, and general shop cuts, the ARCCAPTAIN 55A gives you more speed than a cut-off wheel. It is especially useful when you need repeated cuts or curved lines that would take more time with a grinder. Cleaner results depend on metal thickness, travel speed, amperage, and air quality.
For Auto Restoration
This cutter makes sense for vehicle restoration jobs where you may deal with old, painted, or rusty metal. The pilot arc helps with imperfect surfaces, although you should still clean the grounding area before cutting. It is a practical choice for body panels, brackets, and repair sections, not heavy frame cutting beyond its rated capacity.
For Farm and Outdoor Repairs
Farm and outdoor repairs often involve weathered metal. The non-touch pilot arc gives this machine an advantage when the surface is not perfectly clean. You still need dry compressed air, safe work positioning, and proper protective equipment before cutting.
For Small Shop Backup Use
Professionals may not use this as their main industrial cutter, but it can work well as a portable backup. The 19.8 lb weight makes it easy to move, and the dual-voltage design lets you adapt to more workspaces. Its biggest limitation for shop use is that heavier, repeated thick-metal cutting can exceed what this class of machine is meant to do.
What Users Love:
- Exceptional value for money, one reviewer purchased it on a flash sale for $170 and considered it better than Lincoln-branded equipment
- Quick and easy setup process
- Clean, smooth cuts through various metal thicknesses
- Reliable performance on both 110V and 220V circuits
- Durable construction that holds up well under regular use
Notable Considerations:
- Performance is significantly better at 240V than 120V
- Requires a minimum 6-gallon, 150 PSI air compressor (not included)
- Works best when metal is cleaned to bare metal with a good grounding point
- A 20-amp 120V circuit is minimum; 30 amps recommended
- Some users reported issues with the air regulator in rare cases
- The included air hose could be of better quality
Setup and Requirements
The ARCCAPTAIN includes several useful components: a 10-foot air hose, 10-foot cutting torch, 10-foot earth clamp, air regulator, and filter. Setup is straightforward because the air filter mounts at the rear for quick connection, and the air pressure sensor helps you adjust the regulator.
One important note: A compressed air source is required but sold separately. Plan for at least a 6-gallon compressor at 150 PSI with 5.3 CFM output to operate this machine effectively. For best results, the compressor should supply clean, dry air because moisture in the air line can hurt cut quality and reduce consumable life.
Setup Tips Before First Use
- Confirm that your circuit can support the cutter before starting, especially on 120V.
- Use 240V when cutting thicker metal or when you want better speed and cleaner results.
- Attach the earth clamp to clean bare metal for a stable grounding point.
- Check the air regulator, hose connection, and filter before cutting.
- Test on scrap metal first so you can adjust amperage and travel speed safely.
Cutting Capabilities Comparison
The ARCCAPTAIN 55A Pilot Arc model offers several variants, each with different capabilities. This comparison is helpful if you are deciding between similar ARCCAPTAIN machines and want to understand why the pilot arc version may be a better fit for rougher metal work.
| Feature | CUT 55 Pilot Arc | CUT 50 | CUT 55 Non-HF |
|---|---|---|---|
| Current | 55A | 50A | 55A |
| Input Voltage | 120V/240V | 110V/220V | 110V/220V |
| Clean Cut | 3/8″-1/2″ | 3/10″-1/2″ | 1/2″-11/16″ |
| Maximum Cut | 1/2″-3/4″ | 1/2″-2/3″ | 5/8″-1″ |
| LED Display | Yes | Yes | Yes |
| Rusty Metal Capable | Yes | Yes | No |
The CUT 55 Pilot Arc is the better choice if rusty or painted metal is part of your regular work. The CUT 55 Non-HF shows a higher maximum-cut figure in this table, but it does not offer the same rusty-metal capability. For most DIY and repair users, the pilot arc model is the easier all-around pick.
Safety and Use Notes
A plasma cutter is powerful cutting equipment, so safety matters as much as cutting capacity. You should use proper eye protection, gloves, long sleeves, safe footwear, and ventilation. Do not cut near flammable materials, sealed containers, fuel tanks, or unknown coated metal unless you know the material is safe to cut.
You should also follow the product manual for air pressure, wiring, power input, duty cycle, torch setup, and consumable replacement. The 60% duty cycle means the machine is not meant to cut nonstop without rest. Giving the cutter time to cool helps protect the unit and improves long-term reliability.
Quality Assurance and Warranty
The ARCCAPTAIN has passed various professional tests and certifications, including FCC and ANSI standards. Each unit includes a unique verification code that is checked before shipping. These details help support buyer confidence, especially for a budget-friendly machine in a category where quality control can vary.
While not all machines arrive in perfect condition, the 30-day Amazon return guarantee and 1-year warranty provide reasonable peace of mind. It is still smart to inspect the machine, accessories, torch, air regulator, hose, and connections as soon as it arrives. That way, you can identify missing parts, shipping damage, or setup problems before your return window becomes an issue.
Pros and Cons
Pros
- 55A output gives strong cutting ability for DIY and small shop use.
- 120V/240V dual voltage makes it useful in more work locations.
- Non-touch pilot arc helps with rusty, painted, or uneven metal.
- 19.8 lb weight makes it easier to move than many larger cutters.
- 2T/4T cutting modes help with both short cuts and longer continuous cuts.
Cons
- Air compressor is required and is not included.
- 120V performance is more limited than 240V performance.
- Included air hose and regulator may not satisfy every user.
Price and Value Proposition
With an Amazon rating of 4.5 out of 5 stars from over 1,240 reviews, the ARCCAPTAIN 55A represents exceptional value. It is ranked #1 in the Plasma Cutting Equipment category on Amazon. For the price point, you are getting professional-style features typically found in much more expensive machines.
The strongest value comes from the mix of pilot arc cutting, dual voltage, 55A output, and portability. For a buyer who needs occasional to regular metal cutting, this can be a smarter buy than paying more for a machine that is too large for home or small shop use. The main value limitation is that you may need to spend extra on a proper compressor, better air hose, dry-air setup, or replacement consumables.
Is It Worth the Price?
The ARCCAPTAIN 55A is worth considering if you want a strong value for the price and you plan to use the machine for DIY fabrication, garage repairs, auto restoration, or small shop work. It gives you useful features without forcing you into a premium price tier.
It is not the best fit if your work is mainly heavy industrial cutting or thick plate cutting every day. In that case, you may need a larger machine with more duty-cycle headroom. For most home and small shop buyers, though, this cutter offers a practical balance of power, features, and portability.
How It Compares to Alternatives
Compared with a basic contact-start plasma cutter, the ARCCAPTAIN 55A Pilot Arc is easier to use on rougher metal and may be more forgiving for repair work. Compared with the ARCCAPTAIN CUT 50, it gives you a higher 55A current rating and stronger overall capability. Compared with the CUT 55 Non-HF, the pilot arc model makes more sense if rusty-metal capability is more important than the highest maximum-cut figure in the comparison table.
If you want the simplest budget cutter for thin, clean metal, a lower-cost CUT 50 style machine may be enough. If you want a more versatile shop tool for a wider range of metal conditions, the ARCCAPTAIN 55A Pilot Arc is the stronger match.
The Verdict
The ARCCAPTAIN 55A Plasma Cutter is an excellent choice for anyone entering the plasma cutting category or upgrading from older cutting equipment. Its non-touch pilot arc technology, portability, dual-voltage capability, and beginner-friendly operation make it stand out in its price range.
Best for: DIY enthusiasts, hobbyists, small metalworking shops, and professionals seeking a portable backup cutter.
Consider alternatives if: You exclusively work in 110V environments without room to upgrade to 240V, or you need to cut materials thicker than 3/4 inch regularly.
If you are ready to compare current details, customer experiences, and availability, check the ARCCAPTAIN 55A Plasma Cutter on Amazon. With its solid performance record, reasonable price, and practical features, it is worth serious consideration for your next metalworking investment.
Related Guides
Frequently Asked Questions
Does the ARCCAPTAIN 55A Plasma Cutter work on 120V?
Yes, it supports 120V and 240V input. The 120V setting is useful for lighter work, but the machine performs better on 240V when you need faster cuts or thicker metal capacity.
What air compressor do you need for this plasma cutter?
The article-supported requirement is a minimum 6-gallon compressor rated at 150 PSI with 5.3 CFM output. A steady supply of clean, dry air helps improve cut quality and consumable life.
Can it cut rusty or painted metal?
Yes, the non-touch pilot arc design helps it work on rusty or painted surfaces better than many basic cutters. You should still clean the grounding point to bare metal for more stable performance.
What thickness can the ARCCAPTAIN 55A cut?
The listed clean cut is 1/2 inch at 240V and 3/8 inch at 120V. The listed maximum cut is 3/4 inch at 240V and 1/2 inch at 120V.
Is this a good plasma cutter for beginners?
Yes, it is beginner-friendly because it includes pre-set default parameters, simple current adjustment, and 2T/4T cutting modes. A new user should still read the manual, test on scrap metal, and use proper safety gear before cutting real projects.
What comes in the package?
The included components listed in the article are a 10-foot air hose, 10-foot cutting torch, 10-foot earth clamp, air regulator, and filter. The air compressor is required but sold separately.
Who should skip the ARCCAPTAIN 55A?
Skip it if you need a heavy industrial cutter for thick plate cutting every day. It may also be a poor fit if you do not have a suitable air compressor or cannot use a proper 240V setup for demanding cuts.
The Bottom Line
The ARCCAPTAIN 55A Plasma Cutter is a strong choice if you want a portable, dual-voltage pilot arc cutter for garage, repair, restoration, and small shop projects. Its biggest strengths are value, portability, and rusty-metal capability, while its main limitations are the separate compressor requirement and stronger performance on 240V. If your projects fit within its rated cutting range, it deserves a serious look.
Final Rating: 4.5/5 Stars ⭐⭐⭐⭐✨
Pros: Exceptional value, non-touch pilot arc, portable design, beginner-friendly, dual voltage
Cons: Requires separate air compressor, better performance at 240V, occasional QC issues reported
