How to Change Engine Oil on a Toyota Tacoma (Step-by-Step)

Changing the oil in a Toyota Tacoma is a manageable DIY job, but you must identify the truck’s model year and engine before buying oil, a filter, or tools. Tacoma generations use different oil grades, capacities, filter designs, access panels, and torque specifications. Follow the common workflow below while using Toyota’s information for the exact specifications that apply to your truck.

Tools, Parts, and Specifications to Confirm

Gather everything before raising the truck. Your exact parts and tools depend on the model year and engine, so confirm the following items first:

• Engine-oil viscosity: Use the grade printed on the oil-filler cap and specified in the owner’s manual.
• Oil quantity: Use the listed capacity with a filter change as a starting reference, not as a substitute for checking the dipstick.
• Oil performance standard: Choose an oil that meets the standard required by Toyota. The American Petroleum Institute says the vehicle owner’s manual should take priority when selecting an oil category.
• Oil filter: Confirm whether your engine uses a replaceable cartridge element or a spin-on filter.
• Sealing parts: Buy a new drain-plug gasket or crush washer. A cartridge-filter kit may also include one or more O-rings.

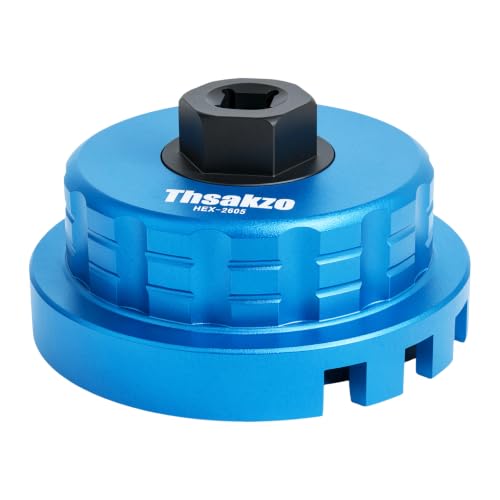

• Filter tool: Use a wrench that fits the exact filter or cartridge housing without crushing or rounding it.
• Torque specifications: Obtain the drain-plug, filter-housing, filter-drain-plug, and skid-plate specifications for your exact truck from Toyota Technical Information System or the applicable factory repair information.

You will also need a drain pan large enough to hold the full engine-oil capacity, a funnel, a socket set, a torque wrench, shop towels, nitrile gloves, safety glasses, wheel chocks, and properly rated ramps or jack stands.

Raise the Tacoma Safely and Prepare the Engine

Park on a firm, level surface. A level position is important for safe lifting and for the final dipstick reading. Run the engine briefly if it is completely cold, then shut it off. Slightly warm oil drains more easily, but the exhaust, oil pan, skid plates, and oil can become hot enough to cause burns.

1. Place the transmission in Park or first gear and apply the parking brake.
2. Chock the wheels that will remain on the ground.
3. Drive onto properly rated ramps, or lift the truck only at an approved lifting point.
4. If using a jack, lower the vehicle onto correctly positioned jack stands before going underneath it.
5. Confirm that the truck is stable before starting work.
6. Put on gloves and safety glasses.
7. Open the hood and loosen the oil-filler cap. You may also lift the dipstick slightly to help the crankcase vent while the oil drains.

Remove the Skid Plate or Access Panel

Some Tacomas have a skid plate or service panel covering the drain plug or oil filter. Support a heavy skid plate with one hand or a suitable support while removing its final fasteners. Keep bolts, clips, and spacers organized so they return to their original positions.

Locate the engine-oil drain plug at the lowest section of the oil pan. Confirm that you have found the engine drain plug rather than a transmission, transfer-case, or differential plug. Position the drain pan so it can catch the initial stream and any wind-blown oil.

Drain the Oil and Reinstall the Drain Plug

Loosen the drain plug with the correctly sized socket. Keep inward pressure on the plug while unthreading it, then pull it away quickly so the oil flows into the pan. Avoid placing your face, hands, or tools directly below the opening.

1. Allow the oil to drain until the flow slows to occasional drips.
2. Inspect the removed plug for damaged threads, a rounded head, or an unusual amount of metal debris.
3. Remove the old sealing washer or gasket. Make sure it is not stuck to the oil pan.
4. Clean the plug and the sealing surface with a lint-free towel.
5. Install a new, correct drain-plug gasket.
6. Thread the plug into the oil pan by hand for several turns.
7. Tighten it to the exact specification for the model year and engine using a calibrated torque wrench.
8. Wipe the oil pan and plug dry so a later leak will be easy to spot.

Do not force a plug that binds during hand installation. Resistance may indicate crossed or damaged threads. Stop and inspect the plug and oil-pan threads before continuing.

Replace the Oil Filter: Cartridge or Spin-On

Confirm the filter design before removing anything. Do not assume a cartridge-filter procedure applies to a truck equipped with a spin-on filter.

Cartridge-Filter Procedure

A cartridge system uses a reusable housing with a replaceable paper element. Some housings also have a small drain plug that allows the housing to be emptied before the cap is removed.

1. If the housing has a drain plug, place the drain pan beneath it and remove the plug using the specified tool.
2. Use the correct drain adapter if one is supplied with the replacement filter and required by the housing design.
3. Remove the housing with a cap wrench that fully engages the housing.
4. Remove the old filter element and O-ring.
5. Clean the housing and inspect it for cracks, damaged threads, or a deformed sealing surface.
6. Install the new filter element in the correct orientation.
7. Coat the new O-ring lightly with fresh engine oil.
8. Place the O-ring in its designated groove. Do not leave it on the housing threads or in the groove used by the old seal if the instructions specify another location.
9. Reinstall the housing and any filter drain plug using the exact factory torque specifications.

Do not prefill a cartridge housing unless the factory procedure for your engine specifically directs you to do so. Many housings cannot be prefilled without spilling oil.

Spin-On Filter Procedure

A spin-on filter is replaced as a complete metal canister.

1. Place the drain pan under the filter and loosen it with the correct filter wrench.
2. Turn the filter upright as soon as possible to limit spills.
3. Confirm that the old rubber gasket came off with the filter.
4. Clean the engine’s filter-mounting surface.
5. Apply a thin film of fresh oil to the new filter gasket.
6. Install the filter by hand according to the filter manufacturer’s tightening instructions.
7. Do not use a filter wrench for final tightening unless the factory procedure specifically requires it.

Refill the Engine, Check the Level, and Inspect for Leaks

If the front of the truck was raised, return it to level ground before making the final oil-level check. Install any access panel that does not block your initial leak inspection, but wait to reinstall a large skid plate until you have checked the drain plug and filter.

1. Insert a clean funnel into the oil-filler opening.
2. Add approximately one-half to one quart less than the owner’s-manual capacity.
3. Wait briefly for the oil to reach the pan.
4. Remove the dipstick, wipe it clean, reinstall it fully, and remove it again.
5. Add oil in small amounts until the level approaches the full mark without passing it.
6. Install the filler cap securely.
7. Start the engine and let it idle for about 30 to 60 seconds.
8. Confirm that the oil-pressure warning light turns off normally.
9. Shut off the engine and inspect the filter and drain plug.
10. Wait about five minutes, then check the dipstick again on level ground.
11. Top up in small amounts as needed. Do not fill above the upper mark.

The quantity listed in the owner’s manual is a guide for refilling an empty system. Oil remaining in passages, the filter housing, or the pan can affect the final amount required. The dipstick is the final check.

The correct oil level matters more than reaching a round number of quarts. Finish every Tacoma oil change with the truck level and the dipstick between its specified marks.

Reinstall the Skid Plate and Reset the Maintenance Reminder

Once the filter and drain plug remain dry, reinstall the skid plate or service panel. Start every fastener by hand, confirm that clips and spacers are correctly positioned, and tighten the fasteners to the applicable specification.

Reset the maintenance reminder only after the oil change is complete. Many newer Tacomas provide a reset option through the instrument-panel settings or multimedia display. Other years use an odometer-button sequence. Follow the reset procedure in the owner’s manual for your model year because the controls and menu names vary.

Record the date, mileage, oil viscosity, oil brand, filter part number, and any observations. Keeping a maintenance log helps you track the service interval and identify recurring oil consumption or leaks.

How Often Should You Change Tacoma Oil?

Follow the maintenance schedule issued for your exact Tacoma rather than applying one interval to every truck. The required interval can depend on model year, oil specification, mileage, time, and operating conditions.

Conditions such as repeated short trips, extensive idling, dusty roads, towing, heavy loading, off-road driving, or prolonged low-temperature use may require more frequent service. Check the vehicle-specific warranty and maintenance guide through Toyota’s official manual portal.

Troubleshooting After the Oil Change

The Oil Level Is Low After Starting

Wait several minutes on level ground and check again. Add the specified oil in small amounts. Reinspect the drain plug, filter, and area beneath the truck for leakage.

The Oil Level Is Above the Full Mark

Do not assume the excess will burn away safely. Drain or extract enough oil to return the level to the specified range before driving.

The Drain Plug Leaks

Shut off the engine. Confirm that the old washer was removed, the new gasket is correct, the plug is not cross-threaded, and the oil-pan sealing surface is undamaged. Do not keep tightening beyond the factory specification to hide damaged threads.

The Filter or Housing Leaks

For a cartridge housing, check the O-ring position, housing condition, drain-plug seal, and torque. For a spin-on filter, check for a retained old gasket, damaged new gasket, loose filter, or contaminated mounting surface.

The Oil-Pressure Warning Light Stays On

Shut the engine off immediately. Check the dipstick, verify that the correct filter was installed, and inspect for a major leak. Do not keep running the engine to see whether the warning clears. Arrange professional diagnosis if the cause is not immediately found.

The Filter Housing Will Not Loosen

Use a tool that fully engages the housing. Avoid impact tools, pipe wrenches, or pliers that can crack or deform the cap. A damaged housing should be replaced before the engine is returned to service.

Recycle the Used Oil and Filter

Pour the used oil into a clean, leak-proof container with a secure lid. Do not mix it with coolant, brake fluid, solvents, gasoline, or household chemicals. Drain the used filter according to local requirements and keep it contained during transport.

The U.S. Environmental Protection Agency recommends taking used motor oil and drained filters to an appropriate automobile-maintenance facility, waste collector, or recycling center. Never pour oil onto the ground, into a storm drain, or into household plumbing.

Related Guides

• Engine Oil Filter for Nissan Murano
• Tacoma Air Filters
• Oil Filters for Honda CR-V

Frequently Asked Questions

What do I need for a Toyota Tacoma oil change?

You need the specified engine oil, the correct filter, a new drain-plug gasket, a drain pan, funnel, socket set, torque wrench, correct filter tool, gloves, eye protection, wheel chocks, and safe lifting equipment. Cartridge systems may also require replacement O-rings and a housing drain adapter.

How do you change Tacoma oil step by step?

Confirm the vehicle specifications, secure the truck, remove any access panel, drain the oil, install a new drain-plug gasket, replace the filter, refill gradually, start the engine, check for leaks, recheck the dipstick on level ground, reinstall the skid plate, reset the reminder, and recycle the used oil.

Does the oil-change procedure change by Tacoma model year?

Yes. Model years and engines can use different oil viscosities, capacities, filters, filter tools, access panels, drain plugs, sealing parts, torque values, and reminder-reset procedures. Verify the exact truck before purchasing parts or beginning work.

Where is the Tacoma oil drain plug?

The engine-oil drain plug is installed in the lower portion of the engine oil pan. A skid plate or access panel may cover it. Confirm the plug’s location before loosening it so you do not drain the transmission, transfer case, or differential by mistake.

How much oil does a Toyota Tacoma take?

The amount varies by model year and engine, so five quarts is not a universal Tacoma capacity. Check the owner’s manual for the capacity with a filter change, initially add slightly less than that amount, and use the dipstick for the final level.

What oil should you use in a Toyota Tacoma?

Use the viscosity and performance standard printed on the oil-filler cap and specified in the owner’s manual for your exact year and engine. Do not assume every Tacoma uses 0W-20.

Conclusion

A successful Toyota Tacoma oil change depends on matching the supplies and specifications to the exact truck. Confirm the oil, capacity, filter, sealing parts, tools, and torque values before starting. After the refill, check the level on level ground, verify that the oil-pressure warning turns off, inspect for leaks, reset the reminder, and record the service.

Recheck the dipstick and the ground beneath the truck after the first drive. If the oil-pressure warning appears, the level changes unexpectedly, or a leak develops, shut off the engine and correct the problem before continuing to drive.

Sources

1. Toyota Manuals and Warranties — vehicle-specific owner’s manuals, warranty information, and maintenance guides
2. Toyota Technical Information System — factory repair manuals, service bulletins, and technical information
3. American Petroleum Institute Oil Categories — current gasoline-engine oil categories and owner’s-manual guidance
4. U.S. EPA Used-Oil Recycling Guidance — handling, containing, and recycling used motor oil and filters
