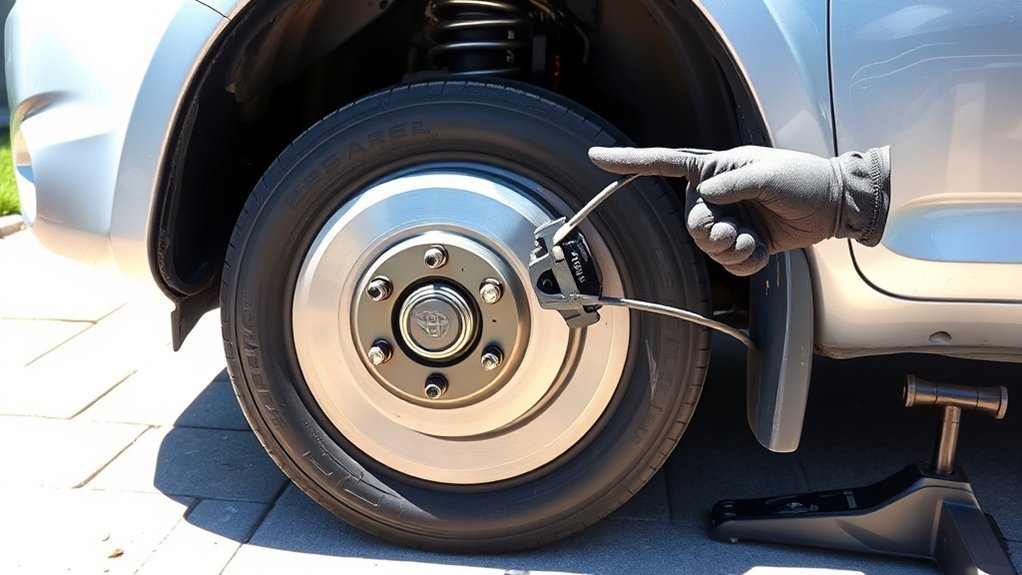

A 2011 Toyota RAV4 driver-side parking brake cable service begins with symptom verification, cable inspection, and rear brake assembly checks. The procedure typically uses 21 mm, 14 mm, and 17 mm tools to remove the wheel, caliper, bracket, and rotor. The old cable is disconnected from the lever, guides, and brake hardware, then replaced along the original routing. Final steps include shoe adjustment, cable tension setting, and torque verification. Additional steps below clarify critical alignment points.

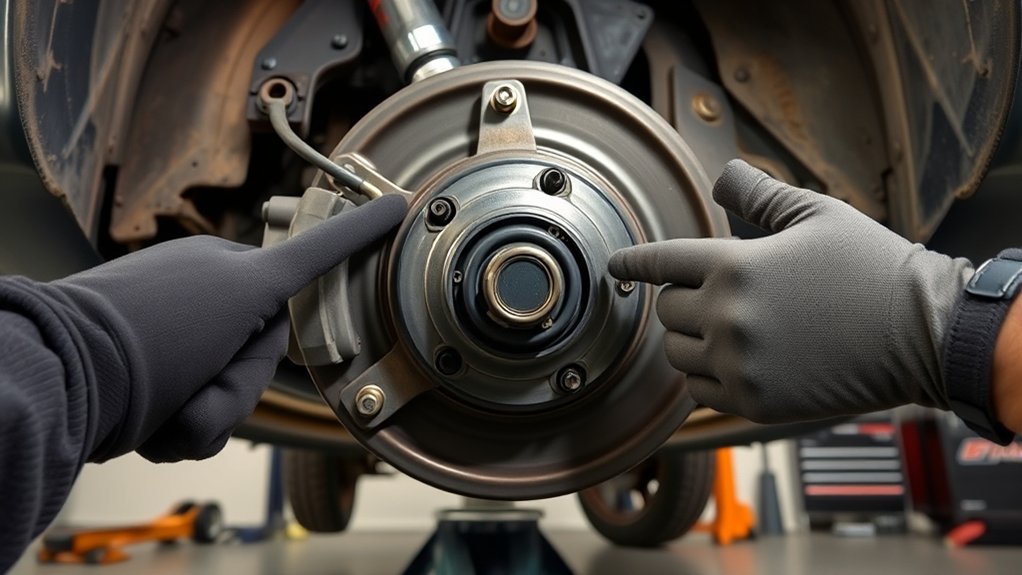

Diagnose the 2011 RAV4 Parking Brake
Begin diagnosis by verifying the primary symptoms of parking brake malfunction on the 2011 Toyota RAV4, specifically whether the vehicle fails to remain stationary on an incline or whether the lever exhibits excessive travel before engagement. This establishes whether the drum-style parking brake system is losing holding force or cable tension, a first step toward mechanical liberation from unreliable braking behavior.
Next, inspect the parking brake cable along its accessible path for fraying, corrosion, binding, or disconnection. Because the system operates through a cable mechanism linked to the rear brake assembly, any visible deterioration can interrupt force transfer.
Make sure lever movement feels consistent and not unusually loose. If symptom confirmation and cable condition indicate slack, evaluate cable adjustment at the lever or rear wheels to restore proper tension.
Correct adjustment can help prevent incomplete engagement and premature component wear. Regular inspection and maintenance of the parking brake system support dependable operation and extended service life, reducing the chance of recurrent faults.
Inspect the Driver-Side Brake Assembly
Remove the driver-side rear wheel and inspect the brake assembly for wear, damage, or contamination, paying close attention to the brake pads and rotor because irregular contact surfaces or excessive wear can reduce braking performance.
Check parking brake shoes for correct alignment, lining thickness, and dependable contact. Inspect the cable connection at the lever and backing plate; it must move freely without kinks or corrosion. Confirm every return spring and retaining clip is seated securely, since looseness can compromise brake function. Clean the backing plate and pivot points to prevent sticking and restore smooth movement, supporting reliable operation and peace of mind.
| Component | Inspect For | Why It Matters |
|---|---|---|
| Pads and rotor | Scoring, taper wear, contamination | Reduces stopping consistency |
| E-brake shoes | Misalignment, cracks, thin lining | Weakens holding power |
| Cable | Kinks, rust, poor attachment | Restricts actuation |
| Springs and clips | Looseness, distortion, absence | Risks reduced effectiveness |
This disciplined inspection frees the system from hidden faults.
Gather Tools for the RAV4 Brake Job
Assemble the required tools before disassembly to control workflow and prevent delays at the brake corner. For the 2011 Toyota RAV4 driver side, preparation centers on fastener sizes and controlled leverage. A 21 mm socket is required for lug nuts, with a locking key available where applicable. A 14 mm socket should be staged for the two caliper bolts. A flat screwdriver or pry bar supports extraction of worn pads without improvisation.
- Use a breaker bar with a 17 mm socket to overcome bracket bolt torque efficiently.
- Keep a mallet nearby to free the rotor after bracket removal, especially when corrosion binds differing rotor materials.
- Organize tools by sequence to simplify caliper maintenance decisions and comparison of brake pad types during inspection.
This methodical setup reduces hesitation, preserves momentum, and gives the operator practical independence. Proper preparation creates access, supports diagnostic clarity, and limits avoidable interference once brake service begins.
Remove the Wheel, Caliper, and Rotor
Loosen the lug nuts with a 21 mm socket, then lift off the wheel to expose the brake assembly on the 2011 Toyota RAV4. This establishes direct access and applies disciplined wheel removal techniques that free the technician from unnecessary struggle.
Each lug nut should be fully removed before the wheel is pulled straight outward from the hub. Visual inspection at this stage helps confirm component condition and any abnormal wear patterns.
Next, remove the two 14 mm caliper bolts and slide the brake caliper off with controlled force. Suspend it securely so the brake hose remains unstressed, a core principle of brake caliper maintenance.
Then apply a breaker bar to the two 17 mm caliper bracket bolts and remove the bracket. Free the rotor by tapping it with a mallet while wiggling it outward.
As rotor replacement tips, clean dust and debris with solvent in ventilation, and verify proper rotor, pad, and caliper alignment during reinstallation.
Disassemble the Driver-Side Parking Brake
The procedure begins by removing the interior trim panel to access the driver-side parking brake cable connection and bracket.
The cable is then disconnected from the lever by removing the retaining clip, releasing the 10 mm bracket bolt, and detaching the cable from the rear brake assembly so the brake shoes and parking hardware can be removed.
During disassembly, the cable, clips, and related components should be inspected for wear or damage to verify serviceability.
Access Driver-Side Assembly
Begin by safely raising the vehicle and removing the driver-side rear wheel with a 21 mm socket to expose the parking brake assembly. This establishes visual access for brake performance evaluation, cable maintenance, and essential safety checks before disturbing components.
If the drum resists removal, retaining screws are extracted first, allowing clear exposure of the internal mechanism without forcing parts.
- Remove the retaining clip from the parking brake lever, then slide the cable end free from its bracket.
- Withdraw the brake drum as needed to reveal the assembly and confirm routing, tension, and corrosion points.
- Reassemble in reverse order after inspection, verifying secure attachment, smooth lever travel, and proper cable seating.
This approach supports controlled diagnosis and grants the technician practical freedom to inspect faults methodically and confidently.
Remove Brake Shoes
Proceed by disconnecting the parking brake cable from the lever, then remove the retaining clips and return springs that secure the driver-side E-brake shoes to the backing plate. A notched brake tool is used to control spring tension and prevent distortion during release. Effective spring removal techniques reduce struggle and expose the assembly for orderly disassembly.
With tension relieved, extract the horizontal bracket linking the forward and rearward shoes, then lift away the shoes as a matched set for inspection. This step helps identify wear patterns, contamination, or uneven contact points.
Before reassembly, all hardware, the backing plate, and pivot areas should be cleaned thoroughly. As practical maintenance tips, compare replacement parts to the originals, verifying brake shoe types, dimensions, and alignment so the liberated system operates smoothly.
Disconnect Parking Hardware
Secure the vehicle on stands and verify clear access to the rear wheel area, then trace the driver-side parking brake cable to its connection at the brake assembly.
- Remove the 10 mm bolt securing the cable bracket to expose the hardware.
- Pull the actuating lever to release cable tension, then disengage the cable end from the brake shoes.
- Remove clips and retaining springs methodically, preserving orientation for reassembly and brake assembly maintenance.
This procedure applies across common parking cable types, though bracket geometry may vary.
The technician should use disciplined tension adjustment techniques to prevent spring distortion or shoe misalignment.
After separation, the cable requires inspection for fraying, corrosion, or sheath damage.
Any defect indicates replacement before reassembly.
This diagnostic approach supports safer service and mechanical autonomy for future repairs.
Remove the Old RAV4 Parking Brake Cable
Lift the 2011 Toyota RAV4 and support it on jack stands, then remove the rear wheel to expose the brake assembly and parking brake cable attachment points. This brake maintenance step frees access and confirms the tools checklist before disassembly. The technician detaches the cable from the lever mechanism by removing retaining clips or bolts, while documenting cable routing for liberated, error-free service.
| Area | Fastener | Action |
|---|---|---|
| Lever mechanism | Clip/bolt | Remove |
| Brake shoe end | Spring/clip | Disconnect |
| Cable body | Visual check | Inspect |
Next, the cable is disconnected from the brake shoes by removing springs or clips that secure it within the assembly. Once released, the old cable is withdrawn carefully from its guides and brackets without disturbing unrelated components. A final inspection checks for frayed strands, seized movement, cracked sheathing, or corrosion. These findings diagnostically confirm replacement necessity and explain prior parking brake inefficiency or drag during operation.
Install the New RAV4 Parking Brake Cable
With the old cable removed and its routing verified, installation of the new 2011 Toyota RAV4 parking brake cable begins at the rear brake assembly. The vehicle remains safely lifted with rear wheels removed, allowing clear access to the lever, brake shoes, and retaining points.
The replacement cable is threaded along the original path using disciplined cable routing techniques, preventing twists, kinks, or contact with suspension travel.
- Seat the cable end fully into the brake shoe actuator and connect the opposite end to the parking brake lever.
- Confirm each clip, bracket, and grommet is engaged according to factory positioning and retention requirements.
- Inspect for common installation mistakes, especially inverted routing, partial seating, or interference near moving components.
Initial parking brake adjustments involve setting cable tension so engagement is positive while slight slack remains with the lever released.
A functional check follows by cycling the brake several times, verifying liberated, consistent movement before proceeding.
Reassemble and Adjust the Parking Brake
Reassembly begins by positioning the adjuster wheel correctly after the new parking brake shoes are installed. Then, using a spring tool to secure the upper springs and confirm proper hardware alignment.
The rotor is then test-fitted to check for minimal shoe contact, with the adjuster corrected as needed to eliminate dragging or binding.
Final assembly is completed by torquing the caliper bracket bolts to 65 ft-lbs, the caliper to bracket bolts to 20 ft-lbs, and setting the parking brake cable tension for full engagement without excessive force.
Install Brake Hardware
Inspect and organize the parking brake components before installation, confirming that the E brake shoes, return springs, and adjuster wheel are clean, undamaged, and positioned to match the manufacturer’s layout.
Attention to brake shoe materials, spring tension techniques, and adjuster wheel alignment supports reliable function and frees the assembly from preventable drag.
- Attach the upper and lower springs with a proper spring tool, seating each hook fully on its tab and verifying even spring force.
- Install the adjuster wheel in its correct orientation, confirming stable shoe tension and unrestricted movement of the assembled mechanism.
- Test fit the rotor over the hardware, checking for minimal shoe contact, then verify all retainers are secure and the parking brake engages and releases smoothly.
This method promotes controlled reassembly, dependable operation, and diagnostic confidence.
Adjust Shoe Clearance
Once the parking brake hardware is secured, shoe clearance is set by confirming the adjuster wheel is installed in the correct orientation and rotates downward to expand the E brake shoes.
During reassembly, alignment of the new shoes is verified, and the upper springs are checked to guarantee they are fully seated on their designated tabs for reliable brake shoe maintenance.
A notched release tool simplifies spring handling during prior disassembly, allowing clear access to the adjuster mechanism.
For effective shoe adjustment techniques, the rotor is test-fit over the shoes and observed for minimal contact. The adjuster wheel is then turned until the shoes just touch the rotor, followed by a slight backing off to restore smooth rotation.
This disciplined sequence supports accurate parking brake troubleshooting and dependable operation under load.
Reinstall the Brakes and Torque to Spec
Position the rotor on the hub after applying a thin layer of compound to the hub face to reduce future sticking. This step supports efficient service and reflects brake maintenance tips that help avoid seizure during later disassembly.
Before assembly continues, safety precautions require confirming the pads sit squarely in the sliders and press fully into place; common mistakes here cause drag, noise, and uneven wear.
- Install the caliper bracket and torque the bracket bolts to 65 ft-lbs for secure retention.
- Fit the caliper over the pads, then tighten the caliper-to-bracket bolts with a torque wrench to 20 ft-lbs.
- Mount the wheel, start all lug nuts by hand, then torque them evenly to 76 ft-lbs.
This sequence gives the operator mechanical certainty and liberation from preventable comebacks. A diagnostic mindset remains essential: uneven pad seating, skipped hand-started lug nuts, or guessed torque values can compromise brake function, hardware integrity, and long-term service reliability under load.
Frequently Asked Questions
How to Fix Parking Brake Malfunction on Toyota RAV4?
To fix a Toyota RAV4 parking brake malfunction, one should inspect cable wear, adjust shoes, verify linkage movement, clean pivot points, and replace damaged parts. These brake system maintenance tips support accurate DIY repairs safely.
Is 2011 a Good Year for a Toyota RAV4?
Yes—five-star NHTSA scores indicate 2011 is generally a good RAV4 year, with strong reliability ratings, balanced fuel efficiency, and solid safety features. A diagnostic review should still verify brake wear and transmission behavior before purchase.
What Is the Class Action Lawsuit Against the Toyota RAV4?
The class action alleges defective Toyota RAV4 parking brake cables corrode and fail, causing unintended movement. Plaintiffs seek damages for parking brake repairs, diminished value, and safety risks, reinforcing scrutiny over RAV4 reliability issues and Toyota safety recalls.
How Do I Replace the Parking Brake Cable?
Under raised chassis shadows, one replaces the parking brake cable by removing wheels, disconnecting interior and rear links, then reversing installation. Cable installation tips: verify routing; common issues include binding clips; maintenance advice recommends final engagement testing.
Conclusion
With the driver-side cable replaced, adjusted, and verified, the 2011 RAV4 parking brake returns to specified function. Lever travel, shoe contact, and wheel retention should now test within normal range. Each fastener, spring, and adjuster serves as a calibrated link in the system’s chain, and the restored cable stands as the final strand drawn tight. When torque values and inspection points are observed, the mechanism holds the vehicle like an anchor set cleanly into firm ground.
