Last updated: September 22, 2026. This guide was revised for the redesigned sixth-generation 2026 Toyota RAV4 and checked against Toyota’s current U.S. specifications.
Yes, you can set up a mattress or sleeping pad in a 2026 Toyota RAV4, but do not assume older RAV4 cargo-floor measurements still apply. Toyota lists approximately 37.8 cubic feet of cargo space behind the second row and 70.4 cubic feet with the second row folded for the 2026 RAV4 Hybrid. However, Toyota does not publish every linear cargo-floor measurement needed to guarantee that a standard household mattress will lie flat.
For that reason, a flexible Twin-size mattress, trifold foam pad, or vehicle-specific inflatable mattress is the safest starting point for one sleeper. A Full, Twin XL, or Queen should not be purchased for this purpose until you measure your exact vehicle, front-seat position, wheel-housing clearance, and liftgate opening.
Key Takeaways
- Verified 2026 Hybrid cargo volume: Approximately 37.8 cu. ft. behind the second row and 70.4 cu. ft. with the second row folded.
- Best standard size to test first: A flexible Twin mattress or camping pad, typically about 38 x 75 inches.
- Do not reuse old cargo dimensions blindly: The 2026 RAV4 begins a redesigned sixth generation.
- Measure before buying: Toyota does not publish one complete set of 2026 cargo-floor length, narrowest floor width, and hatch-opening dimensions for every configuration.
Understanding the Cargo Space of the 2026 Toyota RAV4
The 2026 RAV4 is not simply a carryover of the 2019–2025 model. It begins the sixth generation and is offered with Hybrid and Plug-in Hybrid powertrains rather than a gas-only powertrain.
For the 2026 RAV4 Hybrid, Toyota’s current U.S. guide lists approximately 37.8 cubic feet behind the second row and 70.4 cubic feet behind the front row with the second row folded. Cargo space and packaging can vary by configuration, especially between Hybrid and Plug-in Hybrid models, so check the specifications for the exact vehicle you own.
Cubic feet alone cannot tell you whether a mattress will fit. A mattress is limited by usable length, narrowest width, wheel-housing shape, hatch opening, front-seat position, and the slope of the folded rear seatbacks. Measure those points before buying a rigid mattress or cutting a sleeping platform.
Four Measurements to Take Before Buying a Mattress
- Usable sleeping length: Measure from the closed liftgate area to the nearest front-seat obstruction with the rear seatbacks folded.
- Narrowest floor width: Measure the tightest point between interior trim or wheel-housing intrusions.
- Width above the wheel housings: If you plan to use a raised platform, measure the usable width at the platform’s planned height.
- Liftgate opening: Measure the narrowest opening width and height so the mattress can actually be loaded into the vehicle.
What Size Mattress Fits in a 2026 Toyota RAV4?
Standard mattress dimensions are useful for planning, but they are not a guarantee of vehicle fit. A typical Twin is about 38 x 75 inches, Twin XL about 38 x 80 inches, Full about 54 x 75 inches, and Queen about 60 x 80 inches. Flexible foam and inflatable mattresses are easier to adapt to a tapered cargo bay than rigid innerspring mattresses.
| Mattress Size | Typical Dimensions | 2026 RAV4 Guidance |
|---|---|---|
| Twin | About 38 x 75 in. | Best standard household size to test first for one sleeper. Measure usable length and narrowest width before ordering. |
| Twin XL | About 38 x 80 in. | Extra length makes fit more difficult. It may require moving a front seat forward and safely supporting any gap behind it. |
| Full | About 54 x 75 in. | Do not assume it will lie flat on the cargo floor. Flexible foam, custom contouring, or a measured raised platform may be necessary. |
| Queen | About 60 x 80 in. | Not a practical standard lay-flat choice without confirming every dimension. A compressed or folded foam mattress may be transportable, but transport fit is different from sleeping fit. |
If you want the least guesswork, choose a vehicle-specific or custom-cut mattress whose manufacturer explicitly lists compatibility with the redesigned 2026 RAV4. Do not assume a product made for a 2019–2025 RAV4 has the same contours.
Get Your RAV4 Ready for a Comfortable Night’s Sleep
Park on a legal, stable, reasonably level surface and fold the rear seatbacks according to the owner’s manual. Move the front seats only while parked, then check that your mattress does not press against controls, interfere with doors, or create an unstable unsupported section.
Before sleeping, move loose gear into secured storage so items cannot shift onto you or block an exit.
Three common ways to improve the sleeping surface are:
- Sleeping platform: A properly measured platform can bridge changes in floor height and may create a wider sleeping surface above the wheel housings. It must be stable and adequately supported.
- Custom-cut foam: Foam can be trimmed around interior contours and usually adapts better than a rigid household mattress.
- Trifold or roll-up pad: Easier to store during the day and less likely to create loading problems at the liftgate.

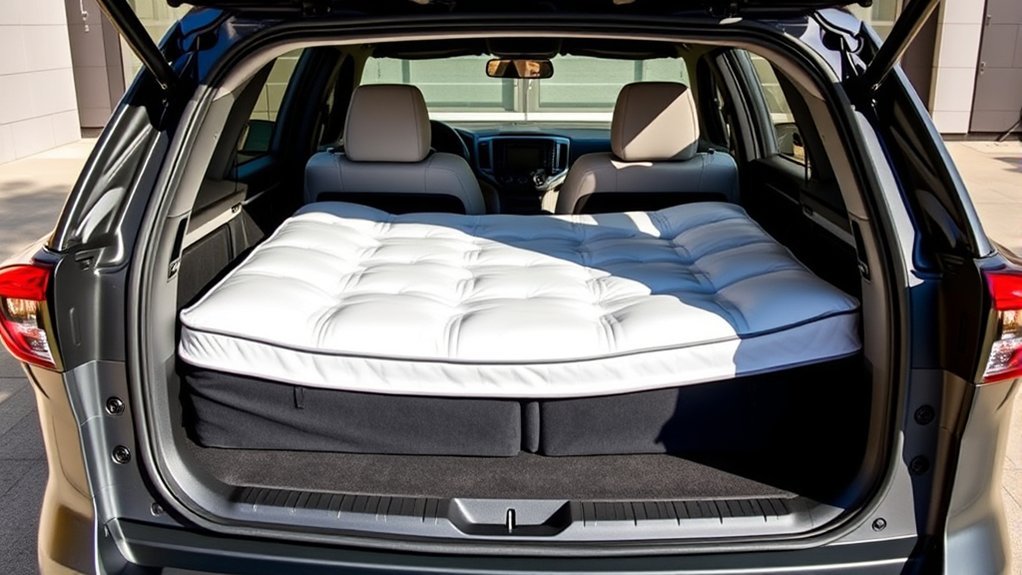

Is a Mattress Better Than Reclining the Seats for Sleeping?
For an overnight stay, a mattress or camping pad usually gives you a more continuous sleeping surface than reclining a front seat. The better choice depends on your height, sleeping position, available cargo length, and how level the folded rear area is in your vehicle.
A 75-inch Twin may suit a shorter solo sleeper, while a taller person may need additional usable length. Instead of assuming an 80-inch Twin XL will fit, measure from the liftgate to the front-seat obstruction and decide how any gap will be supported before buying the mattress.
[Amazon Products Picked for You]
【CUSTOM FIT FOR Toyota RAV4】Transform the rear cargo area into a welcoming place to relax and recharge. Simply fold down the rear seats and unfold the mattress to create a comfortable sleeping space for peaceful nights, spontaneous getaways and memorable journeys with family or friends.
Designed for Toyota RAV4 Hybrid Intended for the cargo area of the Toyota RAV4 Hybrid with the rear seats fully folded down. Please confirm your vehicle brand, model, and model year before ordering to help avoid fitment issues.
【Precision Cut for Perfect Fit 】Our trunk mat is designed to fit the Toyota RAV4 2019 2020 2021 2022 2023 2024 2025, ensuring a seamless and snug installation that perfectly contours your vehicle's cargo area.
Building a Custom Sleeping Platform for Comfort
A custom platform can level the sleeping surface and create storage underneath, but it should be designed around measurements from your exact RAV4 rather than dimensions copied from an older model year.
To plan the platform:
- Measure the vehicle first: Record usable length, narrowest floor width, width at the planned platform height, and changes in floor height.
- Plan adequate support: Use materials and supports appropriate for the span and the total sleeping load. Avoid unsupported extensions that could collapse when someone moves onto them.
- Keep exits accessible: Do not block doors, seat controls, safety equipment, or an emergency exit route.
- Design for removal: A folding or multi-piece platform is easier to remove when the RAV4 returns to passenger or cargo duty.
Best Types of Mattress for a 2026 RAV4
The material and shape matter as much as the nominal mattress size.
- SUV air mattress: Packs down small and can conform better to an irregular cargo bay. Check that the product explicitly supports your model year or compare its inflated dimensions with your measurements.
- Trifold memory foam: Easy to fold during the day and easier to trim or contour than a household innerspring mattress.
- Roll-up camping pad: The simplest choice for one sleeper when storage space matters more than mattress thickness.
- Custom-fit mattress: Potentially the cleanest fit around wheel housings and interior trim, but confirm that the pattern is specifically for the redesigned 2026 RAV4.
Fit tip: Buy from your measurements, not from cargo volume alone. A vehicle can have enough cubic feet overall while still being too short or too narrow at one critical point for a specific mattress.
[Amazon Products Picked for You]
COMPLETELY COVERED WITH THICKENED FLOCKING MATERIAL： This suv air mattress is made of selected flocking material, covering the top, bottom and sides, showing high-quality texture and durable quality. The front and back sides are cleverly matched with different colors, giving us the power of free choice, making every trip a double enjoyment of vision and touch, and perfectly interpreting the high-end choice of comfortable rest space in the car.
COMFORT: With a bed height of 22" this luxurious and unique dual-layer air pocket system contours to your body for supreme comfort; with a velvety top and sides that are soft to the touch, and resist punctures and abrasions; on-the-go carry bag included.Amperage : 0.65 A
✔ FIBER-TECH BEAM CONSTRUCTION – Comprised of thousands of high-strength polyester fibers that provide enhanced comfort, stability and support; Fiber-Tech Beam Construction can withstand more weight and pressure without losing its comfort or stability

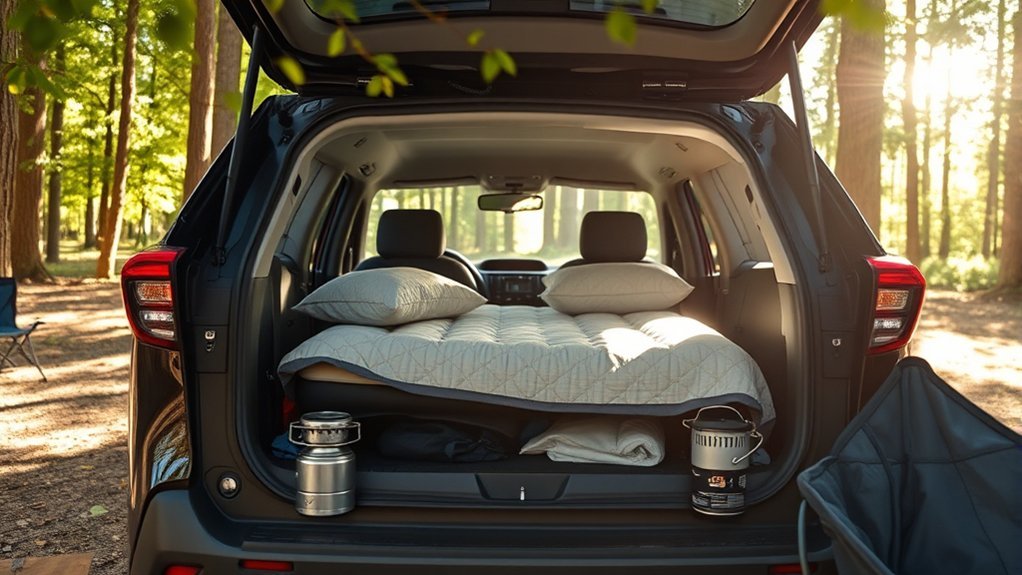

Essential Accessories for a Comfortable Camping Experience
- Window shades or privacy curtains: Block light and improve privacy while parked.
- Screened ventilation: Cracking windows with bug screens can improve airflow without leaving a wide opening.
- Battery-powered fan: Helps circulate air and reduce condensation without depending on the vehicle’s starter system.
- Rated leveling equipment: Useful when a legal campsite is slightly uneven; use only equipment intended for the vehicle and surface.
- Small interior light: A rechargeable light is easier to manage than repeatedly using the vehicle’s interior lighting.
Car-camping safety: Vehicle exhaust contains carbon monoxide, which is colorless and odorless. Do not use charcoal, a camping stove, or another fuel-burning appliance inside the RAV4. Avoid sleeping with the vehicle idling, keep the exhaust outlet clear of snow or debris, and maintain a safe way to exit the vehicle. If the liftgate is open while the vehicle is running, exhaust can be drawn into the cabin.
What Determines Sleeping Comfort in a RAV4?
Your height, mattress thickness, front-seat position, floor slope, and whether you sleep alone or with another person matter more than the vehicle’s advertised cargo volume.
How Your Height Changes the Setup
A standard Twin is about 75 inches long, while a Twin XL is about 80 inches. If your sleeping length approaches those numbers, measure the actual hatch-to-seat distance with the front seat in the position you plan to use. Taller campers may need to move a front seat forward and bridge the remaining gap with a properly supported extension.
Custom Mattress and Footwell Solutions
Some vehicle mattresses and sleeping platforms use extensions over the rear footwell to create extra supported length. These can be useful, but the extension must match the 2026 interior geometry and support the sleeper’s weight safely. Confirm the product dimensions rather than relying only on a generic “RAV4 compatible” label.
Related Guides
Frequently Asked Questions
Can I sleep in my RAV4 with a mattress installed?
Yes. A flexible mattress or camping pad can create a practical sleeping area after the rear seatbacks are folded. Measure your exact 2026 RAV4 first, keep an exit accessible, ventilate the cabin safely, and do not use fuel-burning cooking or heating equipment inside the vehicle.
How do I secure a mattress in my RAV4?
While parked, a properly sized foam or inflatable mattress normally stays in position because it is contained by the cargo area. Before driving, deflate, fold, or otherwise secure the mattress and all camping gear so nothing can move around the cabin or obstruct the driver’s view or controls.
Will a Queen mattress fit in the RAV4?
Do not assume a standard Queen will lie flat in a 2026 RAV4. A typical Queen is about 60 x 80 inches, while Toyota does not publish every linear cargo measurement needed to guarantee that fit. A compressed or flexible Queen may be transportable, but transporting a mattress is different from having a flat, usable sleeping surface.
Can I use an inflatable mattress in my RAV4?
Yes. Inflatable SUV mattresses are useful because they pack down small and can conform to an irregular cargo area. Compare the mattress’s inflated dimensions with measurements from your own 2026 RAV4, and confirm model-year compatibility before buying.
What is the weight limit for a mattress in my RAV4?
Use the Tire and Loading Information label and owner’s manual for your exact RAV4 rather than a generic payload estimate. The combined weight of occupants and cargo must stay within the vehicle’s stated total load capacity, so count the mattress, sleeping platform, passengers, water, luggage, and other camping equipment together.
Conclusion
A mattress can work in a 2026 Toyota RAV4, but there is no single standard household size that should be treated as a guaranteed fit without measuring the vehicle. A flexible Twin, trifold foam pad, SUV air mattress, or properly verified custom-fit mattress is the easiest place to start.
Before ordering, measure usable sleeping length, narrowest cargo width, width above the wheel housings, and the liftgate opening. That takes a few minutes and is much more reliable than applying cargo dimensions from an older RAV4 generation to the redesigned 2026 model.
