On a U.S.-market, left-hand-drive 2019 Toyota Camry, the OBD2 port is under the driver’s side of the dashboard in the lower footwell, beneath the steering-column area. Look upward along the lower panel for a fixed, trapezoid-shaped 16-pin connector. It can be difficult to see from the seat because the opening faces downward or sits slightly recessed, so a flashlight, small mirror, or phone camera can help.
Last updated: September 22, 2026
Method: This guide cross-checks Toyota owner and service information, California Air Resources Board OBD-II guidance, SAE diagnostic-connector information, and ISO diagnostic-communication references. It does not claim hands-on testing of every 2019 Camry configuration.
Quick Answer
For a U.S.-market, left-hand-drive 2019 Camry, slide the driver’s seat back and look upward beneath the steering column. Find the fixed, trapezoid-shaped 16-pin connector along the lower dashboard. Connect the scanner with the vehicle off, then use the ignition mode required by the scanner. Use a flashlight or phone camera if needed, and do not confuse the DLC3 with a loose wiring plug.
Key Takeaways
- The U.S.-market 2019 Camry’s OBD2 connector is under the driver-side lower dash, beneath the steering-column area.
- Identify it by its fixed mounting and 16-pin trapezoid shape, not by color.
- Park first and keep the scan-tool cable away from the brake and accelerator pedals.
- Read and save codes, freeze-frame data, and readiness status before clearing anything.
- A basic reader may show standardized emissions-related powertrain information; Toyota-enhanced tools can access additional vehicle systems when the tool supports them.
At a Glance
| Vehicle Scope | 2019 Toyota Camry, primarily U.S.-market left-hand-drive models |
| Time Required | About 2–5 minutes |
| Difficulty | Easy |
| Tools Needed | Flashlight; optional mirror or phone camera; OBD2 scanner if diagnosing |
| Cost | Free to locate; scanner cost varies |

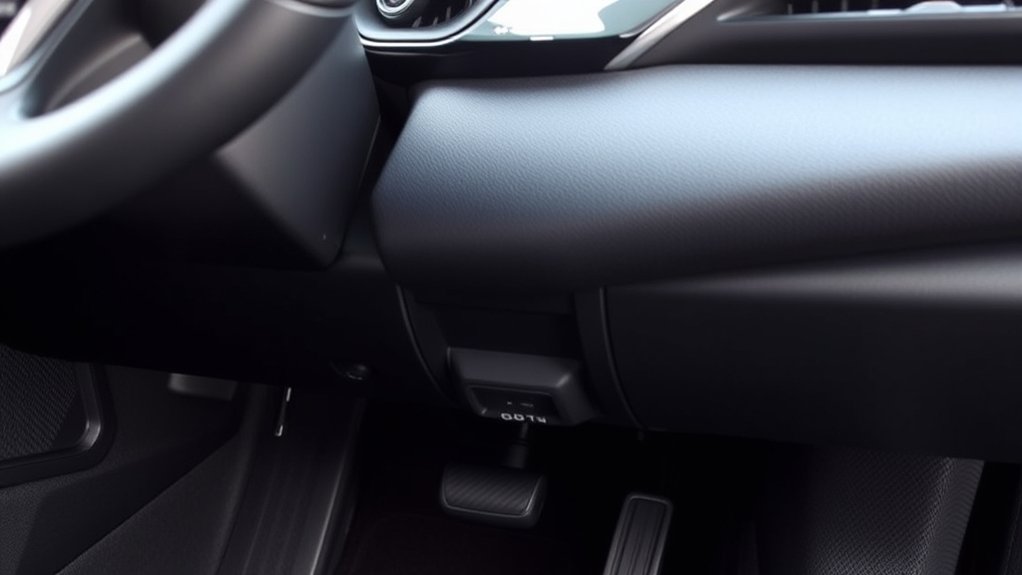

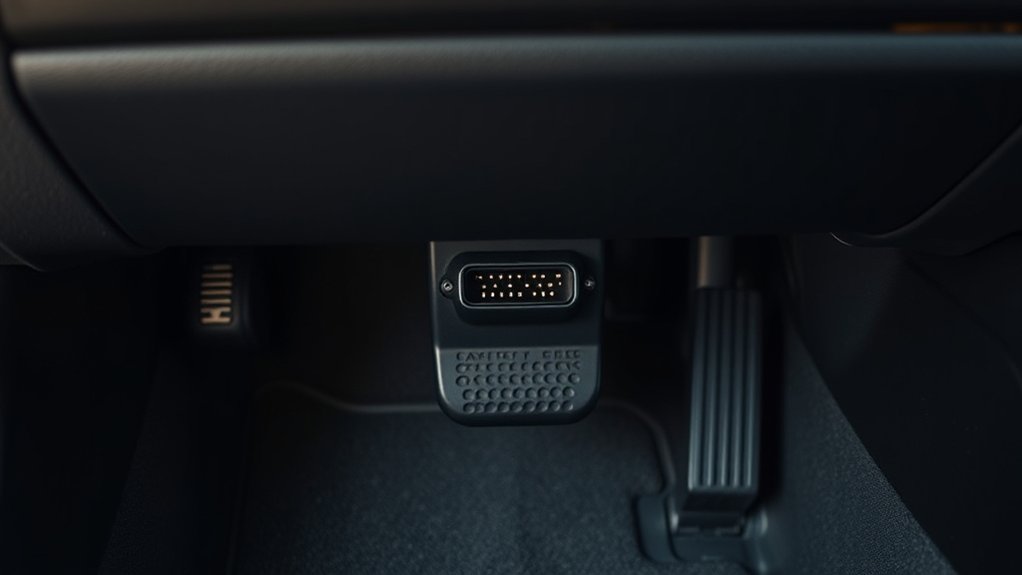

Where Is the OBD2 Port on a 2019 Toyota Camry?
Toyota commonly calls this connector the DLC3, or data link connector 3. On a U.S.-market, left-hand-drive 2019 Camry, it is in the driver’s lower footwell under the instrument panel, beneath the steering-column area. The connector is mounted to the vehicle rather than hanging freely.
The opening is a standardized, two-row, 16-pin trapezoid. Its plastic color can vary, so shape, location, and fixed mounting are more dependable identifiers than claims that it must be black, white, or purple. The physical connector is covered by the SAE J1962 diagnostic-connector standard.
Other markets can use different dashboard layouts or mounting positions. If your Camry is right-hand drive or its interior does not match this description, use Toyota information for the exact market and VIN instead of assuming the U.S. position applies.
Warning: Park on a level surface, shift to Park, set the parking brake, and switch the vehicle off before reaching into the footwell. Keep your body, scanner, and cable clear of both pedals. Never search for or connect the port while driving.
How Do You Find the Connector?
- Move the seat back. Give yourself enough room to look beneath the dashboard without pressing a pedal.
- Illuminate the lower dash. Aim a flashlight upward under the steering column and along the lower panel edge.
- Look for a mounted connector. The port should be fixed in place, with its opening facing downward or slightly toward you.
- Confirm the shape. Identify the wide, trapezoid-shaped opening with two rows of eight terminal positions.
- Check Toyota information if needed. Toyota provides a 2019 Camry manuals and warranties page, while detailed repair information is available through the Toyota Technical Information System.
Pro Tip: Record a short video with your phone’s rear camera while slowly moving it under the dash. Reviewing the video is often easier than holding an uncomfortable position and trying to see the connector directly.
How Do You Connect an OBD2 Scanner Safely?
Connect the scanner with the vehicle switched off, then follow the scanner manufacturer’s instructions for the required ignition mode. Many readers require the ignition in ON mode with the engine off for an initial scan, while some live-data procedures require the engine to run.
- Turn the ignition off and inspect the connector for bent terminals, moisture, debris, or damage.
- Align the scanner plug with the trapezoid shape. Insert it straight and do not force it.
- Follow the scanner prompt. Use the ignition or engine state specified for that test.
- Read and save stored, pending, and permanent codes when supported. Also save freeze-frame data and emissions-readiness status.
- Disconnect the scanner only as directed by its manufacturer, then route or remove the cable so it cannot interfere with the pedals.
Note: Do not clear codes simply to switch off the check-engine light. Clearing diagnostic memory can erase useful evidence and reset readiness indicators. The California Air Resources Board explains that incomplete readiness indicators can prevent a vehicle from passing an OBD-based emissions inspection until the required self-tests run again.
Why Does the OBD2 Port Matter?
The OBD2 port gives compatible test equipment a standardized path to emissions-related diagnostic information and, when supported by the scanner, additional Toyota systems. The California Air Resources Board explains that OBD monitors emissions-related components, alerts the driver when qualifying malfunctions are detected, and stores information useful for diagnosis.
For a broader explanation of code types, scanner functions, and Toyota-specific diagnostic coverage, see our Toyota Camry OBD2 system explained guide. This page remains focused on locating and using the connector on the 2019 Camry.
Diagnostic Trouble Codes
Diagnostic trouble codes, or DTCs, identify the system and type of fault the vehicle detected. A code such as P0301 points to a cylinder-one misfire condition, but it does not prove which part caused it. Diagnosis may still require inspection, testing, service information, and vehicle history.
- Stored codes relate to faults that met the conditions for storage.
- Pending codes may indicate a fault detected before it has matured into a stored code.
- Permanent codes cannot normally be erased with a simple clear command; the system must confirm the repair through its monitoring logic.
Sensor and Monitor Data
A compatible scanner may show engine speed, coolant temperature, fuel-trim information, oxygen-sensor data, vehicle speed, freeze-frame information, and emissions-readiness monitors. Available parameters vary by scanner and control module.
The 2019 Camry uses CAN-based diagnostic communication. ISO 15765-4:2021 specifies requirements for CAN-based communication between an in-vehicle diagnostic network and equipment connected through the diagnostic link connector.
Generic Versus Toyota-Enhanced Coverage
A basic OBD2 reader is generally intended for standardized emissions-related powertrain codes and data. It may not read every Camry system. ABS, airbag, body, hybrid-control, transmission, and manufacturer-specific functions can require a scan tool with Toyota-enhanced coverage and current software.
An OBD2 code is a starting point for diagnosis, not an automatic instruction to replace the component named in the code description.

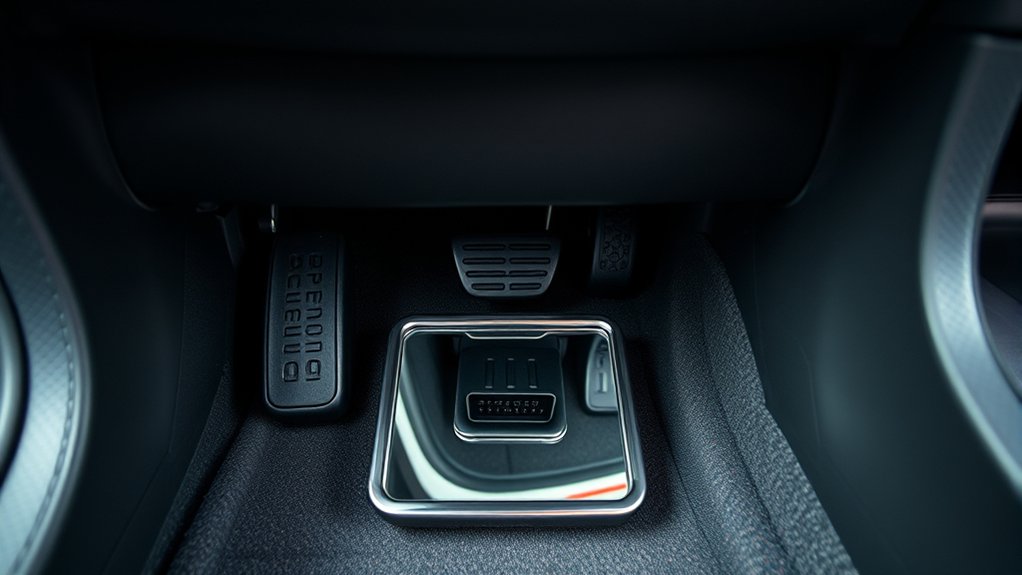

Tips for Using a Mirror to Locate Your OBD2 Port
You do not need to twist your neck under the dashboard. A mirror or phone camera can show the underside of the lower panel while you remain outside the driver’s seat.
Using an Angled Mirror Effectively
- Use a small mirror that fits safely in the footwell.
- Shine the flashlight toward the mirror rather than directly into your eyes.
- Move the mirror slowly along the underside of the steering-column area.
- Look for the fixed trapezoid opening, not every loose electrical connector.
Adjusting the Seat Position
Slide the seat fully rearward and recline it slightly if that gives you a clearer view. Open the driver’s door and kneel beside the sill rather than placing your upper body between the seat and pedals. Return the seat to your normal driving position when finished.
Using a Smartphone Camera
Switch on the phone’s flashlight, use the rear camera, and hold the phone below the lower dash with the screen facing you. A photo or short video can reveal the port’s shape and mounting position. Keep the phone away from pedal linkages and do not press or pull on nearby wiring.
Can’t Find the OBD2 Port? Here’s What to Do
If the connector is not immediately visible, avoid removing trim at random. Work through these checks:
- Change your viewing angle. The port may be recessed or face downward, making it invisible from the seat.
- Check the full lower panel area. Search beneath the steering column and along the driver-side lower dash edge rather than relying on one vague reference point.
- Look for an installed adapter. A dealer accessory, insurance device, tracker, or extension cable may already occupy the port.
- Do not pull on wiring. The correct port is mounted and shaped to accept a standard OBD2 plug.
- Verify the market and vehicle. Dashboard trim can differ by market, production specification, or prior repair. Use information for the exact VIN when possible.
Fastest Search Pattern if the Port Is Hard to See
Move the seat back, open the driver’s door, use strong lighting, and view the underside of the dashboard with a mirror or phone camera. Confusion often comes from looking horizontally at the dashboard instead of upward into the footwell, or from relying on connector color rather than its standardized shape.
If the port appears loose, damaged, pushed behind the panel, or occupied by unfamiliar hardware, stop before forcing anything. A Toyota dealer or qualified repair shop can identify the connector and inspect its mounting without risking damage to nearby wiring.
OBD2 Scanner Troubleshooting
| What Happens | Likely Area | First Checks |
|---|---|---|
| Scanner has no power | Tool, connector power/ground, vehicle battery, fuse, or wiring | Reseat the plug, inspect the port, verify battery condition, try a known-good scanner, then use the exact 2019 Camry fuse/wiring information if needed. |
| Scanner powers on but will not communicate | Ignition mode, scanner compatibility, adapter/app connection, damaged terminals, or network fault | Use the scanner-required ignition mode, connect directly, verify 2019 Camry support, and try another compatible tool. |
| Engine data works but ABS, airbag, body, or hybrid data does not | Scanner coverage limitation | Check the scanner’s Toyota-enhanced system coverage rather than assuming the vehicle has a communication fault. |
The Scanner Does Not Power On
First confirm that the plug is fully seated and correctly oriented. Try a known-compatible scanner if available. A no-power condition can involve the scan tool, connector power or ground, vehicle battery voltage, or a related fuse. Do not bridge terminals or probe the connector with improvised tools. Use the 2019 Camry wiring information and fuse procedure, or have the circuit tested professionally.
The Scanner Powers On but Will Not Communicate
Confirm that the ignition mode matches the scanner’s instructions. Close other scanner apps, re-pair a Bluetooth adapter if applicable, and verify that the tool supports the 2019 Camry. Remove splitters, trackers, or extension cables when practical and connect the scanner directly. A basic reader may communicate with the engine controller but not with Toyota-specific modules. Communication faults, damaged terminals, or incompatible software require further diagnosis.
The Check-Engine Light Is Flashing
A flashing malfunction indicator can signal a fault severe enough to risk catalytic-converter damage. The California Air Resources Board OBD II fact sheet advises prompt attention when the warning light blinks. Reduce engine load, avoid continued driving if the engine is running poorly, and arrange qualified diagnosis.
Should You Leave a Dongle Plugged In?
Use only a reputable device designed for continuous connection and follow its power-management instructions. Unknown or poorly secured dongles can create battery, privacy, or cybersecurity concerns. Research on third-party OBD dongles has documented the security importance of controlling what devices can access vehicle networks.
Frequently Asked Questions
Where exactly is the OBD2 port on a 2019 Toyota Camry?
On a U.S.-market, left-hand-drive 2019 Camry, it is under the driver-side lower dashboard beneath the steering-column area. Look upward along the lower panel for a fixed 16-pin trapezoid-shaped connector.
Is the OBD2 port in the same place on a 2019 Camry Hybrid?
On U.S.-market, left-hand-drive models, the diagnostic connector remains in the driver-side lower-dash area. Hybrid-specific codes and data may require a Toyota-enhanced scanner even though the physical connector accepts a standard OBD2 plug.
Why will my 2019 Camry OBD2 scanner not turn on?
Check plug orientation, seating, scanner condition, and the vehicle’s 12-volt battery condition first. If another known-good scanner also has no power, the connector’s power supply, ground, related fuse, or wiring may need testing using 2019 Camry service information.
Why does the scanner power on but fail to communicate?
Confirm the ignition mode required by the scanner, connect directly without unnecessary splitters or adapters, verify 2019 Camry compatibility, and try another known-compatible tool. Damaged terminals, network faults, or incompatible software can also prevent communication.
Can a basic OBD2 scanner read the Camry’s ABS, airbag, body, or hybrid codes?
Not necessarily. Basic readers primarily target standardized emissions-related engine and powertrain information. ABS, SRS, body, hybrid-control, transmission, and manufacturer-specific functions may require Toyota-enhanced scanner coverage.
Will clearing an OBD2 code fix the problem?
No. Clearing diagnostic memory does not repair the cause. It can erase useful diagnostic information, temporarily switch off the warning light, and reset emissions-readiness monitors to incomplete.
What should I do if the check-engine light is flashing?
Reduce engine load and avoid continuing to drive if the engine is running poorly. A flashing malfunction indicator can accompany a fault capable of damaging the catalytic converter, so arrange prompt diagnosis.
Conclusion
On a U.S.-market, left-hand-drive 2019 Toyota Camry, the OBD2/DLC3 connector is under the driver-side lower dashboard beneath the steering-column area. Use a flashlight or phone camera to identify the fixed 16-pin trapezoid connector, connect the scanner with the vehicle off, and keep the cable clear of the pedals. Save codes, freeze-frame data, and readiness status before clearing anything, and distinguish a dead scanner, a communication failure, and limited Toyota-module coverage before assuming the vehicle itself has a diagnostic-network problem.
Sources
- Toyota — 2019 Camry Manuals and Warranties — vehicle-specific owner-information access.
- Toyota Technical Information System — Toyota repair and diagnostic service information.
- California Air Resources Board — OBD II Systems Fact Sheet — OBD purpose, warning-light guidance, readiness indicators, and model-year requirements.
- California Air Resources Board — On-Board Diagnostic Program — official overview of emissions-related monitoring and stored fault information.
- ISO 15765-4:2021 — requirements for CAN-based diagnostic communication through the vehicle diagnostic link connector.
- SAE J1962 — standardized diagnostic-connector specification.
- Klement, Pöhls, and Katzenbeisser — Man-in-the-OBD — research concerning privacy and security risks associated with third-party OBD dongles.
