Toyota Tundra OBD2 codes identify a circuit, monitor result, or operating condition that needs diagnosis; they do not automatically prove that the sensor or component named in the description has failed. Your truck’s model year, engine, transmission, and hybrid status determine which code format, tests, and specifications apply. On newer Tundras, record the complete DTC, including any failure-type suffix such as -00 or -16.
Quick Answer
Common Toyota Tundra OBD2 code families include P0722 for an output-speed-signal fault on applicable transmissions, P0171 or P0174 for lean fuel trim, P0440-series EVAP faults, P0420 or P0430 for catalyst-efficiency faults, and P0300 for random or multiple-cylinder misfires. The exact code set varies by model year and powertrain, and newer Toyota diagnostic systems may add a failure-type suffix. Save every code and its scan data before clearing memory, diagnose the root cause, and stop driving if the check-engine light flashes or the truck runs badly.
Key Takeaways
- A trouble code points you toward a system or test failure, not necessarily a bad part.
- Record stored, pending, and permanent codes with freeze-frame data before clearing memory.
- Record the complete DTC, including a suffix such as -00, -16, -27, or -85 when your scan tool displays one.
- A flashing check-engine light or severe shaking can indicate a catalyst-damaging misfire.
- Basic readers may miss transmission, ABS, network, four-wheel-drive, and hybrid-system codes.
- Use the repair procedure and specifications for your exact Tundra model year and powertrain.
Last updated: September 22, 2026.
At a Glance
| Time Required | About 10 to 30 minutes for an initial scan and visual inspection; complete testing may take longer. |
| Difficulty | Beginner for reading codes; intermediate to advanced for circuit, fuel, emissions, transmission, or mechanical testing. |
| Tools Needed | OBD2 scan tool, flashlight, basic hand tools, and model-specific Toyota repair information. Some tests require a smoke machine, pressure gauge, multimeter, oscilloscope, or enhanced Toyota-capable diagnostic tool. |
| Cost | The initial scan may cost nothing if you own a reader. Diagnostic and repair costs depend on the confirmed fault. |
Model Year Matters
Toyota Tundra diagnostics span three substantially different vehicle generations: 2000–2006 first-generation trucks, 2007–2021 second-generation trucks, and the redesigned third-generation Tundra introduced for 2022. The 2022-and-newer generation uses twin-turbo V6 powertrains, an available i-FORCE MAX hybrid system, and a 10-speed automatic transmission.
Do not assume that a sensor location, wiring diagram, transmission test, code suffix, or repair procedure from one generation applies to another. Match every code to the truck’s exact model year, engine, transmission, and hybrid status before testing parts.
Common Toyota Tundra OBD2 Codes
The following codes are common examples, but your Tundra may store additional generic or Toyota-specific codes. Generic diagnostic trouble code terminology is standardized through SAE J2012. Newer diagnostic systems can also report failure-type information after the five-character DTC. Always record the complete code shown by the scan tool and confirm Toyota’s description and test procedure for your exact vehicle.
| Code | General Meaning | Useful First Checks | Typical Urgency |
|---|---|---|---|
| P0722 | Output Speed Sensor Circuit No Signal on applicable transmission systems | Confirm that P0722 applies to the exact model year and transmission, then check related transmission codes, live speed data, connector condition, wiring, the sensor circuit, and applicable internal signal components. | Prompt diagnosis, especially if shifting is abnormal |
| P0171 | System Too Lean, Bank 1 | Fuel trims, intake leaks, PCV system, MAF data, fuel pressure, injectors, purge operation, exhaust leaks, and air-fuel-ratio sensor data | Prompt diagnosis; urgent if misfiring or losing power |
| P0174 | System Too Lean, Bank 2 | Compare both banks. A fault affecting both banks often points toward a shared air-metering, intake, purge, or fuel-supply problem. | Prompt diagnosis |
| P0440 | Evaporative Emission Control System Malfunction where this generic code is used | Fuel-cap seal, EVAP hoses, canister, purge valve, vent valve, wiring, companion EVAP codes, and an approved low-pressure smoke test | Usually service soon if drivability is normal |
| P0441 | Incorrect EVAP Purge Flow | Purge-valve operation, hoses, wiring, vapor lines, and related EVAP codes | Service soon |
| P0455 | Large EVAP Leak Detected | Missing or loose fuel cap, damaged seal, disconnected hose, stuck valve, or a large vapor-system leak | Service soon |
| P0420 | Catalyst System Efficiency Below Threshold, Bank 1 | Misfire and fuel-trim codes, exhaust leaks, oil or coolant consumption, sensor data, and converter condition | Prompt diagnosis; do not replace the converter from the code alone |
| P0430 | Catalyst System Efficiency Below Threshold, Bank 2 | Use the same checks as P0420, then identify the correct bank from Toyota service information. | Prompt diagnosis |
| P0300 | Random or Multiple Cylinder Misfire Detected | Full DTC including any suffix, cylinder-specific codes, spark plugs, coils, injectors, fuel pressure, intake leaks, compression, and valve timing | Urgent if the light flashes or the engine shakes |
| P0101 | Mass or Volume Air Flow Circuit Range/Performance | Air filter and ducting, unmetered-air leaks, MAF contamination, PCV connections, connector condition, wiring, and live airflow data | Prompt diagnosis |
| P3000-xx | Hybrid/EV battery-control-system DTC family on hybrid-equipped Tundras; the suffix identifies the specific failure type | Record the complete P3000-xx code and retrieve all companion hybrid, engine, battery, and information codes with a Toyota-capable diagnostic tool. | Qualified hybrid diagnosis required |
Code-format note: A newer Toyota scan may show a five-character code plus a failure-type suffix, such as P0171-00, P0420-00, P0300-27, or P3000-16. Do not drop the suffix when recording the scan. It can change the exact diagnostic definition and test path.
Note: “Bank 1” means the side containing cylinder 1, not automatically the driver’s or passenger’s side. Confirm the bank layout for your engine before testing or replacing anything.
An OBD2 code identifies the circuit or operating condition that failed a monitor. It does not prove that the part named in the code description is defective.
Before You Clear a Code, Save the Evidence
Connect your scanner with the ignition in the position required by its instructions. Read every available module before disconnecting the tool or battery. A basic reader may display only generic engine and emissions codes, while a Toyota-capable tool may also access transmission, ABS, airbag, network, body, four-wheel-drive, and hybrid control modules.
Record the following information:
- Stored codes: Faults that have met the conditions required for the control module to store them.
- Pending codes: Faults detected during a monitoring cycle that may not have matured into a confirmed code.
- Permanent codes: Emissions-related codes that remain until the applicable monitor confirms that the fault is corrected. A scan-tool erase command or battery disconnect does not manually erase a permanent DTC.
- Freeze-frame data: A snapshot of operating conditions such as engine speed, load, coolant temperature, vehicle speed, and fuel trim when the fault was recorded.
- Readiness status: An indication of whether each emissions monitor has completed its self-check.
- The complete code: Include any suffix or failure-type information displayed by the scan tool instead of writing down only the first five characters.
Clearing memory or disconnecting the battery can erase useful diagnostic information and reset readiness monitors. The California Air Resources Board’s OBD II guidance explains that a vehicle may need additional normal driving or a specific manufacturer drive pattern before its monitors become complete again. Permanent DTCs are different: the control system clears them only after the underlying fault has been corrected and the required monitor verifies the repair.
Pro Tip: Photograph the scanner screens or save a full scan report before touching connectors, clearing memory, or replacing a part. That record can reveal whether the fault happens cold, hot, at idle, under load, or at a particular speed.
P0722: Output Speed Sensor Circuit No Signal on Applicable Tundras
P0722 means the control module is not receiving the expected transmission output-speed signal on a transmission system that uses this DTC. Earlier Tundra service information includes P0722 for the output-speed-sensor circuit, but you should not assume that the same sensor arrangement or test procedure applies to a redesigned 2022-and-newer Tundra with its different transmission architecture.
Possible symptoms include:
- An illuminated check-engine light
- Abnormal, delayed, or harsh shifting
- Transmission fail-safe operation
- Inaccurate or missing speed data on a scan tool
- A speedometer problem on some configurations
- Related transmission or communication codes
[Amazon Products Picked for You]

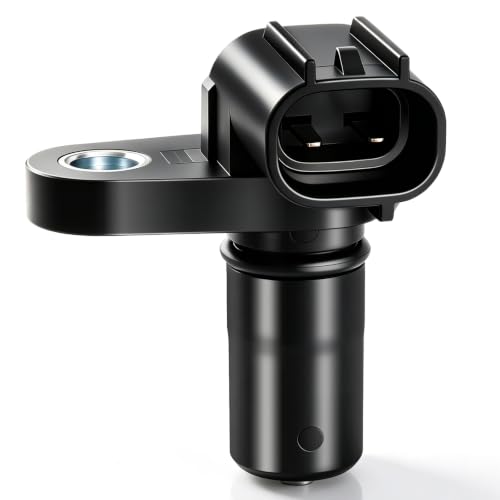

[Vehicle Fitment-1]: Compatible with Toyota Tundra 2007-2020 V8 5.7L, Sequoia 2008-2016 2018-2020 V8 5.7L, Land Cruiser 2008-2010 2013-2015 V8 5.7L; Compatible with Lexus LX570 2010 2013-2015 V8 5.7L --- Input or Output Shaft; Automatic Transmission
Replace Part Number: The transmission speed sensor replaces for 894130C020, 894130C021, 8941320010, 8941320011, SC570, 5S12624, 2VSS0737, 5S12623, SU14038
How to Diagnose P0722
- Confirm applicability first. Identify the exact Tundra model year, transmission, and Toyota DTC description before testing a sensor.
- Read every related code. Transmission-ratio, sensor-circuit, voltage, or communication codes may explain why the output-speed signal is missing.
- Check live data. Compare vehicle-speed and transmission-speed data while following safe test procedures. A fixed or implausible value helps narrow the fault.
- Inspect the connector and harness. Look for fluid intrusion, corrosion, damaged insulation, loose terminals, heat damage, or wiring near moving components.
- Use the correct wiring diagram. Test power, ground, signal, continuity, or waveform only as specified for that sensor type. Applying the wrong test voltage can damage a control circuit.
- Consider mechanical causes after circuit checks. Internal transmission or control-system faults may also interrupt the expected signal.
Clearing P0722 may temporarily turn off the warning light, but the code will return if the signal fault remains. Correct the cause first, then clear the code and verify the relevant speed data using the Toyota procedure for that transmission.
P0171: System Too Lean, Bank 1
P0171 means the engine control module has added more fuel than expected to correct a lean condition on bank 1. The engine may truly be receiving too much air or too little fuel, but inaccurate sensor information or another control problem can also make the module calculate excessive correction. On newer Tundras, the scan tool may display the full DTC as P0171-00 and may store additional fuel-system codes that help narrow the cause.
[Amazon Products Picked for You]
Fitment: Fit for Toyota 4Runner 2003 2004 2005 2006 2007 2008 2009, fit for Tundra 2005 2006 2007 2008 2009 2010, fit for Tacoma 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015, fit for FJ Cruiser 2007 2008 2009
COMPATIBILITY — Fits 2005-2007 Lexus LX470; 2005-2007 Toyota Land Cruiser; 2005-2009 Lexus GX470; 2005-2009 Toyota 4Runner; 2005-2009 Toyota Sequoia; 2005-2009 Toyota Tundra.
Package Contents:1*Intake Manifold Gasket Set
Common Causes of P0171
- Unmetered air entering through a cracked intake duct, loose clamp, vacuum hose, intake gasket, brake-booster line, or PCV connection
- A contaminated, biased, or incorrectly installed mass air flow sensor
- Low fuel pressure or restricted fuel delivery
- A fuel-pump or pressure-control fault
- Restricted or malfunctioning fuel injectors
- Incorrect purge-system operation that affects the air-fuel mixture
- An exhaust leak ahead of the air-fuel-ratio or oxygen sensor
- A sensor, connector, wiring, or heater-circuit fault
- Engine mechanical or valve-timing problems
Symptoms to Watch For
- Rough or unstable idle
- Hesitation during acceleration
- Reduced power
- Hard starting
- Misfire codes
- Poor fuel economy despite the “lean” code, because the control module may be adding extra fuel
- A check-engine light with few noticeable symptoms
Diagnostic and Repair Steps
- Compare both banks. If P0171 and P0174 appear together and both banks show similar fuel correction, investigate faults shared by the entire engine, such as intake leaks, MAF errors, purge problems, or inadequate fuel supply.
- Read companion fuel-system codes. On newer Tundras, related port-injection, direct-injection, or fuel-performance DTCs may change the diagnostic path.
- Compare idle and higher-speed fuel trims. A problem strongest at idle often supports an intake or vacuum leak, while a fault that remains under load may support air-metering or fuel-delivery problems. Use this only as a diagnostic pattern, not as proof.
- Inspect the air-intake and PCV systems. Check every connection between the MAF sensor and throttle body, plus vacuum and crankcase-ventilation hoses.
- Perform an approved smoke test. Introduce smoke with equipment intended for automotive intake testing and follow its pressure limits.
- Evaluate MAF and sensor data. Compare readings with Toyota specifications and with the engine’s operating condition.
- Test fuel pressure and delivery. Use the specified procedure and observe fuel-safety precautions.
- Check for exhaust leaks and mechanical faults. Repair leaks ahead of the sensing elements and investigate compression or timing concerns when other evidence supports them.
After the repair, clear the codes only after saving the original data. Test the truck under conditions similar to the freeze-frame record and confirm that fuel correction remains reasonable and the code does not return.
P0440: EVAP System Malfunction
P0440 is a generic evaporative-emission-system malfunction code used on applicable vehicles. The exact EVAP DTC set and component test sequence can vary by Tundra model year. The EVAP system stores fuel vapors and routes them into the engine under controlled conditions instead of releasing them into the atmosphere.
Start with these checks:
- Confirm the exact EVAP code set. Record P0440 plus any more-specific leak, purge, vent, pressure-sensor, or circuit codes.
- Inspect the fuel cap. Confirm that it is the correct cap, fully tightened, and free from seal damage, cracks, debris, or neck corrosion.
- Inspect hoses and vapor lines. Look for disconnections, splits, abrasion, impact damage, or deterioration near the canister and engine compartment.
- Test the purge and vent valves. Check electrical operation, commanded operation, sealing, and flow using the Toyota procedure.
- Inspect the charcoal canister. Physical damage, liquid-fuel saturation, or internal restriction may affect the system.
- Use an approved smoke machine. Follow the equipment and vehicle manufacturer’s low-pressure procedure to locate leaks safely.
Warning: Fuel vapor is flammable. Do not use an open flame, improvised heating device, shop air, or an unregulated pressure source to search for an EVAP leak.
After repairing the confirmed fault, clear the code and operate the truck as directed by the applicable Toyota verification procedure. EVAP monitors may require particular fuel-level, temperature, soak, and driving conditions before they run.
P0420: Catalyst Efficiency Below Threshold, Bank 1
P0420 means the control module’s catalyst monitor determined that the bank 1 catalyst system did not perform as expected. It does not prove that the catalytic converter is the first or only failed part. Newer Toyota diagnostic information may display this code with a suffix such as P0420-00, so save the complete DTC.
Before considering converter replacement:
- Repair active misfire codes. Unburned fuel can overheat and damage the catalyst.
- Correct lean or rich fuel-control faults. P0171, injector problems, MAF errors, excessive fuel delivery, or sensor faults can interfere with catalyst monitoring.
- Check for exhaust leaks. Leaks near the manifold, gaskets, flanges, or sensor ports can alter oxygen readings.
- Investigate oil or coolant consumption. Contamination can damage the converter and cause a replacement to fail again.
- Test upstream and downstream sensors. Evaluate heater circuits, response, wiring, and scan data according to the Toyota procedure.
- Confirm the correct bank and converter. Use engine-specific service information instead of assuming its location.
P0430 indicates the corresponding catalyst-efficiency problem on bank 2. The same diagnostic principles apply, but the correct bank, complete DTC, and components must be identified before testing.
If replacement is justified, use a converter approved for the exact vehicle and the emissions rules where it is registered. California has specific requirements for replacement catalytic converters, as explained in the CARB OBD II fact sheet.
P0300: Random or Multiple Cylinder Misfires
P0300 means the control module detected misfires affecting multiple cylinders or detected a random/multiple-cylinder misfire condition. Codes such as P0301, P0302, or P0303 identify a particular cylinder and can help narrow the diagnosis. On newer third-generation Tundras, Toyota diagnostic information can also use different P0300 failure-type suffixes, so record the full code rather than only “P0300.”
Common Causes of Misfires
- Worn, fouled, damaged, or incorrectly specified spark plugs
- Weak ignition coils, damaged boots, poor terminals, or wiring faults
- Restricted, leaking, or electrically faulty fuel injectors
- Low or incorrect fuel pressure or contaminated fuel
- Unmetered-air leaks or an incorrect air-fuel mixture
- Low compression from valve, piston, ring, head-gasket, or cylinder damage
- Incorrect valve timing or variable-valve-timing faults
- Coolant or oil entering a combustion chamber
- Control-module power, ground, or communication problems
Symptoms to Watch For
- Rough idle or noticeable shaking
- Hesitation, reduced power, or poor acceleration
- Hard starting or stalling
- Increased fuel consumption
- A fuel smell from the exhaust
- A steady or flashing check-engine light
Warning: If the check-engine light flashes or the engine shakes severely, reduce power and move to a safe location. A flashing malfunction indicator can accompany a misfire severe enough to threaten the catalytic converter. Arrange towing when the truck cannot be driven smoothly and safely.
Diagnostic Steps to Take
- Record the complete DTC. Save any P0300 suffix plus every cylinder-specific and related code before clearing memory.
- Check cylinder-specific and related codes. Fuel-trim, sensor, timing, injector, or voltage codes may reveal a shared cause.
- Review freeze-frame and misfire data. Note whether the problem occurs cold, hot, at idle, under load, or at a particular engine speed.
- Inspect the ignition system. Check plugs, coils, boots, connectors, and wiring. Moving a suspected coil to another cylinder can be useful only when the design and service procedure permit it.
- Evaluate fuel delivery. Test pressure, injector command, electrical operation, and injector balance when appropriate for that powertrain.
- Check for air leaks. Inspect intake and PCV connections and use an approved smoke test when needed.
- Perform mechanical testing. Compression, cylinder-leakage, or timing tests may be necessary if ignition and fuel checks do not explain the fault.
Other Tundra Codes Worth Understanding
P0101: Mass Air Flow Range or Performance
P0101 means the measured airflow is outside the range the control module expects for the operating conditions. Possible causes include a MAF sensor problem, an intake leak, damaged ducting, PCV-system faults, wiring problems, or an engine-performance fault that changes actual airflow. The exact Toyota trouble-area list varies with the engine and model year.
Inspect the entire intake path and PCV connections before replacing the sensor. If cleaning is appropriate for the installed sensor, use only a product intended for MAF elements, avoid touching the sensing element, and compare live data with Toyota specifications.
P0441 and P0455: More Specific EVAP Clues
P0441 indicates incorrect purge flow, while P0455 indicates a large EVAP leak when those generic codes are used by the vehicle. A loose cap may cause an EVAP fault, but it is not the only possibility. A stuck purge valve, damaged hose, failed vent valve, wiring problem, or leaking canister can create similar results.
P3000-xx: Hybrid/EV Battery Control System Codes
Hybrid-equipped third-generation Tundras can store P3000-family DTCs with a failure-type suffix. The suffix is essential. For example, service information can distinguish conditions such as a hybrid/EV battery-control-system voltage fault from an over-temperature condition. The five-character “P3000” stem alone is not enough to decide what failed.
Record the complete P3000-xx code and retrieve all companion hybrid, engine, battery-control, and related information codes with a Toyota-capable diagnostic tool. Diagnosis may involve the hybrid battery, battery cooling, engine operation, hybrid module, wiring, sensors, or another part of the hybrid system depending on the exact code set.
A P3000-family code does not by itself prove that the high-voltage battery pack needs replacement. Follow the exact Toyota diagnostic procedure for the full code and model year.
Warning: High-voltage hybrid components can cause severe injury or death. Do not open the battery case, disconnect orange high-voltage cables, or probe high-voltage circuits without the required Toyota training, protective equipment, and service procedures.
How to Diagnose Toyota Tundra OBD2 Codes Step by Step
- Identify the exact truck. Confirm model year, engine, transmission, drivetrain, and whether it uses the i-FORCE MAX hybrid system before applying a diagnostic procedure.
- Confirm the complaint. Note warning lights, sounds, smells, shifting problems, starting conditions, recent repairs, fuel purchases, towing, water exposure, or battery work.
- Perform a complete scan. Read all accessible modules instead of stopping after the first engine code. Use enhanced Toyota coverage when the problem involves transmission, ABS, body, network, four-wheel-drive, or hybrid systems.
- Save the evidence. Record the complete DTC including any suffix, code status, freeze-frame data, readiness monitors, module voltage, and relevant live data.
- Check basic vehicle condition. Inspect battery terminals, grounds, fuses, connectors, fluid levels, intake ducting, hoses, and visible exhaust damage.
- Research the exact code set. Use the model year, engine, transmission, calibration, complete failure-type code, and companion codes to select the applicable Toyota diagnostic procedure.
- Test before replacing parts. Verify power, ground, signal, pressure, sealing, flow, mechanical condition, or waveform as the procedure requires.
- Repair the root cause. Correct wiring, leaks, mechanical faults, contamination, or failed components identified by testing.
- Verify the repair. Clear erasable memory only after saving the original information, repeat the applicable operating conditions, rescan the truck, and confirm that the relevant monitor completes without returning the fault.
Toyota provides vehicle-specific owner documentation through its Manuals and Warranties portal. Professional factory repair procedures, wiring diagrams, and diagnostic information are available through the Toyota Technical Information System.
[Amazon Products Picked for You]
CEL Doctor: The ANCEL AD310 is one of the best-selling OBD II scanners on the market and is recommended by Scotty Kilmer, a YouTuber and auto mechanic. It can easily determine the cause of the check engine light coming on. After repairing the vehicle's problems, it can quickly read and clear diagnostic trouble codes of emission system, read live data & hard memory data, view freeze frame, I/M monitor readiness and collect vehicle information
Understand Your Check Engine Light – The ANCEL AD410 OBD2 scanner helps everyday drivers quickly read and clear engine-related fault codes, view code definitions, and understand why the check engine light is on before visiting a repair shop. With 42,000+ built-in DTC lookups, this car code reader helps reduce guesswork and makes basic vehicle diagnostics easier for beginners and DIY users
Multi-Functions - Practical Multi-Functions OBD2 code reader features built-in OBD2 DTC lookup library, which help you to determine the cause of the engine light, read code, erase code, view freeze frame, I/M ready, vehicle information, data flow, real-time curve, get vehicle speed information, calculate load value, engine coolant temperature, get engine speed.
Can You Drive With a Tundra OBD2 Code?
The code number alone does not determine whether the truck is safe to drive. Judge urgency from the warning-light behavior, temperature and oil-pressure warnings, drivability, transmission operation, smells, noises, and any hybrid-system message.
| Condition | Recommended Response |
|---|---|
| Steady check-engine light with normal temperature, oil pressure, shifting, and drivability | Read the codes promptly, save the scan data, limit unnecessary heavy towing or high-load driving, and arrange diagnosis. |
| Flashing check-engine light, severe shaking, fuel smell, or major loss of power | Reduce power, move to a safe location, shut the engine off, and arrange towing if smooth operation does not return. |
| Overheating warning, red oil-pressure warning, smoke, or abnormal mechanical noise | Stop as soon as it is safe. These conditions may require immediate shutdown regardless of the OBD2 code. |
| Hybrid-system warning with a P3000-family or other high-voltage-related code | Follow the owner’s manual, avoid touching high-voltage components, record the complete DTC, and obtain qualified hybrid-system diagnosis. |
Preventive Measures for OBD2 Code Issues
You cannot prevent every electrical or mechanical fault, but regular maintenance and early inspection can reduce avoidable problems and help you catch developing faults before they affect other systems.
| Preventive Measure | What to Do |
|---|---|
| Follow Toyota’s maintenance schedule | Service fluids, filters, spark plugs, and other items at the interval specified for your model and operating conditions. |
| Inspect intake and PCV connections | Check clamps, ducts, PCV hoses, and applicable vacuum connections after service or whenever you notice rough running. |
| Maintain the ignition system | Use the correct spark plugs and investigate oil, coolant, or excessive deposits that repeatedly foul them. |
| Protect wiring and connectors | Repair damaged loom, loose terminals, rodent damage, water intrusion, and corrosion before they create intermittent faults. |
| Maintain the fuel cap and EVAP system | Use the correct cap, keep its seal clean, and repair damaged vapor hoses or canister components. |
| Address exhaust leaks and misfires early | Early repair can protect exhaust sensors and catalytic converters from avoidable stress. |
| Maintain the 12-volt electrical system | Weak batteries, loose terminals, poor grounds, or charging problems can contribute to voltage-related or multiple module faults. |
| Use the specified fuel and fluids | Follow the owner’s manual for fuel grade, oil specification, coolant, and transmission-fluid requirements. |
Sources
- SAE J2012 Diagnostic Trouble Code Definitions — current standardized DTC terminology and code framework.
- SAE Standards Supplements — current J2012 digital-annex revision information, including failure-type DTC data.
- California Air Resources Board OBD Program — how OBD systems monitor emissions-related faults and store diagnostic information.
- CARB OBD II Systems Fact Sheet — warning-light urgency, readiness monitors, repairs, and replacement-catalyst guidance.
- CARB OBD Readiness Criteria — permanent DTC behavior and readiness information.
- Toyota Manuals and Warranties — vehicle-specific owner, warranty, and maintenance documentation.
- Toyota Technical Information System — factory repair procedures, wiring diagrams, and model-specific diagnostic information.
- Toyota: All-New 2022 Tundra — third-generation powertrain and 10-speed-transmission information.
Related Guides
Frequently Asked Questions
How do you read a Toyota Tundra OBD2 code?
Connect a compatible scan tool to the diagnostic connector, follow the tool’s ignition instructions, and scan every available module. Record the complete code, including any suffix, whether it is stored, pending, or permanent, and its freeze-frame data. Then look up the code using repair information for your Tundra’s model year, engine, transmission, and calibration.
What is the most common reason for a Toyota check-engine light?
No single cause applies to every Toyota model, year, and engine. EVAP faults, sensor or wiring faults, air-fuel problems, misfires, catalyst-monitor faults, and other powertrain problems can illuminate the light. Read the stored codes and scan data before assuming the cause.
How do you interpret a Toyota engine code?
Start with the complete code and official description. Then use companion codes, freeze-frame data, live readings, symptoms, and Toyota’s model-specific diagnostic procedure to identify the actual cause. Do not replace a part simply because its name appears in the code description.
Why does a Tundra trouble code sometimes include -00, -16, or another suffix?
The suffix can identify additional failure-type information attached to the main five-character DTC. Newer Toyota diagnostic information may use codes such as P0171-00 or P3000-16. Record the full code because different suffixes can lead to different definitions, suspected areas, and test procedures.
Can you clear a Tundra code and wait to see whether it returns?
Record the codes, status, freeze-frame data, and readiness information first. Clearing memory before diagnosis can erase evidence and reset readiness monitors. After documenting and repairing the fault, clearing erasable codes can be part of repair verification, but it does not correct the underlying problem. Permanent DTCs clear only after the control system verifies that the fault has been corrected.
Can a basic OBD2 reader display every Tundra code?
Not necessarily. A basic reader usually focuses on generic emissions-related powertrain codes. Transmission, ABS, airbag, body, network, four-wheel-drive, and hybrid modules may require enhanced Toyota coverage, complete failure-type information, or manufacturer-specific diagnostic functions.
Does P3000 mean the Tundra hybrid battery must be replaced?
No. On a hybrid-equipped Tundra, record the complete P3000-xx code and every companion hybrid, battery, and engine code. Different P3000 failure-type suffixes can indicate different conditions, so battery replacement should not be decided from the P3000 stem alone.
Conclusion
Toyota Tundra OBD2 codes give you a diagnostic starting point, not a parts-replacement answer. First identify the truck’s model year and powertrain, save the complete DTC including any suffix, record freeze-frame and readiness information, and evaluate related codes and live data. Then test the circuit or system using the applicable Toyota procedure. Treat a flashing check-engine light, severe misfire, overheating condition, major drivability problem, or hybrid high-voltage warning as urgent. This model-specific approach helps you correct the root cause instead of guessing at parts.
