Your Tacoma’s factory bed-rail slots are roughly 1″ wide by 1.5″ high. They sit inside a C-channel that controls accessory fit and sealing. You’ll want fittings that match that profile rather than drilling the composite rail. OEM cleats and many T-nuts or Unistrut-style fittings work, as long as their dimensions and non-reactive faces align with the slot and channel depth. Verify inner width, depth, and shape before buying to guarantee secure, adjustable mounts. Below you’ll find exact measuring steps and fit tips.
Quick Answer
- Each 3rd-gen Tacoma (2016–2023) bed-rail slot measures about 1 inch wide by 1.5 inches high.
- The slots sit inside a C-channel that controls how accessories mount, slide, and seal.
- OEM cleats are the easiest fit. T-nuts and Unistrut fittings also work if their profiles match the slot dimensions.
- Do not drill into the composite bed. Use the factory rail slots and OEM mounting points instead.
- Always measure slot width, depth, and C-channel profile before buying any accessory.
Tacoma Bed-Rail Slot Measurements (3rd-Gen 2016–2023)
On the 3rd-gen Toyota Tacoma (2016–2023), the bed-rail slots are sized and spaced to accept both OEM and many aftermarket accessories without modification. Each slot measures about 1 inch wide by 1.5 inches high, a precise dimension that takes the guesswork out of fitting tie-downs and cargo gear.
The consistent spacing along each bed rail gives you repeatable, adjustable anchor points for arranging loads however you want. Don’t drill into the composite bed rail. That will weaken the system and limit your ability to reconfigure gear reliably.
Instead, use components designed for the deck rail system. OEM pieces are engineered to slide in and lock securely, so you can mount, change, or remove accessories quickly. With accurate slot measurements and standardized spacing, you get a setup that’s secure, adaptable, and ready for any load configuration. You can find the official Toyota Deck Rail System parts through Toyota’s accessories catalog.
Which Fittings Fit the Bed-Rail Slots: T-Nuts, Unistrut, OEM Cleats
Because the Tacoma’s bed-rail slots are precisely sized, you can use OEM cleats with confidence. T-nuts and Unistrut fittings often work too, as long as their profiles match the slot dimensions and accessory design. Just verify measurements and material compatibility before installing.
The goal is to customize without weakening the composite bed. OEM cleats eliminate guesswork. T-nuts and Unistrut offer flexibility if sized correctly. Check thickness, head profile, and contact surface material.
- Measure slot width and depth precisely. Only install T-nuts that match those dimensions.
- Prefer fittings with non-reactive faces to avoid damaging the composite bed rail.
- Use Unistrut only when its cross-section clears the slot and the accessory clamps securely.
- When in doubt, choose OEM cleats or OEM-compatible fittings to preserve strength and full adjustability.
[Amazon Products Picked for You]
Over time the original factory truck bed tie-down anchors come with the vehicle will worn out and fail. This APPERFiT cargo deck rail tiedown cleat replacement kit is thoughtfully desinged to guarantee an exact match with the genuine oem dimensions and specifications. These bed striker luggage holders are made from high-quality material, designed to withstand daily and maintain its appearance and functionality in the demanding conditions often encountered by pickups trucks.
Bed cleat tie down anchor compatible with 2005-2024 Tacoma 2007-2024 Tundra,only applicable to trucks equipped with deck track systems，please carefully check if the vehicle model matches the OE number before purchasing

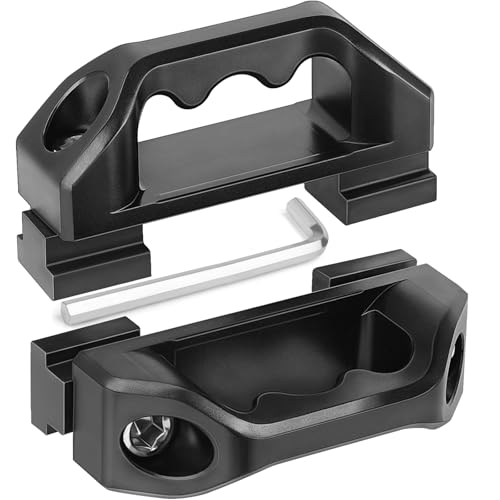

PERFECT FIT: Truck bed tie down anchors are specifically designed for 2005-2026 Toyota Tacoma & 2022-2026 Toyota Tundra/Tundra HV with factory bed rail (Note: Not fits for non-OEM tracks, tonneau cover rails, non-OEM T/C-channel rails, bed racks, aftermarket T-slot rails, etc), replace part number: PT278-35160, PT278-35050-S1, PT278-35100-S1, PT278-35111, PT278-35112, PT785-35050-S1, essential pickup truck bed accessories for Toyota Tacoma/Tundra owners
Why the Deck-Rail C-Channel Matters for Accessory Fit
After confirming which fittings match the bed-rail slots, turn your attention to the deck-rail C-channel. This channel governs how accessories sit, move, and seal against the rail. OEM accessories are made for that profile, so you won’t spend time chasing compatibility problems. When parts align, tie-downs sit tight, loads stay secure, and seals shed water instead of pooling.
| Function | Benefit | Risk if Wrong |
|---|---|---|
| Adjustable tie-points | Versatility for varied cargo | Shifting loads, damage |
| OEM fit | Guaranteed compatibility | Misfit, leaks |
| Structural mount | Strength and stability | Compromised bed integrity |
Check fit before purchase. Use OEM cleats when possible. They match channel geometry and deliver rated strength. You want equipment that works reliably, not fiddly compromises that limit where and how you go.
Drilling, Composite Beds, and OEM Mounting Best Practices
When you’re mounting gear on a Tacoma with a composite bed, don’t drill into the bed itself. Use the factory rail slots and OEM mounting points so you don’t weaken the structure or void warranties. The C-channel deck-rail gives you adjustable, secure tie-points and predictable sealing when you pick accessories made for that profile.
Follow these steps to protect function and warranty while keeping things simple:
- Verify that the accessory design matches the deck-rail C-channel profile. Avoid universal parts that force drilling.
- Use OEM mounting locations and hardware to preserve strength and guarantee proper sealing against water intrusion.
- If a vendor suggests drilling, decline. Drilling composite beds can introduce stress points and leak paths.
- Choose accessories that clamp or bolt to the factory slots so you maintain adjustability, reliable tie-downs, and easy removal.
[Amazon Products Picked for You]
T slot nuts and hex head bolts are made of excellent strength and rust resistance metal.
Perfect Fit for Toyota Tacoma & Tundra - Tacoma tie down anchors specifically designed for 2005‑2025 Tacoma , 2022‑2025 Tundra / Tundra HV with factory‑installed Utili‑Track system
Perfect Fit for Toyota Tacoma & Tundra - Tacoma tie down anchors specifically designed for 2005‑2025 Tacoma , 2022‑2025 Tundra / Tundra HV with factory‑installed Utili‑Track system
4th-Gen Tacoma (2024+): What’s Different?
The 4th-gen Tacoma, which started with the 2024 model year, keeps a composite bed and a deck-rail system. However, the overall bed dimensions have changed slightly compared to the 3rd gen. For example, the bed width on the 4th gen is about 44.7 inches, wider than the 3rd gen’s roughly 42.5 inches between the wheel wells. If you’re shopping for aftermarket accessories, make sure you’re matching parts to your specific generation. Rail slot profiles may also differ, so always confirm dimensions before purchasing.
Quick Compatibility Checklist and Measuring Steps Before You Buy
Want to be sure an accessory will fit your 3rd-Gen Tacoma? Start with a focused checklist and precise measurements so you avoid guesswork. Measure the width and depth of the bed rail slots and note the C-channel profile of the deck rail system. Confirm accessory specs against those measurements. Prefer OEM or explicitly compatible accessories. For universal parts, verify mounting options match the Tacoma’s unique slots to avoid damage.
| Item to Check | Measurement to Take | Pass/Fail |
|---|---|---|
| Slot width | Inner width of bed rail slot (mm) | |
| Slot depth | Depth from slot lip to channel base (mm) | |
| C-channel profile | Shape and clearance | |
| Accessory spec | Manufacturer slot dimensions | |
| Mounting style | Bolt/clip compatibility |
Follow this checklist before you buy. You’ll save time, protect your truck, and keep your build functional.
[Amazon Products Picked for You]
AMERICAN OWNED, FAMILY BUSINESS - Our Number One Goal is to Ensure your Complete Satisfaction
What you get: 6 x T-slot nut; 6 x button head socket cap screw 3/8"-16 and 1 x wrench; Specification: T-slot nut thread 3/8"-16; Base size 1-1/4" L x 7/8" W x 5/16" H; Protruding size: 1-1/4 "L x 9/16" W x 5/16 "H; Total height 5/8"; Before purchasing, please measure the size of your bed rails to ensure it is approximately the same size as the product
Over time the original factory truck bed tie-down anchors come with the vehicle will worn out and fail. This APPERFiT cargo deck rail tiedown cleat replacement kit is thoughtfully desinged to guarantee an exact match with the genuine oem dimensions and specifications. These bed striker luggage holders are made from high-quality material, designed to withstand daily and maintain its appearance and functionality in the demanding conditions often encountered by pickups trucks.
Related Guides
Frequently Asked Questions
What Are the Measurements of a Toyota Tacoma Bed?
For the 3rd-gen Tacoma (2016–2023), the short bed is about 60.5″ long and the long bed is about 73.7″ long. Width between the wheel wells is roughly 42.5″, and bed depth is around 19.1″. These measurements are useful for planning truck bed accessories, bed rail installation, and custom cargo setups. You can verify these dimensions against a detailed 3rd-gen Tacoma bed measurement guide.
How to Measure Truck Bed Rails?
Run a tape measure from front to back along the rail. Check the slot width and height, note any curves, and record the dimensions. Accurate measurements help you find bed rail accessories and cargo management fittings that actually fit.
What Year Was the Worst Year for Toyota Tacoma?
Many owners and reviewers point to 2016 as the worst year for the Toyota Tacoma. That first year of the 3rd generation saw a spike in reliability complaints and lower consumer satisfaction ratings compared to other model years.
What Is the OE Track System?
The OE track system is Toyota’s integrated bed rail that provides adjustable tie-downs and secure mounting. It offers straightforward installation and confident compatibility with Tacoma accessories for hassle-free cargo control.
Conclusion
You’ve got the measurements and mounting types covered, so you’ll know what fits and what won’t before you buy or drill. Treat the deck-rail C-channel like a roadmap: it tells you where accessories will sit and which fasteners, whether T-nuts, Unistrut fittings, or OEM cleats, will work. With the right measurements and attention to composite beds or OEM reinforcements, installation is straightforward. It’s like fitting puzzle pieces together, saving time and preventing costly mistakes.
