A leaking Toyota Tacoma differential or axle seal should be diagnosed before any parts are removed. Gear oil near a rear wheel can point to a rear axle seal, oil around the driveshaft flange can indicate a pinion seal, and wetness around the fill plug, drain plug, or housing can come from a different leak entirely. These repairs do not use one universal procedure across every Tacoma model year.
This guide focuses mainly on diagnosing a rear differential leak and planning a rear axle-seal replacement. Use the factory repair information for your exact model year, drivetrain, axle, and brake system for removal steps, seal depth, torque values, fluid specifications, and brake procedures. Toyota introduced standard front-and-rear disc brakes with the 2024 Tacoma generation, so older drum-brake procedures should not be applied unchanged to newer trucks.
Last updated: September 22, 2026 — repair scope, parts-fitment guidance, brake-layout differences, source links, and schema were rechecked.
Quick Answer
To replace a Toyota Tacoma rear axle seal, first confirm that the leak is actually coming from the axle seal rather than the pinion seal, drain or fill plug, housing joint, front differential, or differential breather. Support the truck safely, follow the model-year repair procedure to remove the required brake and axle components, inspect the bearing and sealing surface, install the correct seal squarely, reassemble the brakes, bleed the hydraulic system if a brake line was opened, refill with the specified gear oil, and recheck for leaks. A pinion-seal repair is a separate job because incorrect flange or pinion-nut work can affect bearing preload.
Key Takeaways
- Do not assume every Tacoma uses the same seal, O-ring, bearing, differential oil, brake layout, or torque specification. Confirm everything by VIN, model year, axle, and drivetrain.
- A rear axle seal leak can put gear oil on brake friction material. Inspect the brakes before driving and replace contaminated friction parts when required.
- A clogged differential breather can contribute to repeat seal leakage, so inspect the vent before replacing a seal without checking the cause.
- Toyota introduced standard front-and-rear disc brakes with the 2024 Tacoma generation; older rear-drum procedures are not universal.
- Pinion-seal replacement is different from rear axle-seal replacement because the pinion nut, flange, bearing spacer, and bearing preload may be involved.
- If a hydraulic brake line is disconnected during axle removal, bleed the brake system and verify a firm pedal before the truck moves.
At a Glance
| Time Required | Several hours for a straightforward rear axle-seal job; substantially longer if bearings, retainers, rusted hardware, brake hydraulics, ABS components, or press work are involved. |
| Difficulty | Moderate to advanced. Use a professional shop if the repair requires pinion-preload work, bearing or retainer press work beyond your equipment, damaged brake components, or a procedure you cannot verify. |
| Tools Needed | Floor jack, jack stands, wheel chocks, socket set, torque wrench, drain pan, brake cleaner, seal puller, seal driver, gear-oil pump, correct seal, correct gear oil, and possibly brake tools, a flare-nut wrench, bleeding equipment, a bearing puller, or a press. |
| Cost | Varies by model year, seal location, local labor rate, brake contamination, bearing condition, and whether the axle requires press work. Ask for an itemized quote rather than relying on a universal Tacoma seal-replacement price. |
Why You Should Replace Differential Seals
Differential and axle seals keep lubricant inside the axle or differential assembly while allowing shafts and flanges to rotate. When a seal fails, gear oil can escape and the gears, bearings, or axle components may eventually operate with less lubrication than they need.
Do not ignore fresh gear oil around the axle tube, backing plate, differential housing, pinion flange, drain plug, or fill plug. Toyota maintenance guidance calls for inspecting differential components for leakage and repairing discovered leaks rather than treating fluid loss as normal.
A rear axle-seal leak can also reach brake components near the wheel. On older Tacomas with rear drum brakes, oil may reach the shoes and drum. On newer rear-disc layouts, inspect the pads, rotor, parking-brake components, and surrounding hardware as applicable. Friction material contaminated with gear oil should be evaluated and replaced when required rather than assumed safe after surface cleaning.
Warning: Never crawl under a Tacoma supported only by a floor jack. Use wheel chocks, level ground, approved lift points, and properly rated jack stands before removing wheels, brakes, or axle parts.
How Do You Confirm Which Tacoma Seal Is Leaking?
Do not replace a differential seal until you know where the oil starts. Gear oil can spread across the axle housing while the truck moves, so the wettest area is not always the original leak point.
Clean the suspected area, let it dry, then inspect again after a short controlled drive only if the brakes are operating normally and there is no severe fluid loss. Look for the first fresh oil trail rather than the lowest wet spot.
- Rear axle seal leak: Oil appears near the axle flange, backing plate, brake drum, rotor, or inside the rear brake area.
- Rear pinion seal leak: Oil appears where the driveshaft flange enters the front of the rear differential.
- Differential housing or joint leak: Oil follows a housing seam, cover, or third-member joint where applicable.
- Drain or fill plug leak: Oil forms directly around a plug, sealing washer, gasket, or damaged thread.
- Vent-related leak: Leakage appears after pressure builds inside the axle housing because the breather cannot vent normally.
- Front differential or CV-axle seal leak: Oil appears where a front axle shaft enters the front differential. This uses a different repair procedure from the rear axle steps below.
Use the exact repair information for your Tacoma before ordering parts. Toyota’s manuals and warranties page provides model-specific owner information, while Toyota Technical Information System is the factory service-information source for repair procedures.
Check Your Tacoma Generation and Brake Layout
Tacoma hardware changed significantly across generations. Toyota introduced standard four-wheel disc brakes with the redesigned 2024 Tacoma, replacing the rear-drum arrangement used on the preceding generation. Toyota also offers different axle, locker, suspension, and powertrain configurations, so a teardown sequence written for an older Tacoma should not be assumed correct for a newer truck.
Before removing the wheel, identify the model year, 2WD or 4WD configuration, rear axle type, brake layout, ABS hardware, and whether the truck has a factory rear locker. Toyota’s 2024 Tacoma technical overview documents the move to four-wheel disc brakes on the new generation.
What Causes Toyota Tacoma Differential Seal Leaks?
Differential seal leaks usually involve age, heat, shaft movement, housing pressure, installation errors, or damage at the surface where the seal rides. Finding the cause matters because a new seal can leak again if the axle shaft, bearing, breather, or sealing surface still has a problem.
Worn Out Seals
Seal material can harden with age and heat. Once the sealing lip loses flexibility or develops damage, it may no longer hold lubricant against a rotating axle shaft or flange.
High mileage, dirt, water exposure, heat, and repeated heavy-use cycles can contribute to wear. Abrasive debris around the sealing lip can also damage the surface the seal rides against.
Can a Bent Axle or Loose Bearing Cause a Repeat Leak?
Yes. A bent axle shaft can wobble as it turns, preventing the seal lip from maintaining even contact. A worn or loose bearing can create similar movement and may cause a replacement seal to fail again.
Check for shaft or bearing problems if the truck has suffered an impact near the wheel, severe off-road use, abnormal wheel movement, bearing noise, or repeated leakage on the same side.
Can a Clogged Differential Breather Cause an Axle-Seal Leak?
Yes. The axle housing must accommodate pressure changes as the differential heats and cools. A breather restricted by mud, rust, or debris can contribute to pressure buildup and force lubricant past a weak sealing point.
Before replacing a rear axle seal, locate the breather specified for your axle and inspect it using the applicable repair information. Clean or replace a restricted breather as required so the underlying pressure problem is not left in place.
Incorrect Installation or Damaged Sealing Surfaces
A seal installed crooked, at the wrong depth, or into a damaged bore can leak immediately. Careless prying during removal can also gouge the metal surface where the replacement seal must seat.
Inspect the axle shaft, retainer, or flange surface where the seal lip runs. A groove, burr, corrosion, pitting, or abnormal shaft movement can prevent a new seal from working correctly.
Wrong Fluid Level or Old Plug Washers
An incorrect fluid level can contribute to leakage or poor lubrication. A leaking drain or fill plug can also be mistaken for a failed axle or pinion seal because gear oil spreads across the housing while driving.
Refill only to the level specified for the exact Tacoma configuration, and replace plug washers or gaskets when the service information requires them.
Tools and Parts Needed for Differential Seal Replacement
Gather the correct tools and parts before opening the axle. Requirements depend on model year, 2WD or 4WD layout, axle type, brake system, ABS equipment, and which seal is leaking.
Do not order a seal, O-ring, bearing, retainer, or gasket from a generic Tacoma parts list. Confirm each component by VIN and vehicle configuration through a Toyota dealer or the official Toyota parts site, then compare the result with the factory repair procedure before disassembly.
- Safety tools: Wheel chocks, floor jack, jack stands, eye protection, gloves, and a suitable drain pan.
- Removal tools: Correct sockets, breaker bar, brake tools as applicable, seal puller, and brake cleaner.
- Installation tools: Correct seal driver, soft-faced or rubber mallet where appropriate, calibrated torque wrench, and gear-oil pump.
- Brake-service tools if required: Flare-nut wrench, line cap or plug, approved brake fluid, bleeding equipment, and the tools required for the specific drum or disc system.
- Possible specialty tools: Rear axle-bearing puller, hydraulic press, retainer or tone-ring tools, or professional press service when the axle assembly requires them.
- Parts and supplies: VIN-confirmed seal and related one-time-use parts, new plug washers or gaskets when specified, and the correct differential lubricant.
Note: Do not assume one gear-oil viscosity or capacity applies to every Tacoma. Toyota specifications vary by generation and configuration. Use the viscosity, performance specification, capacity, and fill-level procedure listed for your exact model year and drivetrain.
[Amazon Products Picked for You]

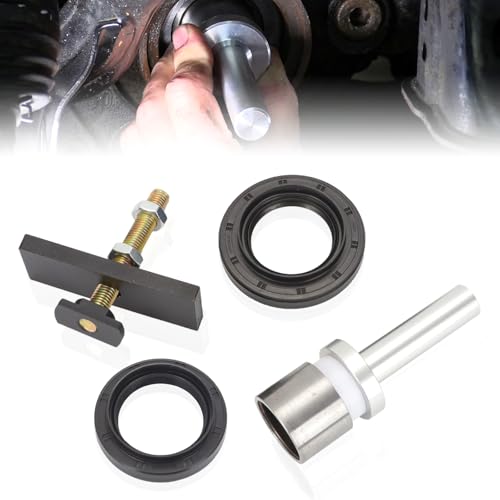

Vehicle Fitment: This differential seal fit for Toyota 1984-2002 4runner, for 1969-1995 Pickup Truck, for 1993-1998 T100, for 1995-2004 Tacoma, for 2000-2006 Tundra; for Base, Limited, SR5, Pre S-Runner, One-Ton, Turbo; for 4x4 2WD 4WD 4 Wheel Drive Model
Compatible With: This Rear Wheel Axle Seal kit is designed for Toyota 4Runner (1984-2002), Pickup (1979-1995), T100 (1993-1998), Tacoma (1995-2004), and Tundra (2000-2006), ensuring compatibility across a range of popular Toyota models.

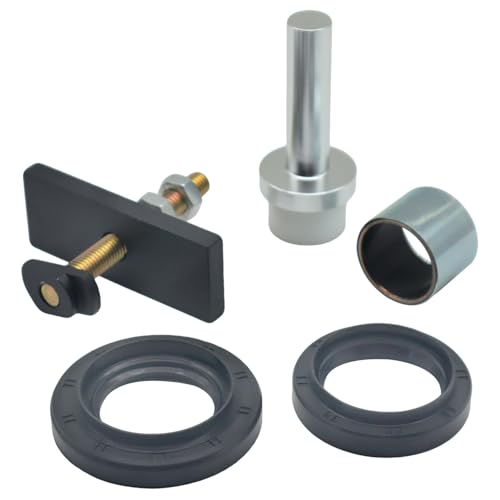

FOR TOYOTA 8" DIFFERENTIAL: Engineered specifically for 2003-2018 4Runner 2005-2018 Tacoma 2007-2014 FJ Cruiser with 8" clamshell front CV axle - no guesswork required.
How Do You Replace a Toyota Tacoma Rear Axle Seal?
The steps below are a planning sequence for a rear axle-seal repair, not a universal factory teardown procedure. Your Tacoma may require different brake, ABS, bearing, retainer, parking-brake, or axle-shaft work. If the leak is at the pinion seal, use the separate guidance in the next section before loosening the driveshaft flange or pinion nut.
- Identify the exact leak. Clean the housing and determine whether the oil begins at the rear axle seal, pinion seal, fill or drain plug, housing joint, front differential, or breather area.
- Confirm the vehicle and parts. Record the model year, VIN, drivetrain, axle type, rear-locker equipment, brake layout, and applicable Toyota repair procedure before ordering parts.
- Park safely and prepare the truck. Park on level ground, chock the wheels that will remain on the ground, and loosen wheel fasteners only as the service procedure allows. Use the parking brake during initial setup when appropriate, then release it after the truck is securely supported if brake or axle removal requires the parking brake to be off.
- Lift and support the Tacoma. Raise the truck at approved lift points and place it securely on properly rated jack stands. Never work under a vehicle supported only by a hydraulic jack.
- Remove the wheel and required brake components. Follow the model-specific procedure for the drum, caliper, rotor, parking-brake hardware, or other components that block axle removal. Support a removed caliper so its hose is not carrying its weight.
- Inspect for brake contamination. Look for gear oil on the friction material and surrounding hardware. Do not assume oil-saturated brake friction material is reusable after cleaning.
- Confirm the differential can be refilled. If the factory procedure calls for draining the differential, make sure the fill plug can be opened before removing the drain plug. Drain the lubricant into a suitable container and inspect it for abnormal contamination.
- Disconnect only the components required for axle removal. Follow the repair manual for ABS wiring, brake hoses or lines, parking-brake cables, retainers, and fasteners. Do not pull on wiring or stretch a hydraulic hose. If a brake line is opened, cap it using an appropriate method and plan to bleed the brake system during reassembly.
- Remove the axle shaft as specified. Pull the axle straight and protect the splines, bearing, seal bore, ABS components, and sealing surfaces. If the assembly binds, stop and confirm that every required fastener, retainer, cable, line, or clip has been released.
- Inspect the axle shaft, bearing, and related retainers. Check for grooves, rust, pitting, abnormal movement, rough bearing operation, or other damage that could cause a replacement seal to leak again.
- Remove the old seal. Use the recommended puller or factory method. Avoid gouging or scratching the housing bore and nearby sealing surfaces.
- Install the replacement seal squarely. Prepare the seal lip exactly as the repair procedure specifies and use the correct driver against the approved portion of the seal. Install it evenly to the specified position or depth rather than assuming that “flush” is correct for every axle.
- Reinstall the axle shaft carefully. Keep the shaft aligned as it passes through the new seal. Do not drag sharp splines or damaged surfaces across the sealing lip.
- Reassemble the axle and brakes. Install required O-rings, gaskets, retainers, clips, sensors, brake hardware, and one-time-use parts. Tighten fasteners to the model-specific torque values.
- Bleed the brakes if the hydraulic system was opened. Use the factory bleeding procedure and approved brake fluid for the exact Tacoma. Continue until the system is free of air and the pedal is firm.
- Refill the differential if it was drained. Use the specified lubricant and fill-level method. Install the correct plug washer or gasket and tighten the plugs to the applicable specification.
- Perform a static safety check. Before moving the truck, press the brake pedal repeatedly and confirm normal firmness. Check for brake-fluid leakage, gear-oil leakage, loose wiring, incorrect cable routing, or hardware left unsecured.
- Test and recheck. Begin with a low-speed brake check in a safe area. Listen for abnormal noise, confirm normal braking, then inspect the repaired seal, brake area, plugs, and housing for fresh fluid.
Pro Tip: Take photos before removing brake hardware, ABS brackets, wiring retainers, and parking-brake cables. They can help you verify routing during reassembly, but they do not replace the factory repair procedure or torque specifications.
[Amazon Products Picked for You]
Toyota Lexus Transfer & Differential Service Gasket Kit
Toyota Lexus Transfer & Differential Service Gasket Kit
Compatible With Toyota Lexus Scion Transfer Case And Differential Service Transfer & Differential Service Gasket Kit
What If the Tacoma Pinion Seal Is Leaking?
A rear pinion-seal leak appears at the front of the rear differential where the driveshaft connects to the pinion flange. Treat this as a separate repair from a rear axle-shaft seal.
Depending on the axle design and factory procedure, pinion-seal work can involve the pinion nut, companion flange, bearing spacer or crush component, bearings, and rotational preload. Incorrect reassembly can create bearing noise, excessive preload, looseness, or premature differential wear.
Do not rely on a generic “mark the nut and tighten it back to the same position” shortcut unless that exact method is supported by the Toyota procedure for your axle. Use Toyota Technical Information System for the model-specific procedure, required special tools, replacement parts, torque steps, and preload checks.
Warning: Stop before loosening the pinion nut if you do not have the exact factory procedure and the tools needed to restore the assembly correctly. Pinion-seal work is a good candidate for a qualified differential or driveline shop when preload measurement or internal bearing work is required.
How to Maintain Your Differential Seals Post-Replacement
After replacing a differential or axle seal, the main goals are to maintain the specified lubricant level, prevent abnormal housing pressure, and catch any repeat leak before it damages bearings or brakes.
Regular Fluid Checks
Recheck the repaired area and differential-fluid level after the initial repair period specified by your service information or sooner if you notice fresh oil. Continue inspecting the differential during normal maintenance and after conditions that can stress the axle, such as heavy towing, off-road use, or water exposure.
Toyota does not use one universal differential-service rule for every Tacoma configuration and operating condition. For maintenance-interval context, see Toyota Tacoma Differential Service Interval Explained. For a dedicated fluid-service procedure, see How to Change Rear Differential Fluid on a Toyota Tacoma.
Use only the lubricant specification listed for your model year, drivetrain, and axle. Do not copy a viscosity, capacity, or friction-modifier recommendation from another Tacoma generation without verifying that it applies to your truck.
Inspect for Leaks
Inspect the backing plate or rear brake area, axle flange, pinion flange, drain plug, fill plug, and differential housing. After cleanup, a successful repair should not produce a new fresh-oil trail.
If oil returns, do not repeatedly top off the differential without finding the cause. Recheck the breather, sealing surface, bearing or shaft movement, seal installation position, plug washers, housing joints, and fluid level.
What Symptoms Should You Watch After the Repair?
Pay attention to new humming, grinding, vibration, a strong gear-oil smell, brake pull, reduced braking, a soft brake pedal, or fresh fluid at the repaired area. These symptoms can indicate a continuing leak, bearing damage, brake contamination, trapped air in a brake circuit, or another axle problem.
If the same seal leaks again soon after replacement, investigate the root cause instead of installing another seal immediately. A damaged sealing surface, bent shaft, loose bearing, blocked breather, wrong part, incorrect installation depth, or unresolved axle damage can cause repeat failure.
What Should You Do If Problems Appear During the Repair?
Seal replacement can become much harder when corrosion, worn bearings, stuck brake parts, damaged threads, or previous repairs are involved. Stop when something does not match the repair procedure rather than forcing parts apart.
| Problem | Likely Cause | What To Do |
|---|---|---|
| Axle shaft will not slide out | Retainer, brake component, rust, cable, sensor, line, or model-specific hardware is still holding it | Stop pulling, recheck the factory procedure, and confirm every required fastener and connection has been released. |
| Old seal is stuck | Hardened seal material or corrosion in the bore | Use the specified seal-removal method or a suitable seal puller. Do not scratch the housing surface where the replacement seal must seat. |
| New seal leaks immediately | Wrong part, incorrect depth, crooked installation, damaged seal lip, damaged shaft, bearing movement, or blocked breather | Stop and inspect the repair. Confirm VIN-specific part fitment, installation position, sealing surface, bearing condition, and breather operation before fitting another seal. |
| Oil appears near the plug, not the seal | Old washer or gasket, loose plug, damaged threads, housing damage, or incorrect fluid level | Repair the actual leak source, use the specified sealing hardware, and tighten the plug to the applicable specification. |
| Gear oil reached the brakes | Axle-seal leak behind or beside the brake assembly | Inspect all friction material and hardware. Replace contaminated shoes, pads, or parking-brake friction parts as required before normal driving. |
| Brake pedal is soft after reassembly | Air entered the hydraulic system, a connection is leaking, or brake components were assembled incorrectly | Do not drive. Inspect for leaks and bleed the brake system using the model-specific procedure until pedal operation is normal. |
| Leak returns after off-road driving | Breather restriction, debris around the seal, shaft or bearing movement, or pressure buildup | Clean the axle housing, inspect the sealing area and bearing, and verify that the differential breather operates as specified. |
[Amazon Products Picked for You]
Compatibility — Compatible With 4Runner 2003-2018 / FJ Cruiser 2007-2014 / Tacoma 2005-2018 with 8" clamshell front CV axle
Compatible with Toyota 4Runner 1984-2002; Tacoma 1995-2004; Tundra 2000-2006; T100 1993-1998; Pickup 1969-1995; Crown 1968-1970
Replace Part Number: Right: 90311-47013; Left: 90311-47027
Frequently Asked Questions
How often should I change the differential fluid on my Toyota Tacoma?
Use the maintenance guide for your exact model year and drivetrain rather than a universal mileage rule. Toyota maintenance requirements can change with operating conditions such as towing, heavy loading, or dirt-road use. A leak is also a reason to inspect the fluid level immediately instead of waiting for a routine interval.
How much does it cost to replace the rear axle seal on a Toyota Tacoma?
The total depends on the Tacoma year, seal location, local labor rate, brake contamination, bearing condition, and whether the axle assembly requires press work. A straightforward seal repair can cost much less than one that also requires bearings, retainers, brake parts, or axle-shaft repair, so get an itemized estimate for the exact truck.
Can I drive with a leaking Tacoma axle seal?
A leaking axle seal should be inspected promptly. Do not drive if gear oil has reached brake friction material, braking has changed, the differential fluid is seriously low, the wheel or axle has abnormal movement, or the leak is heavy. Arrange a tow when safe braking or adequate differential lubrication is uncertain.
Can I replace my rear differential or axle seal myself?
Some rear axle-seal repairs are possible for an experienced DIYer with safe lifting equipment, the correct Toyota procedure, a torque wrench, brake-service tools, and any required seal or bearing tools. Use a professional if the job involves pinion preload, bearing or retainer press work you cannot perform correctly, damaged axle components, uncertain brake procedures, or specifications you cannot verify.
What are the signs of a bad Tacoma axle seal?
Typical signs include fresh gear oil near the axle flange or rear brake area, a strong gear-oil smell, falling differential-fluid level, oil inside a drum or around rear-disc hardware, or braking changes after lubricant reaches friction components. Clean the housing and confirm the first fresh leak point before replacing the seal.
Should I replace both rear axle seals at the same time?
Not automatically. If one side is leaking and the opposite side is dry, the repair decision should be based on the condition of both sides, the truck’s mileage and history, the amount of duplicated labor, and the model-specific parts procedure. Do not replace a good seal merely because a generic guide says seals must always be changed in pairs.
Do oil-soaked brake shoes or pads need replacement after an axle-seal leak?
Friction material contaminated with gear oil should not be assumed safe after surface cleaning. Inspect the brake assembly using the applicable Toyota procedure and replace contaminated shoes, pads, or parking-brake friction material when required. Clean reusable metal friction surfaces only with an appropriate brake-cleaning procedure before reassembly.
Conclusion
A Toyota Tacoma differential-seal leak should be repaired only after the exact source is identified. Rear axle seals, rear pinion seals, fill and drain plugs, housing joints, breathers, and front differential seals require different diagnosis and may require very different repair procedures.
A rear axle-seal repair can be a reasonable DIY job when you have the correct model-year procedure, safe lifting equipment, the required seal and brake tools, and no unexpected bearing or axle damage. Stop and use a qualified shop when the job involves pinion preload, press work you cannot perform correctly, damaged bearings or shafts, unresolved repeat leaks, or brake contamination and hydraulic work beyond your experience.
