How to Replace Toyota RAV4 Dashboard Lights: Bulbs, LEDs and Common Fixes

[VERIFY: Add the real author name and relevant automotive/repair experience before publishing.] · Last updated September 22, 2026 — dashboard-light troubleshooting, fuse guidance, safety wording, and source links rechecked.

Replacing Toyota RAV4 dashboard lights starts with identifying what actually failed. If one switch or backlight is dark and service information for your exact RAV4 shows a replaceable bulb, the repair may be a straightforward bulb-and-socket job. If the whole instrument panel is dark, the digital display is blank, or a safety warning light fails its normal startup check, diagnose the dimmer, fuse, connector, power supply, or cluster system before assuming a bulb has burned out.

How to Replace Toyota RAV4 Dashboard Lights: Identify the Failure First

“Dashboard light” can describe several different parts. Night backlighting for gauges, climate controls, switches, and buttons is not the same as an ABS, brake, oil-pressure, charging, airbag, or other warning indicator. A blank multi-information display or digital instrument cluster is another problem again.

Before removing trim, use the Toyota Manuals and Warranties portal to identify the controls, warning indicators, brightness adjustment, and fuse information for your exact year. If you are trying to identify an illuminated warning symbol rather than replace a backlight, start with Toyota’s warning-light guide or this site’s dashboard warning-light troubleshooting guide.

[VERIFY: If the author has personally replaced a dashboard bulb on a specific RAV4, add the exact model year, component, access point, bulb/socket type, and observed fit here. Do not describe hands-on testing unless it actually occurred.]

Why Working Dashboard Lights Matter

Dashboard illumination helps you read gauges, controls, and vehicle information after dark. Warning lights serve a different purpose: they identify vehicle conditions or system faults that may require attention. Toyota says yellow icons generally identify an important item, while red icons can indicate a condition requiring immediate attention.

Federal Motor Vehicle Safety Standard No. 101 establishes requirements for the location, identification, color, and illumination of specified controls, telltales, and indicators. The goal is to keep them visible and recognizable without unnecessarily distracting the driver.

For that reason, do not treat every dark dashboard symbol as a cosmetic bulb problem. A failed control backlight, failed safety telltale, and blank electronic cluster require different responses.

What Tools Do You Need for a RAV4 Dashboard-Light Repair?

Gather tools only after you know which component you are accessing. The exact fasteners and access method vary by dashboard generation, so the model-specific procedure should decide which tools you use.

Essential Tools Checklist

1. Plastic trim removal tool: Helps release interior clips while reducing the chance of gouging visible trim.
2. Correct screwdriver: Use the type and size specified for the screws in your dashboard procedure.
3. Flashlight: Makes connectors, sockets, clips, and hidden fasteners easier to see.
4. Small container: Keeps screws and clips organized for reassembly.
5. Clean cloth or gloves: Protects trim surfaces and keeps dirt off bulbs and contacts.
6. Exact replacement bulb or serviceable bulb/socket: Buy only after confirming the original part specification or verified fitment for that location.

Safety Preparation

Work in a well-lit area with the vehicle parked securely. Cold interior plastics can be more brittle, so avoid forcing trim that does not release normally.

Turn the ignition and exterior lights off. If the documented repair procedure requires disconnecting the 12-volt battery or unplugging dashboard connectors, follow the battery and SRS precautions for your exact model. Do not assume that disconnecting the battery alone makes every airbag-area repair safe.

When a panel resists, check for a hidden screw, bolt, secondary clip, or a different removal direction instead of applying more force.

Which Fuse Controls Toyota RAV4 Dashboard Lights?

There is no single fuse number or amperage that applies to every RAV4. Use the fuse chart in the owner’s manual for your exact year, powertrain, and market.

As a model-year example, the official U.S. 2004 RAV4 owner’s manual lists a 7.5 A PANEL fuse for instrument-panel lights, gauges and meters, the panel-light control, and other equipment. It separately lists a 7.5 A TAIL fuse that includes the instrument-cluster lights. Those are 2004 examples only; do not use those ratings as instructions for another model year.

Similarly, do not buy a dashboard bulb simply because its base appears to fit. Match the original specification or Toyota service/parts information for that exact component.

How Do You Remove RAV4 Dashboard Trim Without Breaking It?

There is no safe universal trim-removal sequence for every RAV4 generation. Use the procedure for the exact panel, switch, heater control, or combination meter you need to reach.

Tools Required For Removal

Keep a plastic trim tool, the correct screwdriver, flashlight, soft cloth, and fastener container within reach. Avoid using an exposed metal pry tool on visible dashboard surfaces.

Step-by-Step Trim Detachment

1. Park safely: Park on a level surface, set the parking brake, and turn the ignition and exterior lights off.
2. Identify the exact access path: Confirm which trim panel, control assembly, or cluster must be removed for your model year. Do not copy screw counts or panel directions from another RAV4 generation.
3. Follow the electrical safety procedure: If the service procedure calls for battery disconnection, connector removal, or an SRS waiting period, complete those steps before continuing.
4. Remove documented fasteners: Remove only the screws, bolts, clips, or bezels identified for that panel.
5. Release clips gradually: Work around the panel with a plastic trim tool rather than pulling hard from one corner.
6. Disconnect non-SRS connectors correctly: Press the connector lock or tab and pull on the connector body, not the wiring.
7. Protect removed trim: Set panels on a clean cloth so the finish and retaining clips are not scratched or bent.

How Do You Replace a Serviceable RAV4 Dash Bulb?

Use this sequence only after confirming that the failed component has a replaceable bulb or bulb-and-socket assembly. If Toyota service information identifies the light as part of an electronic control, circuit board, display, or combination-meter assembly, do not convert the job into a bulb replacement.

1. Locate the serviceable lamp: Confirm that the dark switch, control, or backlight uses a replaceable bulb/socket.

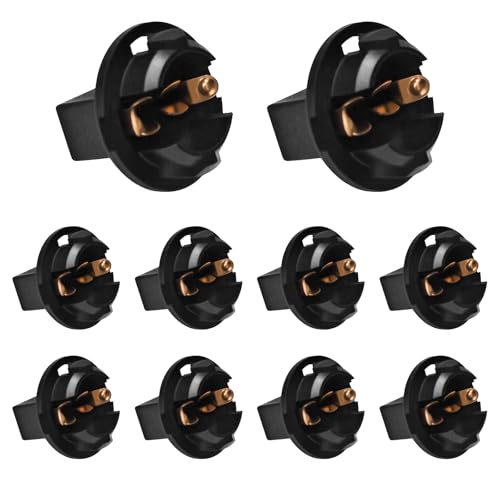

2. Remove the socket as designed: Some serviceable sockets use a twist-lock design; others use a different retention method. Follow the component-specific procedure.
3. Match the replacement: Confirm the original bulb number or verified replacement specification, including base, wattage, voltage, size, and required color.
4. Install the bulb fully: Seat it without bending contacts or forcing the socket.
5. Use LED replacements cautiously: Install an LED only when it is confirmed compatible with that socket and dimmer circuit. Some LEDs are polarity-sensitive and may produce uneven light or incorrect color.
6. Reconnect for testing safely: Make sure every connector that must be connected before power is restored is properly latched. Never restore power with an SRS connector intentionally left disconnected.
7. Test before final reassembly: Check the repaired light, instrument-panel brightness control, and adjacent switches or controls.
8. Reassemble: Turn the vehicle off as required, reinstall the trim in reverse order, and make sure clips and fasteners seat without excessive force.

For safety-related warning indicators, restore the factory-specified function and appearance rather than experimenting with a different color or unusually bright LED. A warning symbol must remain easy to identify and interpret.

What Should You Avoid During Dashboard-Bulb Replacement?

Let illuminated components cool before handling them. Keep bulb contacts, sockets, and circuit surfaces clean, and do not increase bulb wattage to make the dashboard brighter.

A higher-wattage bulb can create more heat than the housing or circuit was designed to handle. If the dash remains dim with the specified lamp installed, check the brightness control, socket condition, power supply, and circuit rather than installing a higher-output incandescent bulb.

During reassembly, make sure ordinary electrical connectors are fully latched and trim clips sit evenly. A partially connected switch or control can create an intermittent lighting problem that looks like another failed bulb.

Why Are My RAV4 Dashboard Lights Not Working?

If a dashboard light remains dark after a bulb replacement—or several lights fail at the same time—stop swapping parts and work through the circuit logically.

1. Check the instrument-panel brightness control: Toyota RAV4 manuals document an adjustable instrument-panel brightness control. Make sure it has not been turned down.
2. Check when the backlighting should operate: Depending on the year and lighting mode, some panel illumination changes with the exterior-light setting or day/night mode.
3. Check the exact fuse: Use the owner’s-manual fuse chart for your RAV4. Do not rely on another model year’s fuse number or amperage.
4. Look at the failure pattern: One dark control points toward a local lamp/socket/connector. Multiple dark controls can point toward a shared lighting circuit or power problem.
5. Check LED polarity only when applicable: If a verified replacement LED is polarity-sensitive, reinstall it in the opposite orientation only when the socket design permits.
6. Inspect the serviceable socket: Look for loose contacts, corrosion, heat damage, or a bulb that is not fully seated.
7. Check connectors: Confirm that any connectors disturbed during the repair are completely latched.
8. Check safety-warning behavior: Toyota warns that safety-system lights such as ABS and SRS not illuminating when they should at startup can indicate that the systems are unavailable. Arrange diagnosis rather than treating that condition as routine backlighting.
9. Treat a blank electronic cluster differently: If the combination meter, digital gauge display, or multi-information display is blank, investigate the specified fuse/power circuit, connectors, cluster/module, and model-specific service information rather than assuming a replaceable bulb is responsible. For related display troubleshooting, see the RAV4 hybrid display guide.
10. Check for an open recall when appropriate: Use the NHTSA VIN recall lookup if an instrument display or safety system behaves abnormally. A recall lookup can identify an unrepaired campaign; it does not diagnose every dashboard fault.

Get professional help if a fuse blows again, multiple dashboard circuits fail together, wiring or a connector shows heat damage, the cluster display remains blank, or an SRS, ABS, brake, charging-system, or other safety warning does not behave as described in the owner’s manual.

Should You Use Incandescent or LED Dashboard Bulbs?

If your RAV4 component actually uses a replaceable lamp, the safest choice is the specified replacement type. An LED retrofit should be used only when its electrical fit, polarity, brightness, color, physical size, and dimmer compatibility are confirmed for that location.

Do not alter a safety-warning indicator in a way that changes its intended color or makes the symbol harder to recognize. Federal vehicle-control and display requirements address the identification, color, visibility, and illumination of specified telltales and indicators.

How Can You Keep RAV4 Dashboard Lights Working Properly?

1. Check the dimmer first: A low brightness setting can look like a lighting failure.
2. Investigate flickering: Flickering can indicate a loose bulb/socket, connector, power, ground, or control problem rather than normal bulb aging.
3. Keep serviceable contacts clean: Corrosion or poor contact can reduce or interrupt illumination.
4. Use the specified bulb: Do not increase wattage to chase more brightness.
5. Correct moisture intrusion: Moisture around an electrical control or display should be traced to its source rather than ignored.
6. Notice abnormal startup checks: If a safety warning lamp does not behave as described in the owner’s manual, diagnose the system.

A dashboard light is useful only when the driver can see it, recognize what it means, and rely on it to operate as designed.

When Should You Call a Professional?

A verified serviceable backlight bulb can be a reasonable DIY repair. Cluster electronics, repeated fuse failures, SRS wiring, communication faults, and multiple dead dashboard circuits are different jobs.

Stop DIY work if you find burnt wiring, melted bulb holders, repeated fuse failure, an entirely blank combination meter or digital display, damaged connectors, or abnormal SRS/ABS/brake warning behavior. Also stop if the dashboard does not match the removal procedure you are following. Forcing the wrong panel or fastener can turn a small lighting problem into a damaged trim, wiring, or safety-system repair.

Frequently Asked Questions

How often should I replace my dashboard lights?

There is no fixed replacement interval for Toyota RAV4 dashboard lights. Investigate a light when it becomes dim, flickers, stops illuminating, or no longer behaves as described in the owner’s manual. First confirm whether the component actually uses a serviceable bulb.

Can I use any bulb type for replacement?

No. Use the specified bulb or a replacement whose base, wattage, voltage, dimensions, color, and electrical compatibility have been confirmed for that exact location. A bulb that merely fits into the socket is not automatically correct.

Can I replace RAV4 dashboard bulbs with LEDs?

Only when the light is a serviceable bulb and the LED is confirmed compatible with the socket and dimmer circuit. LEDs can be polarity-sensitive and may create hot spots, excessive brightness, poor dimming, or the wrong color. Avoid changing the intended appearance of safety-warning telltales.

Which fuse controls Toyota RAV4 dashboard lights?

It depends on model year and circuit. Use the fuse chart for your exact RAV4. For example, the U.S. 2004 owner’s manual lists a 7.5 A PANEL fuse for instrument-panel lighting and a separate 7.5 A TAIL fuse that includes instrument-cluster lights. Do not use those amperages as instructions for a different year.

Will replacing bulbs affect my car’s warranty?

Using a third-party part or independent repair service does not, by itself, automatically void warranty coverage under U.S. federal warranty rules. However, a warrantor can deny coverage for damage caused by an incompatible part or improper repair. Use the correct component and follow the documented repair procedure.

What are the signs of a failing dashboard light?

Possible signs include one dark switch or control, intermittent illumination, flickering, or a backlight that is much dimmer than nearby lighting. If an entire cluster is blank or several circuits fail together, look beyond a single bulb.

Is it safe to drive with a burnt-out dashboard light?

It depends on what failed. A local control backlight may mainly affect nighttime visibility, while a failed safety warning indicator or blank instrument cluster can prevent you from seeing important vehicle information. Follow the owner’s manual and arrange diagnosis when a safety-related warning or display is affected.

Why do my RAV4 dashboard lights still not work after replacing the bulb?

Check the brightness control, exact fuse for your model year, bulb or LED fitment, socket contacts, and any connector disturbed during the repair. If several lights fail together, a replacement fuse blows again, or the electronic cluster remains blank, the fault may be in the shared power circuit, ground, wiring, control module, or combination meter rather than the bulb.

Conclusion

Replacing Toyota RAV4 dashboard lights is a reasonable DIY job only when you have confirmed that the failed component uses a serviceable bulb and you have the correct access procedure for that model year. Start with the failure pattern and brightness control, verify the correct fuse and bulb information, protect the trim and wiring, and test the repair before reassembly.

If an entire cluster or digital display is blank, a fuse fails repeatedly, or an ABS/SRS/brake warning does not behave normally, stop treating the problem as a bulb replacement and move to proper electrical or professional diagnosis.
